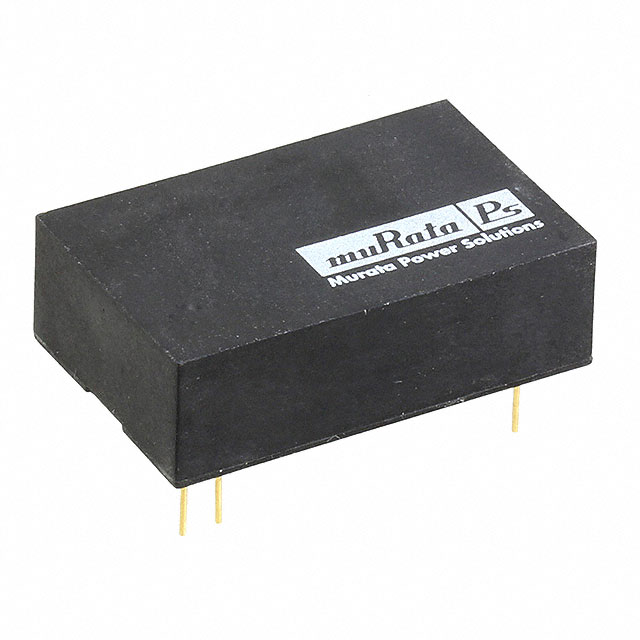

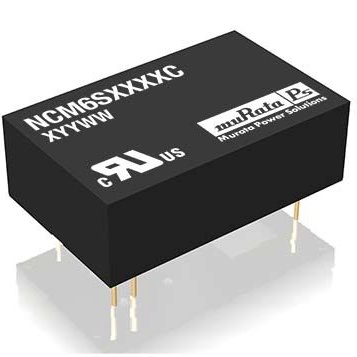

NCM6S0512EC

产品分类: DC-DC稳压器
产品描述: Murata DCDC转换器, NCM6系列, 4.5 → 9 V 直流输入, 12V 直流输出, 6W
供应商型号: NCM6S0512EC
供应商: 国内现货
标准整包数: 1
MURATA MANUFACTURING DC-DC稳压器 NCM6S0512EC

NCM6S0512EC概述

    # Murata Power Solutions NCM6 Series DC-DC Converters
    Product Introduction
    The Murata Power Solutions NCM6 Series represents a cutting-edge line of isolated 6W DC-DC converters, designed for single and dual output voltage applications across wide input voltage ranges. These converters are compact yet highly efficient, featuring robust insulation capabilities and extensive operating temperature ranges. Ideal for demanding environments, the NCM6 Series finds its application in medical devices, telecommunications, battery-powered systems, industrial automation, and distributed power architectures.
    Key features include:
    - Isolated design ensuring safe operation
    - Input voltage ranges from 4.5V to 75V
    - Single and dual output voltages available
    - High efficiency up to 88%
    - Superior thermal management and reliability
    Technical Parameters
    Input Characteristics
    - Voltage Range: 4.5–9V, 9–36V, and 18–75V
    - Under Voltage Lock Out Thresholds:
    - 4.2V for 5V models
    - 6.5V for 12V models
    - 13.7V for 48V models
    - Reflected Ripple Current: 10mA p-p
    Output Characteristics
    - Rated Power: 6W (5V, 12V, 15V outputs), 5W (3.3V output)
    - Voltage Set Point Accuracy: ±2% to ±3% depending on model
    - Line Regulation: 0.1–0.75%
    - Load Regulation: 0.06–1%
    - Transient Response: Peak deviation between 2–10% of output voltage
    General Characteristics
    - Switching Frequency: 300kHz
    - Control Pin Input Voltage: 1.0–3.0V
    - Efficiency vs Load: Ranging from 70% to 88%
    Temperature Characteristics
    - Operating Temperature Range: -40°C to 85°C
    - Storage Temperature Range: -50°C to 125°C
    Isolation Characteristics
    - Isolation Test Voltage: 5.2kVDC
    - Isolation Capacitance: ≥1GΩ @ 1kVDC
    - Safety Standards: UL60950 and ANSI/AAMI ES60601-1 (1 MOPP/2 MOOP)
    Absolute Maximum Ratings
    - Input Voltage: 10V (5V models), 40V (12V models), 80V (48V models)
    - Lead Temperature: 260°C for 10 seconds
    Product Features and Advantages
    The NCM6 Series boasts several unique features that underscore its versatility and market competitiveness:
    - High Efficiency: With efficiencies reaching up to 88%, these converters offer exceptional power conversion.
    - Wide Operating Temperature Range: Reliable performance even under extreme conditions (-40°C to 85°C).
    - Compact Design: Encapsulated for superior thermal management in an industry-standard package.
    - Safety Compliance: Certified to major international safety standards, ensuring compliance with rigorous medical and industrial regulations.
    - Power Density: Achieves 0.94W/cm³, making it ideal for space-constrained applications.
    Application Cases and Usage Recommendations
    The NCM6 Series is suitable for a broad spectrum of applications:
    - Medical Equipment: Devices requiring reinforced insulation and high reliability.
    - Telecommunications: Battery backup systems demanding stable power delivery.
    - Industrial Automation: Distributed power systems in harsh environments.
    Usage Suggestions:
    - Ensure proper grounding and shielding to minimize electromagnetic interference.
    - Use appropriate output capacitors as per the provided guidelines to maintain performance within specifications.
    - Maintain a minimum load of 10% rated load to avoid deviations in output parameters.
    Compatibility and Support
    The NCM6 Series is fully compatible with RoHS-compliant soldering systems, making it environmentally friendly. Murata Power Solutions provides comprehensive support including technical documentation, design assistance, and after-sales service to ensure optimal performance.
    Common Issues and Solutions
    | Problem | Solution |

    | Unstable output voltage | Verify input voltage levels; check external wiring and connections. |
    | Exc

NCM6S0512EC参数

参数
功能 -
最小输出电压 -
开关频率 -
最小输入电压 4.5V
同步整流器 -
拓扑 -
最大输出电压 12V
输出数量 1
输出类型 -
最大输入电压 9V
长*宽*高 32mm*20mm*10.8mm
安装方式 通孔安装
应用等级 医疗级,商用级
零件状态 在售
包装方式 管装
