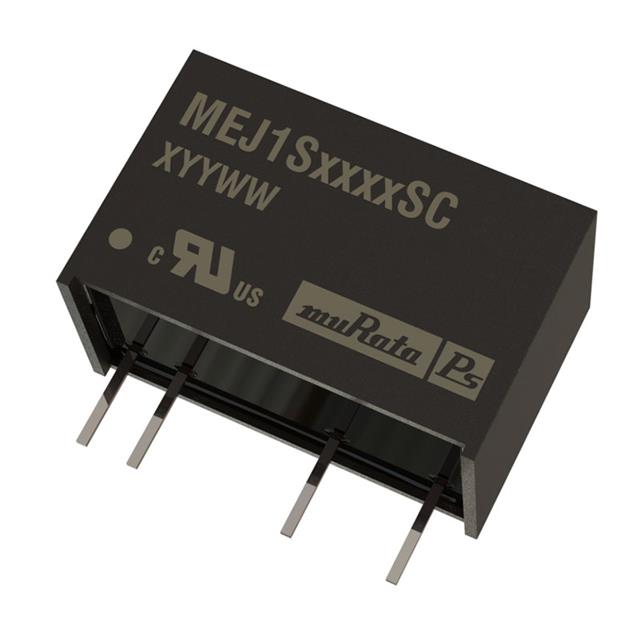

MEJ1S1215SC

产品分类: DC-DC稳压器
产品描述: Murata DCDC转换器, MEJ1系列, 10.8 → 13.2 V 直流输入, 15V 直流输出, 1W
供应商型号: 580-MEJ1S1215SC
供应商: Mouser
标准整包数: 1
MURATA MANUFACTURING DC-DC稳压器 MEJ1S1215SC

MEJ1S1215SC概述

    Product Introduction: MEJ1 Series 5.2kVDC Isolated 1W DC-DC Converters
    The MEJ1 Series by Murata Power Solutions comprises a diverse range of single and dual-output DC-DC converters designed for compact, high-isolation applications. These converters offer nominal powers of 1W, making them ideal for space-constrained environments. They feature isolated power supplies with high insulation performance (5.2kVDC Hi Pot Test), suitable for various industries such as telecommunications, industrial automation, medical electronics, and IoT devices. Their key selling points include high efficiency, low ripple & noise, and compatibility with a wide range of input and output voltages.
    Technical Parameters
    | Parameter | Single Output Models | Dual Output Models |
    |
    | Nominal Input Voltage | 3.3V, 5V, 12V, 15V, 24V | 5V, 12V, 15V, 24V |
    | Output Voltage | 3.3V, 5V, 9V, 12V, 15V | ±3.3V, ±5V, ±9V, ±12V, ±15V |
    | Output Current | Up to 303mA | Up to 151mA |
    | Input Current (Typ) | 260mA-410mA | 55mA-280mA |
    | Load Regulation (Typ) | 1.1%-8.5% | 3.5%-6% |
    | Load Regulation (Max) | 11% | 7% |
    | Ripple & Noise (Typ) | 20mVp-p | 15mVp-p |
    | Ripple & Noise (Max) | 40mVp-p | 40mVp-p |
    | Efficiency (Min) | 66% | 67% |
    | Efficiency (Typ) | 75% | 76% |
    | MTTF (Hours) | 2,333 to 4,511 | 2,440 to 4,840 |
    These converters support a wide range of input voltages (3.3V to 24V) and output voltages, including dual-polarity configurations. Operating temperatures range from -40°C to 85°C, with improved thermal stability under free-air convection.
    Product Features and Advantages
    1. High Isolation Voltage: Certified for 5.2kVDC Hi Pot Test and 7kVDC qualification test, ensuring robust insulation against electric shock.
    2. Miniaturized Design: Packaged in a compact 7-pin SIP (Single In-line Package) style, ideal for applications requiring small form factors.
    3. Wide Operating Range: Supports both single and dual outputs, making it adaptable to multiple use cases.
    4. Enhanced Safety Certifications: Recognised by UL60950 and ANSI/AAMI ES60601-1, ensuring compliance with international safety standards.
    5. Improved Thermal Management: Full encapsulation with toroidal magnetics improves thermal efficiency.
    6. High Common Mode Transient Immunity (CMTI): Greater than 200kV/μS, essential for high-frequency and sensitive applications.
    The combination of high reliability, compact size, and superior safety makes the MEJ1 Series highly competitive in demanding markets like medical devices and industrial automation.
    Application Cases and Use Recommendations
    Application Case 1: Medical Equipment
    The MEJ1 Series is widely used in portable medical equipment due to its UL60950 and ANSI/AAMI ES60601-1 certification. These converters ensure operator protection (MOOP) while meeting the stringent requirements of medical-grade equipment.
    Recommendation: Ensure proper surge protection by integrating external fuses as per the manufacturer's guidelines to maintain device reliability and longevity.
    Application Case 2: Industrial Automation
    In industrial settings, these converters are employed in sensor nodes and control units, where tight tolerances and precise output voltage regulation are critical.

MEJ1S1215SC参数

参数
开关频率 -
输出类型 -
拓扑 -
同步整流器 -
功能 -
最小输入电压 10.8V
最大输入电压 13.2V
最大输出电压 15V
输出数量 1
最小输出电压 -
长*宽*高 19.7mm*10mm*12.7mm
安装方式 通孔安装
应用等级 医疗级,商用级
零件状态 在售
包装方式 管装

MEJ1S1215SC厂商介绍
