UCC2585MTR

产品分类: DC-DC稳压器
厂牌: TEXAS INSTRUMENTS
产品描述:
供应商型号: 25E-UCC2585MTR
供应商: 国内现货
标准整包数: 1

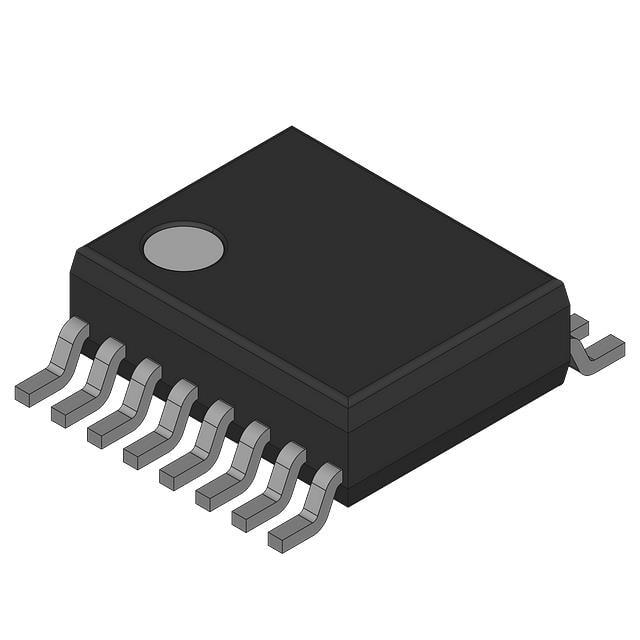

TEXAS INSTRUMENTS DC-DC稳压器 UCC2585MTR

UCC2585MTR概述

    UCC3585 Synchronous Buck Controller: Comprehensive Technical Overview
    Product Introduction
    The UCC3585 is a highly efficient, synchronous buck controller designed to deliver flexible power conversion solutions suitable for output voltages down to 0.9 V with an assured ±1% DC accuracy. This semiconductor device is equipped with advanced features to cater to various applications such as microprocessor core voltage supplies for desktop and notebook computers, DSP core or I/O powering, and high-speed GTL bus regulation. The controller operates within an input voltage range of 3.0 V to 5.5 V, making it ideal for 3.3 V-only, 5.0 V-only, or other low-voltage systems.
    Technical Parameters
    The key technical specifications and performance metrics of the UCC3585 include:
    | Parameter | Typical Value | Min/Max Range |
    |
    | Output Voltage | 0.9 V | 0.9 V – 5.5 V |
    | Input Voltage Range | 3.0 V – 5.5 V
    | Fixed Frequency Oscillator | 420 kHz | 345 kHz – 485 kHz |
    | Efficiency | Up to 90%
    | Logic-Controlled Shutdown | Yes
    | Shutdown Current | 10 µA – 25 µA
    | Supply Voltage (VIN) | 3.3 V / 5.0 V
    The UCC3585 supports dual-level programmable current limiting, adjustable via an external resistor. It also offers lossless current sensing by leveraging the P-channel MOSFET's RDS(on) as a current sense element. Additional features include a soft-start mechanism to avoid output voltage overshoot during startup and a logic-controlled enable pin for precise control.
    Product Features and Advantages
    The standout features of the UCC3585 include its high efficiency switching topology, which ensures minimal power loss. Its ability to drive both P-channel (high-side) and N-channel (low-side) MOSFETs makes it particularly well-suited for buck converters. Key advantages include:
    - Precise output voltage regulation with ±1% accuracy.
    - Enhanced flexibility with programmable current limit thresholds.
    - Built-in soft-start and UVLO (Undervoltage Lockout) mechanisms for robust system protection.
    - Efficient power conversion with support for fixed-frequency PWM up to 500 kHz.
    Application Case Studies and Recommendations
    The UCC3585 excels in numerous practical scenarios:
    1. Desktop and Notebook Computers: The controller provides local microprocessor core voltage power supplies with ultra-low output voltages.
    2. DSP Applications: Ideal for powering the core or I/O sections of Digital Signal Processors.
    3. High-Speed Bus Regulation: Suitable for high-speed GTL buses requiring rapid and accurate voltage regulation.
    Usage Suggestions:
    - Ensure proper grounding and minimize PCB trace impedances to maximize accuracy.
    - Use temperature-stable capacitors for applications requiring high-precision frequency generation.
    - Employ adequate heat sinking when operating under continuous high load conditions to ensure long-term reliability.
    Compatibility and Support
    The UCC3585 is compatible with most standard MOSFETs, offering flexibility in selection based on specific application requirements. Texas Instruments provides extensive support including detailed application notes, software tools, and design guides. Additionally, the device is available in multiple packaging options like DIP, SOIC, and QSOP, catering to diverse implementation needs.
    Common Issues and Solutions
    Here are some frequently encountered problems along with recommended fixes:
    - Problem: Overcurrent conditions triggering false shutdowns.
    Solution: Adjust the RCLSET resistor to increase the current limit threshold or use the built-in counter to tim

UCC2585MTR参数

参数
最大输入电压 -
同步整流器 -
最小输出电压 -
拓扑 -
最大输出电压 -
功能 -
输出类型 -
输出数量 -
最小输入电压 -
开关频率 -
零件状态 在售
包装方式 散装
