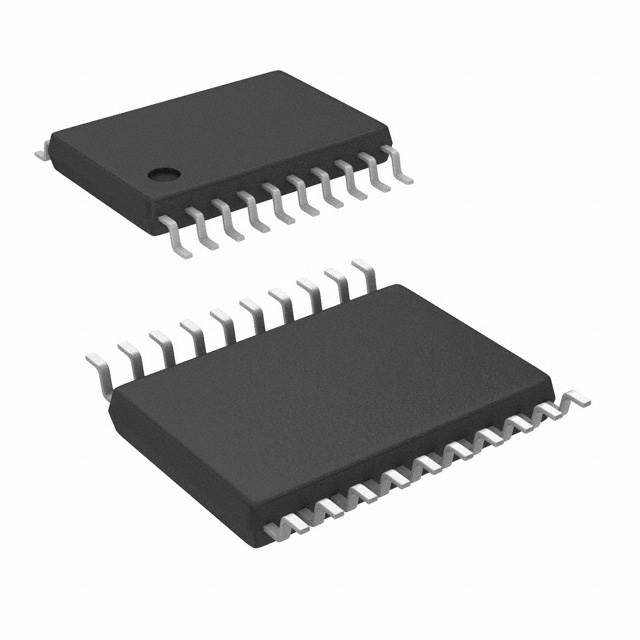

NCP5425DBG

产品分类: 电源管理芯片(PMIC)
厂牌: ON SEMICONDUCTOR
产品描述: 4.6 to 13.2 4.6 to 13.2 SOP 贴片安装
供应商型号: Q-NCP5425DBG
供应商: 期货订购
标准整包数: 1
ON SEMICONDUCTOR 电源管理芯片(PMIC) NCP5425DBG

NCP5425DBG概述

    Product Introduction
    The NCP5425 is a highly flexible dual buck controller with integrated gate drivers, designed to work efficiently with two input power supplies and one or two outputs. It features a feed-forward voltage mode control mechanism and is capable of driving synchronous dual NFET buck regulators. The NCP5425 supports a wide operating voltage range from 4.6V to 13.2V and can handle single two-phase or dual single-phase outputs. It is particularly suitable for applications requiring low voltage outputs with high precision and rapid transient response.
    Technical Parameters
    - Operating Voltage Range: 4.6V to 13.2V
    - Peak Power Drive: 1.5A
    - Switch Frequency: Adjustable between 150kHz to 750kHz
    - Input Undervoltage Lockout: Supports lockout at voltages below 4.2V
    - Overcurrent Protection: Features cycle-by-cycle overcurrent protection with independent programmable current limits
    - Power Supply Sequencing: Can manage power supply sequencing via the COMP pins
    - Package Type: 20-pin TSSOP
    Product Features and Advantages
    The NCP5425 offers several distinct advantages:
    - Configurability: It can operate as either a single two-phase output or two single-phase outputs.
    - Programmability: Offers programmable power sharing and budgeting from two independent supplies.
    - Noise Management: Includes switch blanking for noise-sensitive applications.
    - Compact Design: Available in a compact 20-pin TSSOP package, minimizing PCB area.
    These features make the NCP5425 ideal for applications demanding high efficiency, low noise, and precise control.
    Application Cases and Usage Recommendations
    The NCP5425 is commonly used in DDR memory power systems and graphics cards. For instance, in a typical DDR memory power system, the NCP5425 can be configured to deliver stable and accurate power supplies necessary for optimal memory performance.
    Usage Suggestions:
    - Optimal Component Selection: Ensure that the selected inductors and capacitors align with the recommended specifications to maximize efficiency and minimize EMI.
    - Temperature Consideration: Monitor and manage the operating temperature to prevent thermal issues, leveraging the device's thermal resistance characteristics.
    Compatibility and Support
    The NCP5425 is designed to be compatible with a variety of electronic components, ensuring seamless integration into existing systems. ON Semiconductor provides comprehensive support including datasheets, application notes, and technical assistance to aid in the product's successful implementation.
    Common Issues and Solutions
    1. Problem: Overcurrent situations leading to device shutdown.
    - Solution: Implement robust overcurrent protection circuits and verify that the current limits are set appropriately.
    2. Problem: Unstable output voltage during transient conditions.
    - Solution: Utilize high-frequency and bulk output capacitors to enhance transient response.
    3. Problem: Inadequate noise management.
    - Solution: Employ switch blanking techniques and ensure proper grounding practices.
    Summary and Recommendation
    The NCP5425 stands out due to its versatility, robustness, and efficient design. Its ability to handle complex configurations while maintaining precise control makes it an excellent choice for advanced power management applications. Given its comprehensive features and support, the NCP5425 is highly recommended for developers seeking reliable and high-performance solutions in their designs.

NCP5425DBG参数

参数
最小输出电压 -
应用场景 -
最大工作供电电压 4.6 to 13.2
最小工作供电电压 4.6 to 13.2
工作电源电流 -
最大输出电压 -
6.6mm(Max)
4.5mm(Max)
1.05mm(Max)
通用封装 SOP
安装方式 贴片安装
包装方式 管装
