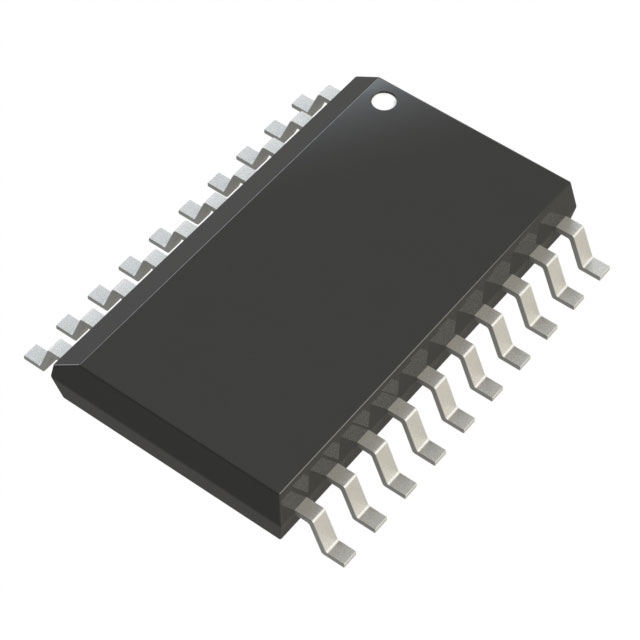

LT1371ISW#PBF

产品分类: DC-DC稳压器
厂牌: ANALOG DEVICES
产品描述: Boost,Buck,Cuk,Flyback,Forward Converter,SEPIC No 500KHz Adjustable 1 35V(Switch) 1.245V 30V 2.7V SO-20 贴片安装
供应商型号: LT1371ISW#PBF
供应商: 期货订购
标准整包数: 1026
ANALOG DEVICES DC-DC稳压器 LT1371ISW#PBF

LT1371ISW#PBF概述

    Product Introduction
    The LT1371 is a highly efficient 500kHz monolithic switching regulator capable of delivering up to 3A of output current. Designed to operate across multiple switching configurations such as boost, buck, flyback, forward, inverting, and "Cuk," this device integrates all necessary circuitry including an oscillator, control, and protection circuits. Its compact size and versatility make it ideal for various applications, particularly where space and efficiency are critical.
    Technical Parameters
    The LT1371 features a number of advanced technical parameters:
    - Switch Voltage: Up to 35V (30V for S/S, SHDN, SYNC pin).
    - Quiescent Current: 4mA typical.
    - Switching Frequency: 450kHz to 550kHz (±10% tolerance).
    - Efficiency: Up to 90%.
    - Shutdown Supply Current: 12µA typical.
    - Operational Temperature Range: 0°C to 125°C.
    - Minimum Supply Voltage: 2.7V.
    Other notable parameters include the ability to regulate both positive and negative outputs, a current-limited power switch rated at 3A, and easy synchronization to external logic-level sources.
    Product Features and Advantages
    The LT1371 excels in several areas:
    - High Efficiency: Offers superior efficiency compared to earlier models, with minimal quiescent current consumption.
    - Compact Design: Allows the use of smaller inductors (as low as 4.7µH), enabling smaller PCB designs.
    - Flexible Configurations: Supports all major switching topologies, providing adaptability for diverse applications.
    - Advanced Protection Mechanisms: Includes unique error amplifier circuitry to mitigate overshoot during startup and overload recovery, ensuring long-term reliability.
    Application Cases and Usage Suggestions
    Common applications for the LT1371 include:
    - Boost Regulators: Ideal for powering devices requiring higher voltage outputs from lower input sources, such as laptop computers.
    - Multiple Output Flyback Supplies: Suitable for multi-output power supplies where precise regulation is essential.
    - Inverting Supplies: Useful for creating inverted voltage outputs from positive inputs.
    Usage suggestions include optimizing component selection to match specific requirements, ensuring proper filtering and layout to minimize EMI, and considering synchronization options when dealing with multiple regulators.
    Compatibility and Support
    The LT1371 is designed for compatibility with standard surface mount components, making integration straightforward. Linear Technology Corporation provides comprehensive documentation, including detailed schematics and performance data, along with extensive support through their technical team.
    Common Issues and Solutions
    Some common user challenges and solutions include:
    - Overshoot During Startup: Adjusting the compensation network connected to the VC pin can help reduce overshoot.
    - Undervoltage Lockout: Ensure the input voltage stays above the threshold to avoid entering undervoltage lockout mode.
    - Noise and EMI: Use proper grounding techniques and add filters to reduce interference.
    Conclusion and Recommendation
    Overall, the LT1371 stands out due to its high efficiency, flexibility, and robust protection mechanisms, making it a top choice for designers looking to optimize power management solutions. Its broad temperature range, low minimum voltage operation, and minimal current draw further enhance its appeal. Highly recommended for projects demanding reliable, efficient, and space-saving power solutions.

LT1371ISW#PBF参数

参数
输出数量 1
功能 Step-Down,Step-Up,Step-Up/Step-Down
拓扑 Boost,Buck,Cuk,Flyback,Forward Converter,SEPIC
最大输出电压 35V(Switch)
开关频率 500KHz
最大输入电压 30V
最小输出电压 1.245V
输出类型 Adjustable
同步整流器 No
最小输入电压 2.7V
13.01mm(Max)
7.6mm(Max)
2.34mm(Max)
通用封装 SO-20
安装方式 贴片安装
应用等级 工业级
零件状态 在售
包装方式 管装
