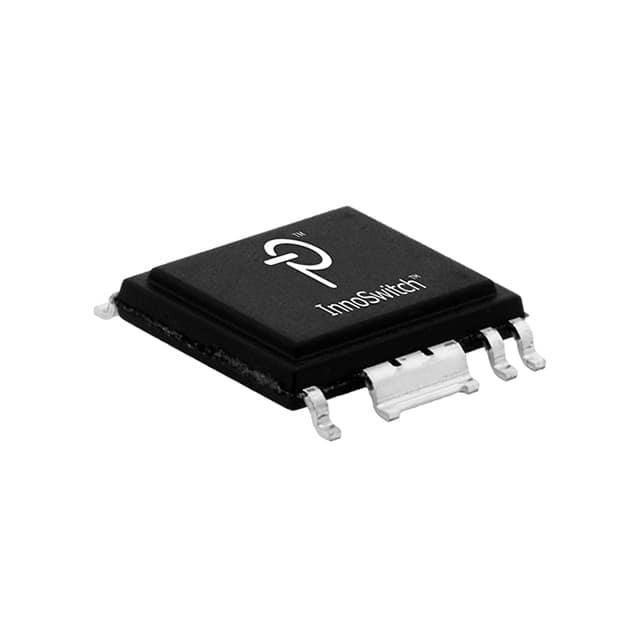

INN2023K

产品分类: AC-DC稳压器
厂牌: POWER INTEGRATIONS
产品描述: 反激,次级侧 SR 100KHz 12W 隔离 Yes 超温,过压 60% 650V 贴片安装
供应商型号: MIK-INN2023K
供应商: 海外现货
标准整包数: 1
POWER INTEGRATIONS AC-DC稳压器 INN2023K

INN2023K概述

    InnoSwitch-CH Family: Revolutionizing Power Supply Design
    1. Product Introduction
    The InnoSwitch-CH family of ICs from Power Integrations is a game-changer in the realm of off-line CV/CC flyback switcher solutions. These ICs integrate a comprehensive suite of functionalities, including a flyback controller, 650V MOSFET, secondary-side sensing, and synchronous rectification driver, all within a single package. Designed to meet stringent energy efficiency standards, they are ideal for applications ranging from smart mobile device chargers to high-efficiency power supplies.
    2. Technical Parameters
    - Power Handling: The InnoSwitch-CH family supports output powers ranging from 12W to 25W, making it versatile for various power supply needs.
    - Input Voltage Range: Operates with input voltages between 85VAC and 265VAC, ensuring compatibility with global mains supplies.
    - Efficiency: Achieves no-load power consumption of less than 10mW when powered by a transformer bias winding, significantly reducing standby losses.
    - Safety Features: Offers advanced protection mechanisms such as primary sensed output OVP, secondary sensed output overshoot clamp, and hysteretic thermal shutdown, enhancing reliability and safety.
    - Isolation Voltage: Exceeds 3,500VAC, ensuring reinforced insulation and full compliance with international safety standards like UL1577 and TUV.
    3. Product Features and Advantages
    The InnoSwitch-CH family stands out due to its exceptional integration level and eco-friendly design:
    - Compact Design: Combines multiple critical components into a single IC, reducing PCB space and component count.
    - Energy Efficiency: Adheres to global energy efficiency regulations, ensuring compliance with modern standards.
    - Thermal Management: Features a hysteretic thermal shutdown mechanism that prevents overheating, extending product lifespan.
    4. Application Case Studies and Usage Recommendations
    The InnoSwitch-CH family excels in scenarios requiring high efficiency and compact form factors:
    - Smart Mobile Device Charging: Ideal for designing chargers with enhanced efficiency and minimal standby power consumption.
    - Industrial Power Supplies: Suitable for industrial applications demanding high reliability and stringent safety standards.
    Usage Suggestions:
    - Implement output voltage monitoring to prevent voltage spikes.
    - Utilize the FluxLink communication link for robust feedback and synchronization between primary and secondary sides.
    5. Compatibility and Support
    The InnoSwitch-CH series is designed to be compatible with a wide range of electronic systems and adheres to industry standards. Power Integrations offers extensive support through documentation, technical forums, and customer service to assist in integrating these ICs into new designs.
    6. Common Issues and Solutions
    | Issue | Solution |

    | High no-load power consumption | Use an external resistor to power the IC externally. |
    | Overheating | Ensure proper thermal management with adequate heatsinking. |
    7. Conclusion and Recommendation
    The InnoSwitch-CH family represents a leap forward in power supply design, offering unparalleled integration, efficiency, and safety features. Its ability to handle complex requirements while maintaining simplicity makes it highly recommended for both new development projects and upgrades of existing systems. For designers aiming to create efficient, reliable, and cost-effective power solutions, the InnoSwitch-CH family is an excellent choice.

INN2023K参数

参数
拓扑 反激,次级侧 SR
电压 - 电源(Vcc/Vdd) -
最小输出电压 -
最大输入电压 -
功率 12W
输出电流 -
内部开关 Yes
最大输出电压 -
隔离 隔离
击穿电压 650V
故障保护 超温,过压
占空比 60%
最小输入电压 -
开关频率 100KHz
安装方式 贴片安装
零件状态 在售
包装方式 管装
