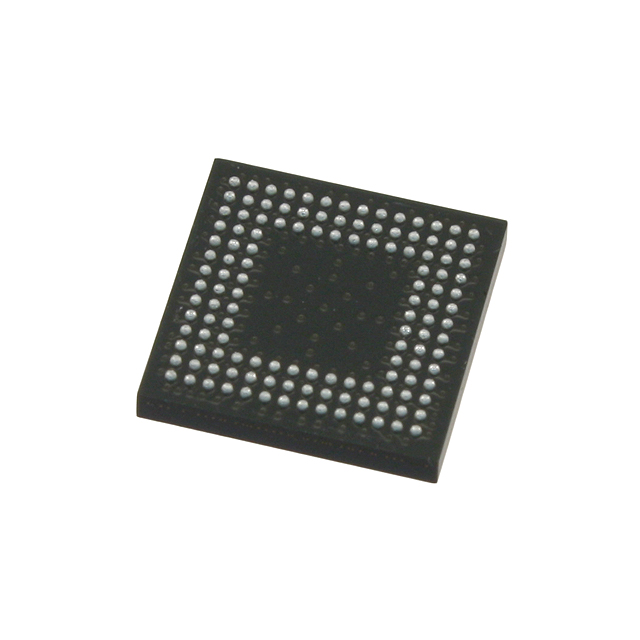

LCMXO2-640HC-4MG132I

产品分类: 可编程逻辑器件(PLD)
产品描述: 系统内可编程 2.375V 7.82ns 3.465V BGA 贴片安装 8mm(长度)*8mm(宽度)
供应商型号: LCMXO2-640HC-4MG132I
供应商: 国内现货
标准整包数: 1
LATTICE SEMICONDUCTOR 可编程逻辑器件(PLD) LCMXO2-640HC-4MG132I

LCMXO2-640HC-4MG132I概述

    # MachXO2™ Family FPGA Data Sheet Overview
    Product Introduction
    The MachXO2™ family of Field Programmable Gate Arrays (FPGAs) offers a comprehensive suite of features designed for ultra-low power consumption and immediate-on functionality. These devices come in six distinct configurations, offering LUT counts ranging from 256 to 6864 and IO pin counts from 18 to 334. They cater to applications across a broad spectrum including consumer electronics, embedded systems, and industrial automation.
    Key functionalities include a flexible logic architecture supporting varying densities, embedded and distributed memory options, on-chip flash memory, pre-engineered source-synchronous I/O support, and robust clocking solutions. Their unique attributes make them ideal for applications requiring customizable logic, precise control over power consumption, and ease of reconfiguration.
    Technical Parameters
    General Specifications:
    - LUT Sizes: 256, 640, 1280, 2112, 4320, 6864.
    - Distributed RAM (kbits): 2 to 54 kbits.
    - Embedded Block RAM (EBR) Size (kbits): 0 to 240 kbits.
    - User Flash Memory (UFM) Size (kbits): 0 to 256 kbits.
    - Number of PLLs: 0 to 2.
    - Operating Voltage: 1.2V or 3.3V depending on device type.
    Electrical Characteristics:
    - Standby Power Consumption: As low as 22µW.
    - Clock Frequency: Up to 400 MHz input frequency for PLLs.
    - I/O Standards: Supports LVCMOS, LVTTL, PCI, LVDS, RSDS, SSTL, HSTL, among others.
    Environmental Conditions:
    - Temperature Range: Typically -40°C to +85°C.
    - Humidity Range: Up to 85% non-condensing.
    Product Features and Advantages
    The MachXO2™ series stands out due to its ultra-low power consumption, high flexibility, and non-volatility, enabling "instant-on" capabilities essential for real-time systems. Its pre-engineered I/O logic simplifies interfacing with various standards like DDR, DDR2, and LPDDR, while advanced configuration options allow for secure firmware updates.
    Another critical advantage is the presence of hardwired peripherals such as timers/counters, SPI controllers, and I²C interfaces, reducing the need for additional components and thus minimizing board space and cost. Furthermore, the ability to migrate densities within the same package enhances scalability without redesigning hardware.
    Application Cases and Usage Tips
    Applications span across diverse fields such as consumer products, medical devices, automotive infotainment, and home automation. For instance, in home security systems, MachXO2™ devices can handle complex state machine operations with minimal latency. Similarly, in medical monitoring equipment, they ensure reliable and efficient data processing under stringent conditions.
    Practical advice includes ensuring proper thermal management during implementation to maintain optimal performance. Additionally, leveraging vendor-provided development kits can significantly reduce prototyping time and facilitate seamless integration into final designs.
    Compatibility and Support
    MachXO2™ devices exhibit strong compatibility with third-party tools and libraries, facilitating smooth integration into existing workflows. Lattice Semiconductor provides extensive documentation and support services, including software tools like ispLEVER Classic and Diamond, aiding both beginners and seasoned engineers alike. The company also offers technical assistance and training programs to enhance user proficiency.
    Common Issues and Solutions
    Frequent challenges faced by users might include incorrect pin assignments leading to functional failures or misconfigured PLL settings causing unstable system behavior. Appropriate remedies involve thorough review of pin configuration files and meticulous calibration procedures for PLLs. Regular updates to software tools should also be maintained to benefit from bug fixes and new features.
    Summary and Recommendation
    Overall, the MachXO

LCMXO2-640HC-4MG132I参数

参数
可编程类型 系统内可编程
宏单元数 -
最大传输延迟时间 7.82ns
最大工作供电电压 3.465V
最小工作供电电压 2.375V
长*宽*高 8mm(长度)*8mm(宽度)
通用封装 BGA
安装方式 贴片安装
应用等级 工业级
零件状态 在售
包装方式 托盘
