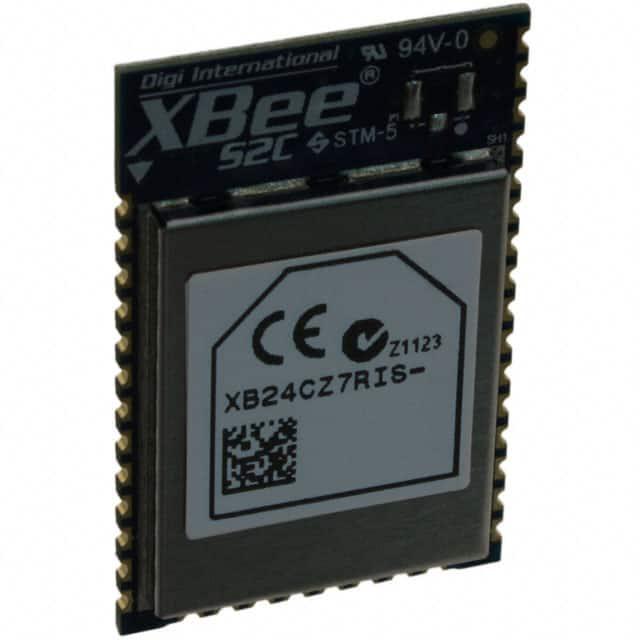

XB24CZ7RIS-004

产品分类: 射频模块
厂牌: DIGI INTERNATIONAL
产品描述: DSSS 28mA~45mA 33mA~59mA 1Mbps -100dBm 2.1V Antenna Not Included EM357 SMD 贴片安装 22mm*34mm*3mm
供应商型号: 602-1194-ND
供应商: Digi-Key
标准整包数: 1
DIGI INTERNATIONAL 射频模块 XB24CZ7RIS-004

XB24CZ7RIS-004概述

    XBee/XBee-PRO S2C 802.15.4 RF Module: A Comprehensive Technical Overview
    Product Introduction
    The XBee/XBee-PRO S2C 802.15.4 RF Module is a versatile embedded solution designed to facilitate wireless connectivity in various IoT and industrial applications. These modules leverage the IEEE 802.15.4 networking protocol, enabling efficient point-to-multipoint or peer-to-peer communication. The XBee S2C series targets high-throughput applications requiring low-latency, predictable communication timing. With two primary footprints—through-hole (TH) and surface-mount (SMT)—it offers flexibility in deployment, from prototyping to high-volume manufacturing.
    The modules are tailored for low-cost, low-power wireless sensor networks. They operate within the ISM 2.4 GHz frequency band, ensuring compatibility across different global regions. The S2C hardware and Silicon Labs EM357 chipset underpin its robust functionality.
    Technical Parameters
    Below are the key technical specifications of the XBee/XBee-PRO S2C 802.15.4 RF Module:
    | Specification | XBee | XBee-PRO |
    |
    | Supply Voltage | 2.1 – 3.6 V | 2.7 – 3.6 V |
    | Transmit Current (Typ.) | 45 mA (8 dBm) | 120 mA (18 dBm) |
    | Idle/Receive Current (Typ.) | 31 mA | 31 mA |
    | Power-Down Current | <1 µA | <1 µA |
    | Indoor/Urban Range | Up to 200 ft (60 m) | Up to 300 ft (90 m) |
    | Outdoor RF Line-of-Sight Range| Up to 4000 ft (1200 m) | Up to 2 miles (3200 m) |
    | RF Data Rate | 250,000 b/s | 250,000 b/s |
    Additional parameters include:
    - Operating Temperature: -40°C to 85°C (Industrial)
    - UART Interface Data Rate: 1200 b/s to 250,000 b/s
    - SPI Data Rate: Up to 5 Mb/s (burst)
    These modules offer programmable RF transmit power levels ranging from 0 dBm to 18 dBm, with enhanced performance in the XBee-PRO variant.
    Product Features and Advantages
    1. Flexibility in Footprint: Available in TH and SMT formats, supporting prototyping and large-scale production.
    2. Low Power Consumption: Minimal power draw during idle and sleep modes, ideal for battery-powered devices.
    3. High Data Throughput: Capable of handling up to 96,000 b/s of data throughput.
    4. Wide Operating Frequency Band: Supports global ISM bands, ensuring compatibility in diverse geographical locations.
    5. IEEE 802.15.4 Compliance: Ensures interoperability with other Zigbee devices.
    Application Case Studies and Usage Recommendations
    XBee/XBee-PRO S2C 802.15.4 RF Modules excel in a variety of applications, including:
    - Wireless Sensor Networks: Ideal for monitoring environmental conditions like temperature, humidity, and air quality.
    - Industrial Automation: Used for remote equipment monitoring and control.
    - Home Automation: Facilitates smart lighting and thermostat systems.
    Usage Suggestions:
    - Optimize the antenna selection based on application requirements—PCB antennas for compact designs, whip/dipole antennas for long-range applications.
    - Ensure proper shielding and grounding to minimize interference in dense environments.
    Compatibility and Support
    These modules are compatible with various serial interfaces (UART, SPI), making integration straightforward. Digi provides extensive support, including firmware updates, comprehensive documentation, and technical assistance via their support portal. Additionally, the XBee library facilitates rapid integration with popular platforms.
    Common Issues and Solutions
    | Issue | Solution |

    | Poor signal strength | Increase transmit power level; optimize antenna placement. |
    | Connection instability | Verify baud rates and ensure p

XB24CZ7RIS-004参数

参数
功耗 -
发射功率 -
频段 -
芯片平台 EM357
接收电流 28mA~45mA
发射电流 33mA~59mA
数据速率 1Mbps
调制方式 DSSS
工作电压 2.1V
灵敏度 -100dBm
天线形式 Antenna Not Included
长*宽*高 22mm*34mm*3mm
通用封装 SMD
安装方式 贴片安装
零件状态 新设计不推荐
包装方式 托盘

XB24CZ7RIS-004厂商介绍
