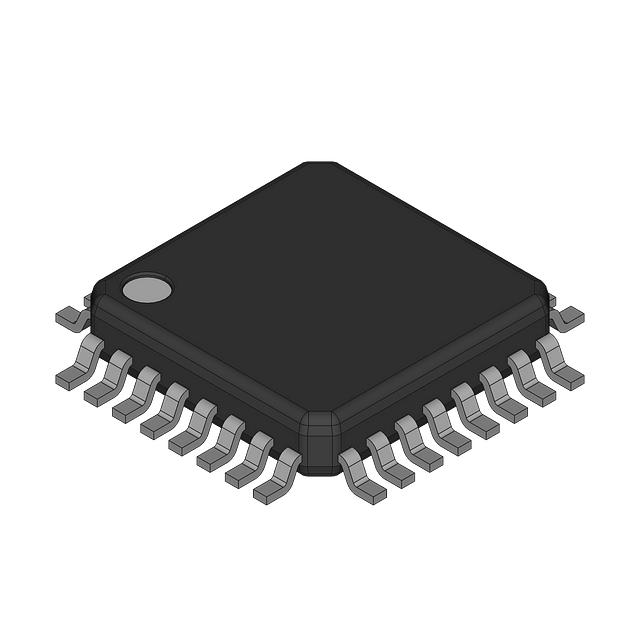

MC9S08SV16CLC

产品分类: 微控制器(MCU)
厂牌: NXP SEMICONDUCTORS
产品描述: 2.7V~5.5V 40MHz 1KB FLASH 16KB LVD,POR,PWM,WDT 内部 30 2.7V 5.5V 40MHz I2C,LINbus,SCI,SPI 8bit S08 QFP 贴片安装 7mm*7mm*1.4mm
供应商型号: QNF-MC9S08SV16CLC
供应商: NXP直供
标准整包数: 1250
NXP SEMICONDUCTORS 微控制器(MCU) MC9S08SV16CLC

MC9S08SV16CLC概述

    # MC9S08SV16 8-Bit Microcontroller Technical Overview
    Product Introduction
    The MC9S08SV16 is an advanced 8-bit microcontroller from Freescale Semiconductor designed for applications requiring robust performance, low-power consumption, and diverse peripheral integration. It is a key component in the MC9S08SV16 series, which includes both the MC9S08SV16 and MC9S08SV8 variants. This microcontroller is ideal for applications such as automotive electronics, industrial controls, consumer electronics, and general embedded systems.
    Key Features:
    - CPU: 8-bit HCS08 core supporting up to 40 MHz operation.
    - Memory: Up to 16 KB of flash memory with support for non-volatile data storage, and up to 1024 bytes of RAM.
    - Power Management: Dual low-power stop modes and a reduced power wait mode, offering optimized energy efficiency.
    - Clock Options: Both internal and external clock sources (oscillators or ceramic resonators) ensure flexibility and precision.
    Technical Parameters
    | Parameter | Specification |

    | Voltage Range | 2.7 V to 5.5 V |
    | Operating Temperature | –40 °C to 85 °C |
    | Clock Frequency | Up to 40 MHz |
    | Flash Memory | Up to 16 KB |
    | RAM | Up to 1024 Bytes |
    | Analog Comparator | With internal reference |
    | ADC | 12-channel, 10-bit resolution |
    Product Features and Advantages
    The MC9S08SV16 excels in its ability to deliver high-performance processing alongside comprehensive peripheral integration:
    - Processor Strength: The HCS08 core with enhanced instructions offers superior computational power while maintaining compatibility with existing HC08 software.
    - Peripheral Integration: Rich peripheral set including multiple timers, serial communication interfaces, analog components like ADC and ACMP, and flexible GPIO configurations provide versatility.
    - Security Mechanisms: Built-in security features protect data integrity and device security.
    Application Case Studies and Usage Recommendations
    Application Example: Automotive Dashboard
    The MC9S08SV16 can manage dashboard displays and instrument cluster functionalities. Its multiple timers can handle timing-sensitive tasks such as speedometer updates, while the ADC reads sensor inputs accurately.
    Usage Suggestion: Optimize power modes during periods of low activity to extend battery life.
    Recommendation for Industrial Automation
    This microcontroller can serve as a central controller in simple automation processes, leveraging its compact form factor and low power requirements.
    Optimization Tip: Use peripheral interrupts effectively to minimize CPU overhead and improve responsiveness.
    Compatibility and Support
    The MC9S08SV16 supports a wide range of peripherals and can integrate seamlessly into complex electronic systems. Freescale provides robust documentation and technical support, ensuring ease of integration and maintenance.
    Common Issues and Solutions
    | Issue | Solution |

    | Incorrect Clock Setup | Verify clock settings match intended configuration in the datasheet. |
    | Insufficient Power | Ensure power supply adheres strictly to recommended voltage ranges. |
    | Peripheral Malfunction | Check all pin configurations according to the pin assignment table. |
    Conclusion and Recommendation
    The MC9S08SV16 stands out due to its balance of performance, cost-effectiveness, and feature richness. Its broad application scope makes it suitable for numerous industries. Highly recommended for projects needing reliable performance within constrained environments.

MC9S08SV16CLC参数

参数
I/O数量 30
电压-电源(Vcc/Vdd) 2.7V~5.5V
振荡器类型 内部
最小工作供电电压 2.7V
核心处理器 S08
程序存储器类型 FLASH
程序存储器大小 16KB
最大工作供电电压 5.5V
EEPROM大小 -
接口类型 I2C,LINbus,SCI,SPI
数据总线宽度 8bit
最大时钟频率 40MHz
RAM大小 1KB
数据转换器 -
外设 LVD,POR,PWM,WDT
内核数 -
速度 40MHz
长*宽*高 7mm*7mm*1.4mm
通用封装 QFP
安装方式 贴片安装
包装方式 散装
