首页  >  产品百科  >  812-22-008-30-000101

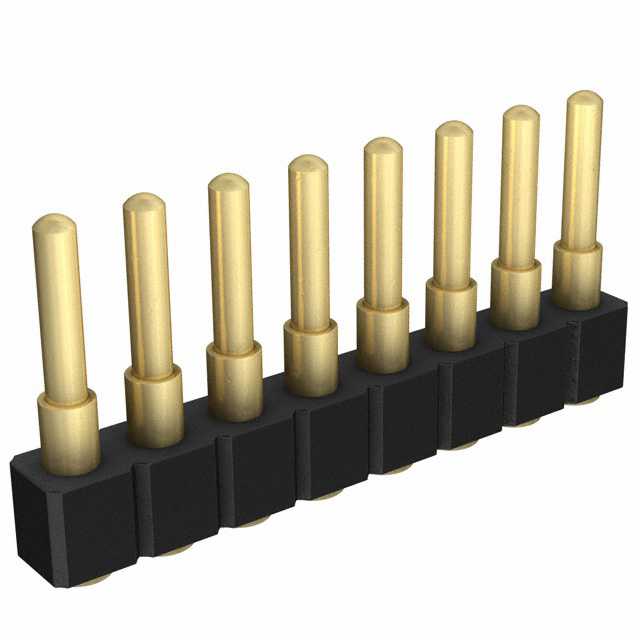

812-22-008-30-000101

产品分类: 矩形连接器 - 外壳
厂牌: MILL-MAX
产品描述: Piston 1 贴片安装 20.32mm(长度)*2.54mm(高度)
供应商型号: ED8187-08-ND
供应商: Digi-Key
标准整包数: 1
MILL-MAX 矩形连接器 - 外壳 812-22-008-30-000101

812-22-008-30-000101概述

    Spring-Loaded Connectors by Mill-Max Mfg. Corp.
    Product Introduction
    Spring-loaded connectors, manufactured by Mill-Max Mfg. Corp., are precision-engineered interconnect solutions that provide reliable electrical connections with high durability. These connectors are widely used in various industries, including telecommunications, consumer electronics, automotive, medical devices, and industrial automation. The series includes single and double row configurations, each with different contact styles and heights, making them suitable for diverse applications requiring robust connectivity under varying conditions.
    Technical Parameters
    The spring-loaded connectors are built with premium materials and adhere to stringent performance standards:
    - Material: Contacts are made from machined copper alloy, plated with 20µ" gold over 100µ" nickel; springs are beryllium copper with 10µ" gold plating.
    - Mechanical Performance: Initial spring force is 25 grams, increasing to 60 grams at mid-stroke (0.0275 inches). They can endure up to 1,000,000 mechanical cycles.
    - Coplanarity: Maximum deviation is 0.005", ensuring excellent alignment for up to 10 pins (single row) and 20 pins (double row).
    - Electrical Characteristics: Voltage rating is 100Vrms/150Vdc, with continuous current rating of 2A and peak current of 3A per contact. Contact resistance is less than 20mΩ, insulation resistance exceeds 10,000MΩ, and dielectric strength is 700Vrms minimum.
    Product Features and Advantages
    The spring-loaded connectors stand out due to their modular design and exceptional reliability:
    - Precision Manufacturing: High-precision machining ensures consistent quality and longevity.
    - Gold Plating: Offers superior conductivity and corrosion resistance.
    - High Durability: Designed to last through one million cycles without degradation.
    - Surface Mount Capability: Suitable for modern PCB assembly processes, ensuring efficient production.
    - Wide Range of Configurations: Available in multiple contact styles and heights, catering to different application needs.
    Application Case Studies and Usage Recommendations
    These connectors excel in environments where frequent connections and disconnections are necessary, such as in consumer electronics, IoT devices, and automotive systems. For instance:
    - In portable electronic devices like tablets or laptops, these connectors enable secure docking stations.
    - In automotive infotainment systems, they facilitate reliable connections between modules.
    - For automated test equipment, their high-cycle life reduces maintenance downtime.
    Usage Tips:
    - Ensure proper alignment during installation to maximize durability.
    - Use appropriate vacuum pick-up clips during automated assembly to prevent damage.
    Compatibility and Support
    The series supports standardized carrier tape packaging, compatible with both 32mm and 44mm tapes. Additionally, Mill-Max offers comprehensive technical support and resources to assist users throughout the design and implementation phases.
    Common Issues and Solutions
    | Problem | Solution |

    | High contact resistance | Verify proper alignment and cleaning of contacts |
    | Decreased spring force | Replace damaged connectors |
    | Misalignment after soldering | Confirm correct footprint design and soldering process |
    Conclusion and Recommendation
    In summary, the spring-loaded connectors by Mill-Max Mfg. Corp. represent an outstanding choice for engineers seeking reliable, high-performance interconnect solutions. Their exceptional durability, versatile configurations, and adherence to industry standards make them ideal for demanding applications. Highly recommended for professionals looking to enhance the robustness and longevity of their designs.

812-22-008-30-000101参数

参数
颜色 -
触头类型 -
紧固类型 -
排数 1
触头端接 -
针脚数 -
类型 Piston
长*宽*高 20.32mm(长度)*2.54mm(高度)
安装方式 贴片安装
零件状态 在售
包装方式 散装

812-22-008-30-000101厂商介绍

MILL-MAX公司是一家全球领先的电子连接器和互连解决方案制造商,专注于为各种行业提供精密的微型连接器和互连系统。公司的产品广泛应用于*事、**、医疗、通信、工业和消费电子等领域。

主营产品分类:
1. 微型连接器:包括圆形、矩形、D-Sub等多种形式,适用于高密度、小尺寸的连接需求。
2. 互连系统:提供定制化的互连解决方案,包括电缆组件、PCB板对板连接等。
3. 定制产品:根据客户需求,设计和制造特定的连接器和互连系统。

应用领域:
MILL-MAX的产品被广泛应用于以下领域:
- *事和**:用于**、导弹、**等设备的高可靠性连接。
- 医疗设备:如医疗成像设备、诊断设备等的精密连接。
- 通信:在通信基站、数据中心等场合提供高速、稳定的连接。
- 工业自动化:用于工业机器人、自动化生产线等的连接。
- 消费电子:如智能手机、平板电脑等设备的微型连接器。

MILL-MAX的优势:
1. 精密制造:采用先进的制造技术和严格的质量控制,确保产品的高精度和可靠性。
2. 定制服务:能够根据客户需求提供定制化的解决方案,满足特定应用的需求。
3. 广泛的产品线:提供多种类型的连接器和互连系统,满足不同行业的需求。
4. 全球服务:在全球范围内设有销售和服务网络,为客户提供便捷的支持。

812-22-008-30-000101数据手册

厂牌 PDF简要描述 下载
MILL-MAX 矩形连接器 - 外壳 MILL-MAX 812-22-008-30-000101 812-22-008-30-000101数据手册

812-22-008-30-000101封装设计

查看详情并下载
Symbol
Footprint
3D Model
价格梯度 中国香港交货 内地交货(含增值税)
1+ $ 8.0892 ¥ 68.3537
10+ $ 5.9727 ¥ 49.4989
25+ $ 5.3897 ¥ 44.6671
50+ $ 4.9953 ¥ 41.3988
100+ $ 4.6372 ¥ 38.4304
250+ $ 4.2143 ¥ 34.9259
500+ $ 3.9291 ¥ 32.5624
1000+ $ 3.671 ¥ 30.423
2500+ $ 3.3671 ¥ 27.905
库存: 2049
起订量: 1 增量: 0
交货地:
最小起订量为:1
合计: ¥ 68.35
