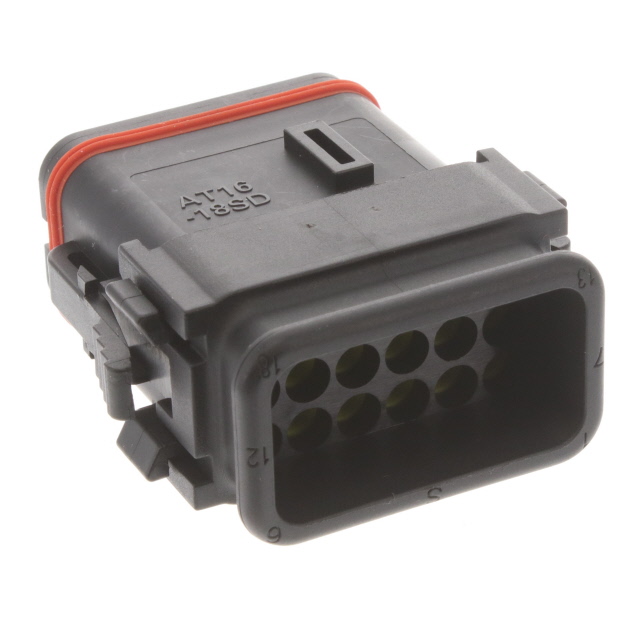

AT16-18SD-SR02

产品分类: 矩形连接器 - 外壳
厂牌: AMPHENOL
产品描述: Latch Lock,Plug 3 18pin Female Socket 压接 黑色 导线安装,自由悬挂,通孔安装
供应商型号: 654-AT16-18SD-SR02
供应商: Mouser
标准整包数: 1
AMPHENOL 矩形连接器 - 外壳 AT16-18SD-SR02

AT16-18SD-SR02概述

    A Series™ - Contact Size 16 Options (Works with: AT, ATV, AHD-9, ARC, DuraMate and PanelMate Series)
    Product Introduction
    The A Series™ from Amphenol Sine Systems is a premium line of electronic connectors and components designed for high-reliability applications across various industries. This series includes a range of machined and stamped/formed contacts, sockets, and pins for sizes 16. These components are meticulously engineered to ensure durability, electrical performance, and mechanical stability, making them ideal for use in harsh environments. The product line is compatible with multiple connector series including AT, ATV, AHD-9, ARC, DuraMate, and PanelMate, providing versatility and broad application coverage.
    Key areas of application include automotive, industrial control systems, aerospace, military equipment, telecommunications, and consumer electronics. Whether you're designing ruggedized interconnects for off-road vehicles or ensuring reliable data transmission in telecom infrastructure, the A Series™ offers tailored solutions to meet your needs.
    Technical Parameters
    Below are the essential technical specifications for the Contact Size 16 options:
    | Parameter | Value |

    | Contact Type | Male/Female |
    | Contact Size | 16 |
    | Wire Gauge Range | 14–22 AWG |
    | Material | Gold-plated, Nickel-plated, Tin-plated |
    | Current Rating | Up to 13 Amps |
    | Operating Temperature | -55°C to +125°C |
    | Insulation Resistance | ≥1000 MΩ @ 25°C |
    | Moisture Protection | IP68, IP69K |
    | Dielectric Withstanding Voltage | ≤1500V AC |
    | Mating Cycles | 100 cycles |
    | Dimensions (mm) | Housing: 35.8 ± 0.5 x 43.8 ± 0.8 |
    Product Features and Advantages
    The A Series™ Contact Size 16 stands out due to its robust construction and advanced features:
    1. Durability: Designed for over 100 mating cycles without degradation.
    2. Temperature Extremes: Operates reliably from -55°C to +125°C.
    3. High Insulation Resistance: Ensures low leakage current and high signal integrity.
    4. Moisture Resistant: Meets IP68/IP69K standards for protection against water ingress.
    5. Customizable Options: Available in gold-plated, nickel-plated, and tin-plated finishes to suit specific requirements.
    6. Wide Compatibility: Compatible with multiple series, offering seamless integration into existing systems.
    7. RoHS Compliance: Environmentally friendly materials.
    These attributes make the A Series™ a top choice for mission-critical applications where reliability and performance are paramount.
    Application Cases and Usage Recommendations
    Application Case 1: Automotive Connectivity
    In modern vehicles, the A Series™ connectors are used to manage complex wiring harnesses under demanding conditions. To optimize performance, it is recommended to:
    - Use reduced diameter seals when working with thinner wires.
    - Ensure crimp tools like AUTK-100 or ATT-16-01 are properly calibrated to maintain contact integrity.
    Application Case 2: Industrial Control Systems
    For industrial machinery, the A Series™ can handle high-power circuits while resisting dust and moisture. Suggestions include:
    - Selecting appropriate strain relief caps based on environmental exposure.
    - Incorporating sealing plugs (e.g., A114017-SR) to enhance water resistance in wet environments.
    Compatibility and Support
    The A Series™ products are fully compatible with the broader Amphenol ecosystem, en

AT16-18SD-SR02参数

参数
针脚数 18pin
类型 Latch Lock,Plug
颜色 黑色
触头类型 Female Socket
紧固类型 -
排数 3
触头端接 压接
安装方式 导线安装,自由悬挂,通孔安装
零件状态 在售
包装方式 盒装
