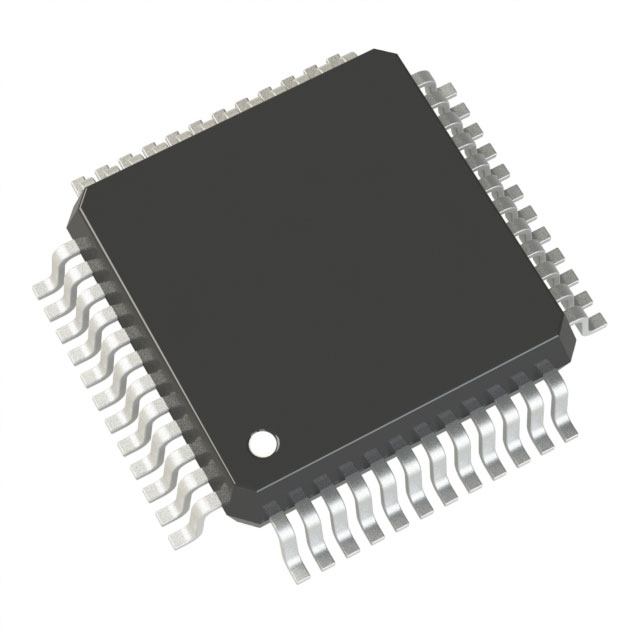

F2800135PTR

产品分类: 微控制器(MCU)
厂牌: TEXAS INSTRUMENTS
产品描述: 2.8V~3.63V 120MHz 1.7734375MB FLASH 128KB Brown-out Detect/Reset,POR,PWM,WDT 内部,外部 25 CANbus,FIFO,I2C,SCI,SPI,UART,USART 32bit C28x 贴片安装,黏合安装
供应商型号: F2800135PTR
供应商: 国内现货
标准整包数: 1000
TEXAS INSTRUMENTS 微控制器(MCU) F2800135PTR

F2800135PTR概述

    Product Introduction: TMS320F280013x Real-Time Microcontrollers
    The TMS320F280013x family of real-time microcontrollers is part of Texas Instruments' C2000™ series, designed specifically for applications requiring ultra-low latency and high-performance signal processing. These microcontrollers are ideal for applications such as motor control, industrial power systems, telecom rectifiers, and appliances, where precision and real-time processing are critical. They are optimized for efficiency in power electronics and offer a robust combination of digital signal processing capabilities, memory, and peripheral integration.
    Technical Parameters
    The following table summarizes the key technical specifications of the TMS320F280013x family:
    | Feature | Value |

    | CPU Core | 120 MHz C28x 32-bit DSP |
    | Floating Point Unit (FPU) | Present |
    | Trigonometric Math Unit (TMU) | Present |
    | On-Chip Flash Memory | Up to 256KB (128KW) |
    | On-Chip RAM | Up to 36KB (18KW) |
    | Memory Protection | ECC/Parity Protection |
    | Operating Voltage | 3.3V |
    | GPIO Pins | 38 individually programmable (11 shared) |
    | ADCs | Two 4-MSPS, 12-bit Analog-to-Digital |
    | Communication Interfaces | I2C (2), CAN (1), SPI (1), UART (3) |
    | PWM Channels | 14 ePWM channels (2 with high-resolution) |
    | Work Temperature Range | –40°C to 125°C |
    Product Features and Advantages
    The TMS320F280013x microcontrollers stand out due to their advanced processing capabilities and integration of essential peripherals. Their 120-MHz C28x core is equivalent to a 240-MHz ARM Cortex-M7 device in terms of real-time signal chain performance, enabling highly efficient computation for demanding applications. Key advantages include:
    - Advanced Processing: Equipped with a floating-point unit (FPU) and trigonometric math unit (TMU), making it suitable for complex mathematical computations.
    - Memory Integration: Large onboard flash and RAM with error correction code (ECC) ensure reliability and data integrity.
    - Real-Time Control: Integrated capture and compare modules allow for precise control of power electronics.
    - Communication Flexibility: Multiple interfaces like I2C, CAN, SPI, and UART provide versatility in system integration.
    Application Cases and Usage Suggestions
    The TMS320F280013x microcontrollers are used across a variety of industries, including but not limited to:
    - Appliances: Outdoor units for air conditioners, robotic lawn mowers, and washer/dryer controls.
    - Industrial Automation: Motor controllers for factory automation, automated sorting equipment, and textile machinery.
    - Power Electronics: Grid-connected solar inverters, AC/DC power supplies, and uninterruptible power supplies (UPS).
    Usage Recommendations:
    For optimal performance, proper attention should be paid to the layout design, especially with regards to power supply decoupling capacitors and minimizing noise interference. Additionally, leveraging the available software tools and libraries can significantly simplify development and reduce time-to-market.
    Compatibility and Support
    The TMS320F280013x microcontrollers are fully compatible with Texas Instruments’ existing product ecosystem. They support various communication protocols, making them easy to integrate into existing systems. Texas Instruments provides comprehensive documentation, software development kits (SDKs), and technical support to help developers maximize the

F2800135PTR参数

参数
电压-电源(Vcc/Vdd) 2.8V~3.63V
最大工作供电电压 -
核心处理器 C28x
速度 120MHz
EEPROM大小 -
程序存储器大小 128KB
RAM大小 1.7734375MB
数据转换器 -
最小工作供电电压 -
内核数 -
程序存储器类型 FLASH
最大时钟频率 -
振荡器类型 内部,外部
I/O数量 25
外设 Brown-out Detect/Reset,POR,PWM,WDT
接口类型 CANbus,FIFO,I2C,SCI,SPI,UART,USART
数据总线宽度 32bit
安装方式 贴片安装,黏合安装
包装方式 卷带包装
