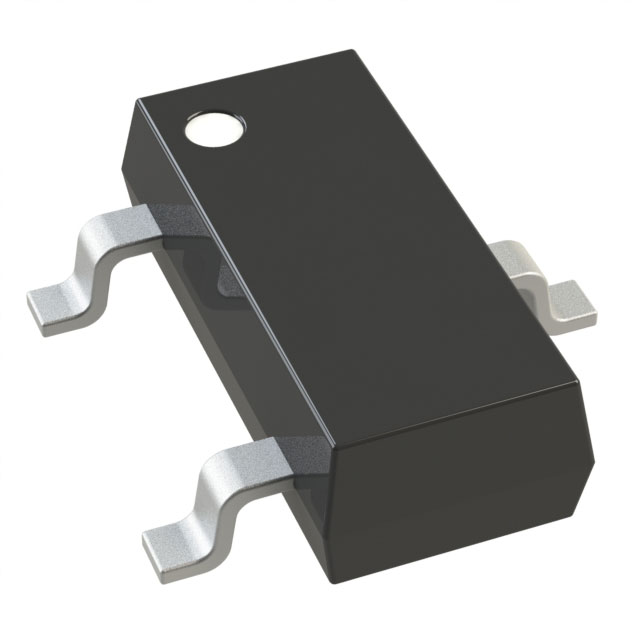

ESD2CAN24DCKRQ1

产品分类: TVS二极管/ESD抑制器
厂牌: TEXAS INSTRUMENTS
产品描述: 24V 210W 5.7A 37V 35.5V SC-70,SOT-323 贴片安装
供应商型号: ESD2CAN24DCKRQ1
供应商: 云汉优选
标准整包数: 1
TEXAS INSTRUMENTS TVS二极管/ESD抑制器 ESD2CAN24DCKRQ1

ESD2CAN24DCKRQ1概述

    # ESD2CANxx24-Q1: A Comprehensive Overview
    Product Introduction
    The ESD2CANxx24-Q1 is a cutting-edge automotive-grade ESD protection diode designed specifically for in-vehicle communication networks. It offers bidirectional ESD protection for two channels, enabling comprehensive protection of critical automotive components such as controllers, sensors, and communication interfaces. This diode supports data rates up to 10 Mbps, making it ideal for applications like CAN, CAN-FD, low fault-tolerant CAN, and high-speed CAN networks.
    Key Features
    - IEC 61000-4-2 Level 4 ESD Protection: Supports contact and air-gap discharges of ±30 kV, ±25 kV, or ±20 kV.
    - ISO 10605 Compliance: Offers robust ESD protection tested according to ISO standards.
    - 24 V Working Voltage: Operates effectively within the typical automotive voltage range.
    - Bidirectional Design: Ensures symmetric protection across two signal lines.
    - Low Clamping Voltage: Protects downstream components with minimal voltage spikes.
    - AEC-Q101 Qualified: Confirms compliance with stringent automotive quality standards.
    - Compact Footprint: Available in SOT-23 and SC-70 packages, facilitating easy integration into PCB designs.
    Technical Parameters
    The following table summarizes the technical specifications of the ESD2CANxx24-Q1:
    | Parameter | Value |

    | Reverse Stand-Off Voltage | ±24 V |
    | Breakdown Voltage (Positive) | 25.5–35.5 V |
    | Breakdown Voltage (Negative) | -35.5 to -25.5 V |
    | Clamping Voltage | 37 V (at 5.7 A, 8/20 μs pulse) |
    | Dynamic Resistance | 0.35 Ω |
    | Line Capacitance | 3 pF (typical) |
    | Operating Temperature Range | -55°C to +150°C |
    | Storage Temperature Range | -65°C to +155°C |
    Product Characteristics and Advantages
    The ESD2CANxx24-Q1 stands out due to its exceptional ESD protection capabilities and compact design:
    - High Robustness: Withstanding severe ESD conditions, it ensures reliable operation in harsh automotive environments.
    - Space Efficiency: The small footprint allows for optimized PCB layout, reducing material costs and improving production efficiency.
    - Wide Temperature Range: Suitable for both extreme cold and hot climates, ensuring consistent performance.
    - Minimal Signal Impact: Low capacitance minimizes signal distortion, preserving data integrity during high-speed transmissions.
    Application Scenarios and Usage Tips
    The ESD2CANxx24-Q1 finds extensive use in modern automotive systems:
    - Automotive Networks: Ideal for protecting CAN bus lines in cars, trucks, and buses.
    - Industrial Control Systems: Applicable in various industrial automation setups requiring high ESD resilience.
    Usage Suggestions:
    1. Ensure proper grounding connections to maximize the effectiveness of the ESD protection.
    2. Optimize PCB layout by placing the diode as close as possible to the protected interface.
    3. Regularly test the system to verify continuous protection levels under varying environmental conditions.
    Compatibility and Support
    This device is compatible with standard automotive and industrial communication protocols. Texas Instruments provides comprehensive documentation and technical support, including software tools and reference designs, aiding engineers in integrating this component efficiently.
    Common Issues and Solutions
    Below are some common problems users might encounter along with their solutions:
    | Problem | Solution |

    | Insufficient ESD Protection | Verify correct placement and orientation of the diode. |
    | Excessive Voltage Spikes | Adjust the PCB layout to reduce parasitic ind

ESD2CAN24DCKRQ1参数

参数
峰值脉冲功率 210W
极性 -
工作电压 24V
箝位电压 37V
击穿电压 35.5V
峰值脉冲电流 5.7A
SC-70,SOT-323
通用封装 SC-70,SOT-323
安装方式 贴片安装
包装方式 卷带包装
