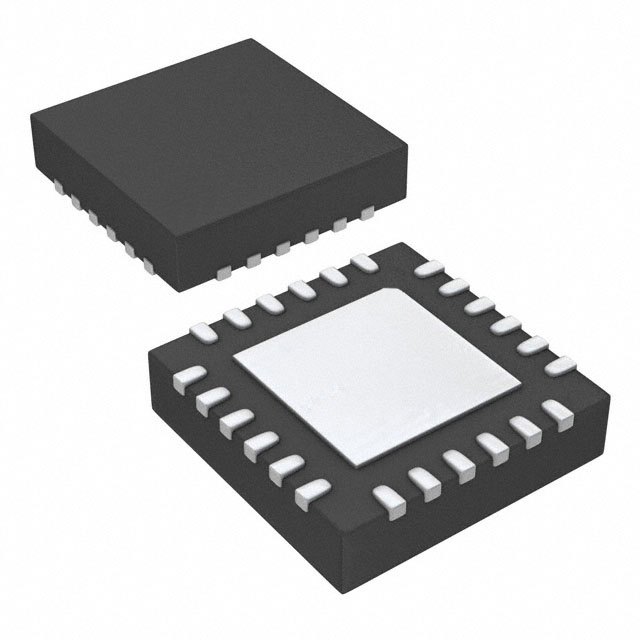

SE2435L-R

产品分类: RF前端
厂牌: SKYWORKS SOLUTIONS
产品描述: 4.8V ISM 2V 860MHz 930MHz QFN-24 贴片安装 4mm(长度)*4mm(宽度)
供应商型号: RF-SE2435L-R
供应商: 海外现货
标准整包数: 3000
SKYWORKS SOLUTIONS RF前端 SE2435L-R

SE2435L-R概述

    SE2435L: 860 to 930 MHz High-Power RF Front-End Module
    Product Introduction
    The SE2435L is a highly integrated front-end module designed specifically for high-power industrial, scientific, and medical (ISM) band applications within the 860 to 930 MHz frequency range. This versatile module is engineered to support the needs of the Internet of Things (IoT), smart meters, in-home appliances, smart thermostats, and various industrial applications. Key features include an integrated power amplifier (PA) with up to +30 dBm output power, an integrated low-noise amplifier (LNA) with programmable bypass, and advanced antenna switching capabilities.
    Technical Parameters
    The SE2435L delivers exceptional performance metrics, including:
    - Output Power: +30 dBm for transmit operations.
    - Noise Figure: 2 dB, ensuring low noise amplification.
    - Integrated Functions: Programmable antenna switching with transmit/receive diversity support.
    - Power Supply Range: Operates efficiently within a supply voltage range of 2.0 to 4.8 V, ideal for battery-powered devices.
    - Power Consumption: Low sleep mode current (<1 μA).
    - Packaging: Comes in a compact 24-pin QFN package (4 × 4 × 0.9 mm).
    Product Features and Advantages
    - Ease of Use: Fully matched 50 Ω inputs and outputs simplify integration into existing designs.
    - Wide Voltage Range: Supports a broad range of supply voltages, enhancing compatibility with various power sources.
    - Fast Turn-On/Off: <1 μs response time ensures quick transitions between operational states.
    - Compact Design: The QFN package reduces board space requirements, making it ideal for space-constrained applications.
    Application Cases and Usage Recommendations
    The SE2435L is ideally suited for IoT-enabled smart devices where reliable and efficient RF communication is essential. For example:
    - Smart Meters: Ensure robust data transmission over long distances.
    - Industrial Automation: Provide stable wireless connectivity for sensors and actuators.
    - Home Appliances: Enhance connectivity and user experience through seamless communication.
    Usage Tips:
    - Ensure that unused ports are properly terminated to prevent signal reflections.
    - Use the provided evaluation board to assess the performance before integrating into a larger system.
    Compatibility and Support
    The SE2435L integrates seamlessly with other electronic components due to its standardized interfaces. Additionally, Skyworks Solutions offers comprehensive technical support and documentation to assist developers in deploying the module effectively.
    Common Issues and Solutions
    | Issue | Solution |

    | Overdriving the PA | Limit input power to -20 dBm to avoid overdriving the amplifier. |
    | Poor performance | Verify all unused ports are terminated with 50 Ω resistors. |
    | Incorrect pin configuration | Refer to the pinout diagram and control logic specifications. |
    Summary and Recommendation
    The SE2435L represents a cutting-edge solution for high-power RF front-end applications in the 860 to 930 MHz band. Its combination of high performance, ease of integration, and robust design makes it an excellent choice for developers working in IoT and industrial sectors. We strongly recommend the SE2435L for projects requiring reliable RF communication, especially in scenarios where power consumption and space are critical considerations.
    For more information or assistance, visit [www.skyworksinc.com](http://www.skyworksinc.com) or contact sales@skyworksinc.com.

SE2435L-R参数

参数
最大工作供电电压 4.8V
最小工作供电电压 2V
射频类型 ISM
最大数据速率 -
最大供电电流 -
最大工作频率 930MHz
最小工作频率 860MHz
长*宽*高 4mm(长度)*4mm(宽度)
通用封装 QFN-24
安装方式 贴片安装
应用等级 工业级
零件状态 在售
包装方式 卷带包装
