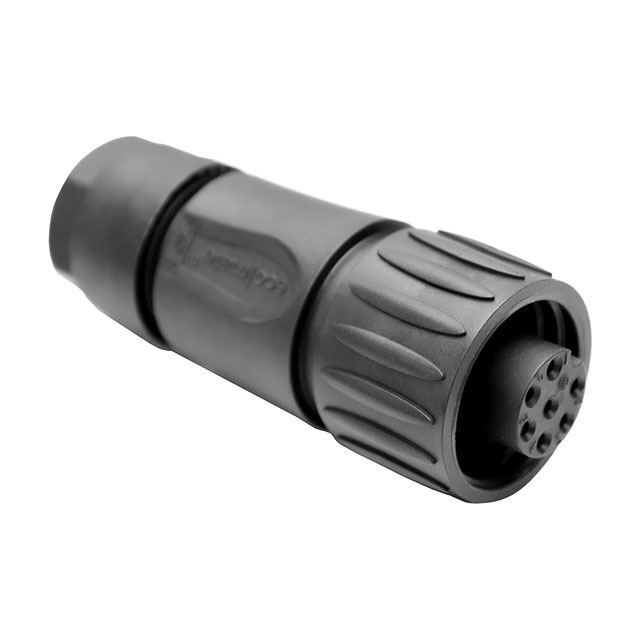

C016 30D006 800 12

产品分类: 圆形连接器
厂牌: AMPHENOL
产品描述: Receptacles,Standard Circular Connector 螺纹 Polyamide (PA) 黑色 自由悬挂
供应商型号: 523-C01630D00680012
供应商: Mouser
标准整包数: 1
AMPHENOL 圆形连接器 C016 30D006 800 12

C016 30D006 800 12概述

    Amphenol Circular Connectors: Product Overview and Comprehensive Analysis
    1. Product Introduction
    Amphenol-Tuchel Electronics GmbH, a member of the globally renowned Amphenol Corporation, specializes in the manufacturing of advanced circular connectors. These connectors cater primarily to applications in industrial machinery, plant construction, and various electrical control systems. The eco|matem series is particularly notable for its versatile design and robust functionality. With its emphasis on durability, reliability, and ease of use, the series ensures seamless integration in environments where high performance and reliability are critical.
    The eco|matem series features connectors with either 3+PE (three contacts plus a protective earth) or 6+PE (six contacts plus a protective earth) configurations. These connectors are designed for various operating voltages (3+PE: 400V; 6+PE: 250V) and currents (16A and 10-13A depending on the termination method), making them ideal for both power supply and data transmission tasks.
    2. Technical Parameters
    Below is a concise overview of the key technical specifications:
    - Contacts: 3+PE or 6+PE
    - Rated Voltage:
    - 3+PE: 400V
    - 6+PE: 250V
    - Current Carrying Capacity:
    - 3+PE: 16A (40°C)
    - 6+PE (solder): 10A (40°C)
    - 6+PE (crimp): 13A (40°C)
    - Insulation Resistance: ≥108Ω
    - Contact Resistance: ≤5mΩ
    - Temperature Range: -40°C to +125°C
    - Environmental Protection: IP65/IP67 (mated condition)
    - Climatic Category: II/III
    - Materials: Housing - PA6.6/PA6, Gasket - Neoprene/TPE
    - Wire Gauge: 0.14–2.5mm² (AWG 26–14)
    - Flammability Rating: UL94 VO
    - Mating Cycles: ≥500
    3. Product Features and Advantages
    The eco|matem series connectors stand out due to their innovative design and engineering excellence. Key features include:
    - Quick and Easy Assembly: The use of a clamping ring and internal cable clamping simplifies installation and enhances reliability.
    - Robust Design: Materials such as PA6.6/PA6 and Neoprene ensure long-term durability and resistance to environmental factors.
    - User-Centric Design: Ergonomic handles and secure locking mechanisms make handling safer and more convenient.
    - Versatility: The series supports multiple termination methods (screw, solder, crimp) and offers both straight and right-angle options.
    These features contribute to its market competitiveness by addressing the specific needs of industrial users who prioritize efficiency, safety, and longevity in their equipment.
    4. Application Cases and Usage Suggestions
    The eco|matem series is widely used across industries such as agriculture, automotive, and manufacturing. Examples include:
    - Agricultural Machinery: The 6+PE model, which aligns with DIN 9684-1 standards, is ideal for cabin-based signal transmission in tractors and farm equipment.
    - Machine Building: These connectors excel in harsh industrial settings due to their high voltage withstand capabilities and robust environmental protection.
    Usage Recommendations:
    - Always adhere to the specified stripping lengths for cables to avoid damage during assembly.
    - Ensure the tightening torque for the cable nuts remains within recommended limits to maintain proper sealing.
    - For critical applications, consider using high-voltage versions and protective caps as per manufacturer guidelines.
    5. Compatibility and Support
    Amphenol-Tuchel Electronics GmbH ensures compatibility with existing equipment through standardized designs. Additionally, their global network provides reliable after-sales support, including documentation, technical assistance, and customizations for specific client requirements.
    6. Common Issues and Solutions
    Below are some typical user concerns and their solutions:
    - Problem: Poor contact resistance post-installation.
    - Solution: Verify correct termination techniques
