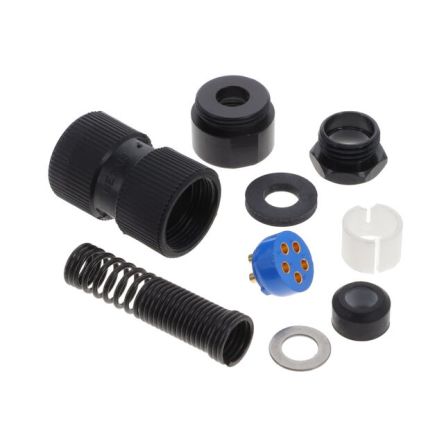

AP-115

产品分类: 圆形连接器
厂牌: AMPHENOL
产品描述: Bayonet Lock,Female Sockets,Plug 5pin Stainless Steel 500mA 金 银色,黑色 导线安装,自由悬挂,通孔安装
供应商型号: 1967-1019-ND
供应商: Digi-Key
标准整包数: 1
AMPHENOL 圆形连接器 AP-115

AP-115概述

    M55116 Audio Connectors: A Comprehensive Guide
    Product Introduction
    The M55116 Audio Connectors by Amphenol Nexus Technologies are designed to meet stringent military and commercial standards. These connectors are widely used in radio communication systems and intercom setups for various platforms including ground, vehicle, airborne, and naval applications. The connectors feature robust construction and reliable performance in audio frequency circuits operating at up to 60 volts and 0.5 amperes. They come equipped with either crimp sleeve or solder cup contacts and offer a range of configurations tailored to specific needs.
    Technical Specifications
    - Shell Material: Stainless steel, type 303, passivated.
    - Mating Mechanism: Bayonet coupling.
    - Operating Temperature Range: -55°C to +85°C.
    - Insert Material: Thermoset plastic.
    - Current Rating: Up to 0.5 amperes per contact.
    - Voltage Rating: Maximum 60 volts.
    - Contact Depression: 1.25-1.75 lbs per contact.
    - Contact Resistance: Less than 0.050 ohms.
    - Insulation Resistance: Minimum 1000 megohms except after water immersion tests where it should remain above 100 megohms.
    - Dielectric Withstanding Voltage: 500 volts RMS at sea level.
    - Water Immersion: Capable of withstanding up to 6 feet of water for up to 48 hours under both mated and unmated conditions.
    Product Features and Advantages
    The M55116 connectors stand out due to their durability and adaptability across diverse environments. Key features include bayonet coupling for quick and secure connections, and the ability to handle extreme temperature variations without compromising functionality. Their design ensures minimal contact resistance and superior insulation properties, making them suitable for high-reliability applications.
    Application Cases and Usage Tips
    These connectors are ideal for scenarios requiring reliable audio signal transmission under harsh conditions. For instance, they can be found in military vehicles where consistent communication links are crucial. When using these connectors, ensure proper cable strain relief to prevent damage and maintain signal integrity. Additionally, consider selecting the appropriate contact type based on whether you prefer crimping or soldering for better integration into your system.
    Compatibility and Support
    Amphenol Nexus Technologies offers compatibility options such as PCB contacts, unique shell geometries, and grounded/shielded versions. The company provides comprehensive support through its extensive network, ensuring customers receive timely assistance regarding product selection, installation, and maintenance.
    Common Issues and Solutions
    Users might encounter issues like loose connections or corrosion over time. Regular cleaning and checking for wear can mitigate these problems. If pin/socket open contacts persist, replacing defective components with self-cleaning molded-in contacts could resolve this issue effectively.
    Conclusion and Recommendation
    Overall, the M55116 Audio Connectors by Amphenol Nexus Technologies are highly recommended for professionals seeking durable, versatile, and efficient solutions in audio frequency applications. Their compact yet robust design makes them an excellent choice for both military and commercial sectors looking to enhance their communication capabilities. With strong technical support and customization options available, this product series represents a reliable investment in advanced connectivity technology.

AP-115参数

参数
针脚数 5pin
触头镀层 - 配接
类型 Bayonet Lock,Female Sockets,Plug
颜色 银色,黑色
端接 -
额定电流 500mA
外壳材料 Stainless Steel
安装方式 导线安装,自由悬挂,通孔安装
应用等级 军用级
零件状态 在售
包装方式 散装,袋装
