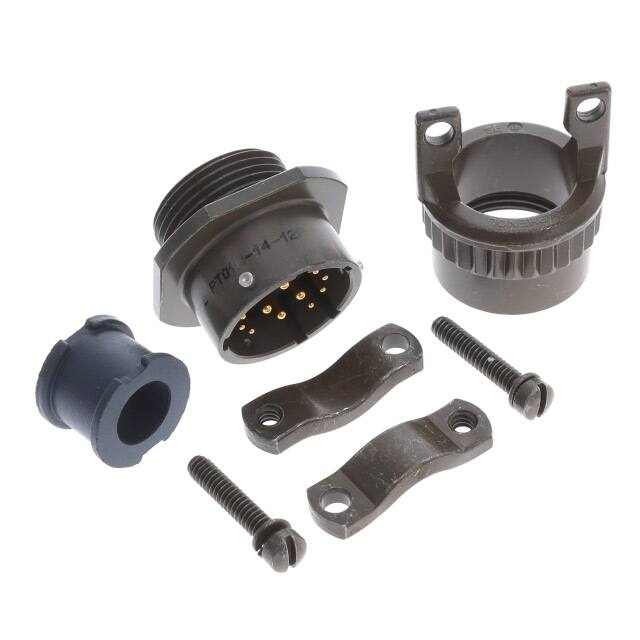

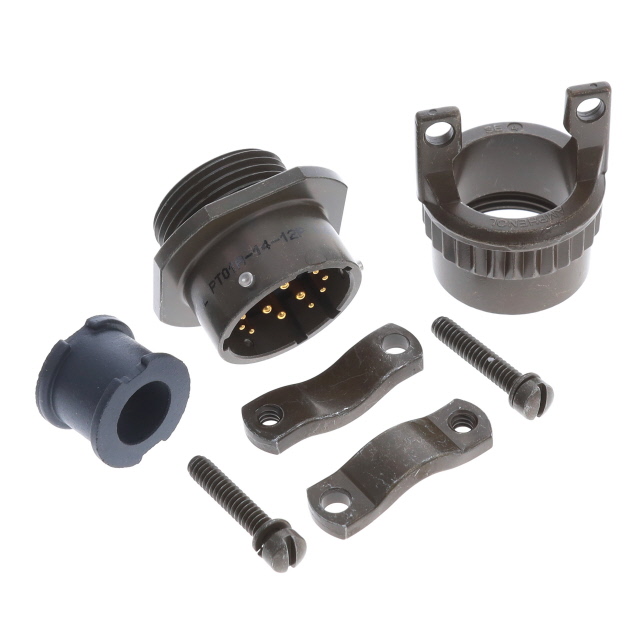

PT01A14-12P-SR

产品分类: 圆形连接器
厂牌: AMPHENOL
产品描述: Bayonet Lock,Male Pins,Receptacle 焊盘 12pin Aluminum 金 橄榄绿,褐色 导线安装,自由悬挂,通孔安装
供应商型号: 339-PT01A14-12P-SR-ND
供应商: Digi-Key
标准整包数: 1
AMPHENOL 圆形连接器 PT01A14-12P-SR

PT01A14-12P-SR概述

    # Amphenol® Miniature Cylindrical Connectors Technical Overview
    Product Introduction
    Amphenol® Miniature Cylindrical Connectors are advanced electrical connectors designed for a wide range of applications, including instrumentation, machine tooling, communications, and aerospace. These connectors come in various configurations, offering twice the number of contacts in half the space compared to standard connectors. They are manufactured to military-grade standards (MIL-DTL-26482, Series 1) and are UL and CSA recognized. This product line is widely used across industries such as oil and petrochemical, rail/mass transit, and industrial controls and robotics.
    Key Features:
    - General Duty Applications: Suitable for harsh environments.
    - Environmental Sealing: Achieved using a grommet and clamp design.
    - Wide Temperature Range: Operates between -55°C to +125°C.
    - Gold Plated Contacts: Ensures long-term reliability and corrosion resistance.
    Technical Parameters
    Below are the essential technical specifications for the Amphenol® Miniature Cylindrical Connectors:
    | Parameter | Value |

    | Operating Voltage | Up to 1000 VAC (RMS) |
    | Operating Temperature | -55°C to +125°C |
    | Shell Materials | Aluminum, Stainless Steel |
    | Connector Types | PT (Solder Contacts), PT-SE (Crimp Contacts) |
    | Number of Contacts | Up to 99 contacts |
    | Contact Sizes | 20, 16, 12, 10, 8, etc. |
    | Environmental Sealing | Yes (with grommet/clamp) |
    Product Characteristics and Advantages
    Unique Features:
    1. High Density: Twice the number of contacts in half the size of standard connectors.
    2. Versatile Terminations: Supports both solder and crimp terminations for different application needs.
    3. Bayonet Coupling Mechanism: Ensures quick and secure mating.
    4. Military Compliance: Meets MIL-DTL-26482 Series 1 standards.
    Market Competitiveness:
    - Reliability: Gold-plated contacts prevent oxidation and ensure consistent performance.
    - Flexibility: Multiple shell and contact arrangements cater to diverse design needs.
    - Cost-Effective: Offers value with its robust design and wide application scope.
    Application Cases and Usage Suggestions
    Typical Applications:
    - Industrial Control Systems: Used in factory automation for data transmission.
    - Aerospace: Provides reliable connections in aircraft systems.
    - Oil and Gas: Performs well under extreme conditions like high pressure and temperature.
    Usage Suggestions:
    - Environmental Protection: Ensure proper sealing to maintain performance in harsh conditions.
    - Contact Management: Properly manage contact types to avoid cross-plugging issues.
    - System Integration: Consider compatibility when integrating with other electronic components.
    Compatibility and Support
    Compatibility:
    - Interchangeability: Interfacing with other connectors in the miniature cylindrical series ensures seamless integration.
    - RoHS Compliance: Some models are available in RoHS-compliant versions.
    Manufacturer Support:
    - Quality Systems: ISO 9001:2015, ISO 14001:2015, ISO/TS 16949:2016 certifications ensure consistent quality.
    - Technical Assistance: Amphenol Corporation provides support via phone (+1-888-364-9011) and email.
    Common Issues and Solutions
    | Issue | Solution |

    | Cross-plugging | Use alternate insert positions for unique configurations. |
    | Poor Signal Integrity | Verify contact cleanliness and insulation integrity. |
    | Connector Loosening | Ensure bayonet coupling mechanism is tightened securely. |
    Conclusion and Recommendation
    Evaluation Summary:
    Amphenol® Miniature Cylindrical Connector

PT01A14-12P-SR参数

参数
类型 Bayonet Lock,Male Pins,Receptacle
颜色 橄榄绿,褐色
端接 焊盘
额定电流 -
外壳材料 Aluminum
针脚数 12pin
触头镀层 - 配接
安装方式 导线安装,自由悬挂,通孔安装
零件状态 在售
