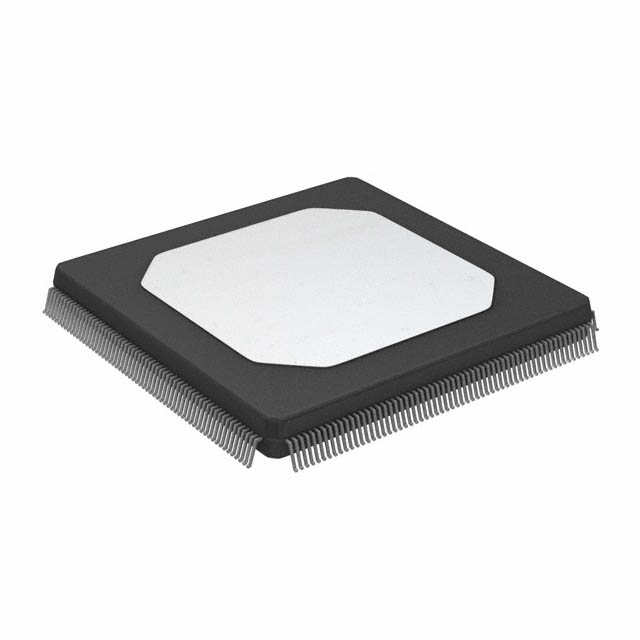

ADSP-21060KS-133

产品分类: 数字信号处理(DSP)
厂牌: ANALOG DEVICES
产品描述: 5V Host Interface,Link Port,Serial Port 32bit 512KB EXTERNAL 4.75V 5.25V 33MHz QFP 贴片安装 32mm*32mm*3.4mm
供应商型号: ADSP-21060KS-133-ND
供应商: Digi-Key
标准整包数: 1
ANALOG DEVICES 数字信号处理(DSP) ADSP-21060KS-133

ADSP-21060KS-133概述

    # Advanced Digital Signal Processing: The ADSP-2106x SHARC Processor
    Product Introduction
    The ADSP-2106x SHARC® Processor from Analog Devices is a high-performance 32-bit digital signal processing (DSP) microcomputer designed for advanced applications in communications, graphics, and imaging industries. Known for its Super Harvard Architecture, this processor combines the strengths of both von Neumann and Harvard architectures, enabling simultaneous access to instructions and data, making it ideal for real-time signal processing tasks.
    Key features include dual data fetch capabilities, a powerful floating-point computation unit (including multiplier, ALU, and shifter), and dual-ported on-chip SRAM. With integrated I/O peripherals, it functions as a complete system-on-a-chip. It's widely employed in scenarios requiring high throughput and precise signal manipulation.
    Applications:
    - Communications systems
    - Graphics rendering
    - Image processing
    - Real-time audio and video processing
    Technical Parameters
    The ADSP-2106x series supports a range of configurations to suit different application requirements:
    | Feature | ADSP-21060 | ADSP-21062 | ADSP-21060L | ADSP-21062L | ADSP-21060C | ADSP-21060LC |
    ||
    | SRAM Size (Bits) | 4M | 2M | 4M | 2M | 4M | 4M |
    | Operating Voltage (V) | 5 | 5 | 3.3 | 3.3 | 5 | 3.3 |
    | Instruction Rate (MHz) | 33 | 40 | 33 | 40 | 33 | 40 |
    | Package Type | MQFPPQ4 / PBGA | MQFPPQ4 / PBGA | MQFPPQ4 / PBGA | MQFPPQ4 / PBGA | CQFP | CQFP |
    Performance Highlights:
    - Peak floating-point performance: 120 MFLOPS
    - Sustained floating-point performance: 80 MFLOPS
    - Dual data address generators with modulo and bit-reverse addressing capabilities
    - Zero-overhead looping for efficient program execution
    - Supports IEEE 32-bit single-precision and 40-bit extended-precision floating-point formats
    - Compatible with RoHS-compliant packages
    Product Features and Advantages
    The ADSP-2106x SHARC processor stands out due to several unique features:
    1. High Computational Efficiency: Its dual-data fetch architecture and single-cycle instruction execution provide exceptional processing speeds.
    2. Flexibility: Configurable on-chip memory and I/O interfaces allow for optimized use across various applications.
    3. System Integration: Combines a high-performance DSP core with on-chip memory and I/O peripherals, eliminating the need for external components in many cases.
    4. Scalability: Supports multiprocessing with glueless connectivity for up to six ADSP-2106x cores and host processors.
    5. Advanced Memory Management: Dual-port memory facilitates concurrent data and instruction access.
    These features make the ADSP-2106x highly competitive in fields where high computational performance is essential.
    Application Case Studies and Recommendations
    Example Use Case: Digital Audio Effects Processing
    In digital audio effects processing, the ADSP-2106x can be utilized to implement real-time equalization and reverb effects. The dual-port memory and parallel data transfer capabilities ensure seamless execution of complex algorithms like FFT and FIR/IIR filtering.
    Usage Tips:
    - Optimize memory usage by dedicating one memory block exclusively to code and the other to data to avoid conflicts.
    - Use the DMA controller for background data transfers to maintain uninterrupted signal flow.

    Video Encoding/Decoding Systems
    For high-demand v

ADSP-21060KS-133参数

参数
程序存储器类型 EXTERNAL
内核数 -
接口类型 Host Interface,Link Port,Serial Port
速度 -
I/O电压 5V
数据总线宽度 32bit
程序存储器大小 -
核心处理器 -
最小工作供电电压 4.75V
RAM大小 512KB
L1缓存指令存储器 -
最大工作供电电压 5.25V
最大时钟频率 33MHz
长*宽*高 32mm*32mm*3.4mm
通用封装 QFP
安装方式 贴片安装
零件状态 停产
包装方式 托盘
