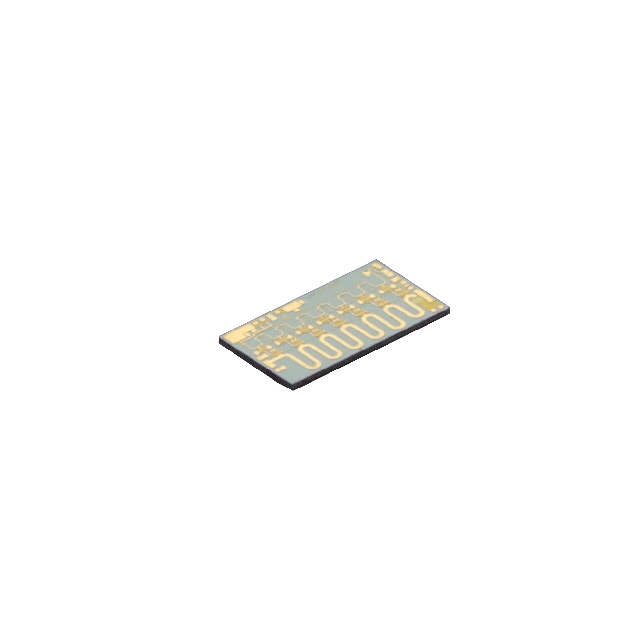

HMC797A

厂牌: ANALOG DEVICES
产品描述: 0MHz 11V 22GHz SMD 贴片安装 2.89mm*1.55mm*100μm
供应商型号: HMC797A
供应商: 云汉优选
标准整包数: 1
ANALOG DEVICES 其它RF IC和模块​​​​​​ HMC797A

HMC797A概述

    Product Introduction
    The HMC797A is a GaAs PHEMT (Pseudomorphic High Electron Mobility Transistor) MMIC (Monolithic Microwave Integrated Circuit) designed as a high-performance 1 Watt Power Amplifier. It operates across a wide frequency range, from DC to 22 GHz, making it suitable for demanding applications requiring both high gain and high linearity. Manufactured by Analog Devices, the HMC797A is engineered to meet rigorous standards for performance and reliability.
    Key features include:
    - Output Power: +29 dBm at 1 dB compression and +31 dBm saturated output power.
    - Gain: 15 dB with a positive gain slope over the 2–20 GHz range.
    - Linearity: High output IP3 (Third Order Intercept Point) of +41 dBm.
    - Efficiency: 23% PAE (Power Added Efficiency).
    - Supply Voltage: Operates at +10 V with a supply current of 400 mA.
    The HMC797A is ideal for a variety of applications, including military and space systems, test instrumentation, and fiber optics. Its robust design and internal 50-ohm matching facilitate integration into Multi-Chip Modules (MCMs).
    Technical Parameters
    Below is a summary of key technical specifications extracted from the datasheet:
    | Parameter | Min | Typ | Max | Units |

    | Frequency Range | DC 22 GHz | GHz |
    | Gain | 13 dB | 15 dB | 16 dB | dB |
    | Gain Flatness | ±0.4 dB| ±0.5 dB| ±0.7 dB| dB |
    | Input Return Loss | 15 dB | 16 dB | 17 dB | dB |
    | Output Return Loss | 15 dB | 17 dB | 17 dB | dB |
    | Output Power (P1dB) | 27 dBm | 29 dBm | 29 dBm | dBm |
    | Saturated Output Power (Psat) | 31 dBm | 31 dBm | 31.5 dBm| dBm |
    | Output IP3 (Third Order Intercept) | 40 dBm| 41 dBm | 42 dBm | dBm |
    | Noise Figure | 3 dB | 3.5 dB | 3.5 dB | dB |
    | Supply Current (Idd) | 400 mA | 400 mA | 400 mA | mA |
    | Supply Voltage (Vdd) | 8 V | 10 V | 11 V | V |
    Additional parameters, such as thermal performance, reverse isolation, and phase noise, are also documented in the datasheet. These ensure compatibility with various operating environments.
    Product Features and Advantages
    The HMC797A offers several unique advantages that make it stand out in the market:
    1. Wide Operating Frequency Range: Supporting DC to 22 GHz, the HMC797A enables its deployment in applications that require bandwidth flexibility.
    2. High Linearity: With an impressive output IP3 of +41 dBm, the device is particularly well-suited for high-order modulation scenarios in radar, electronic warfare (EW), and electronic countermeasure (ECM) systems.
    3. Positive Gain Slope: Its stable gain profile ensures consistent performance across a broad spectrum, which is critical for radar and test equipment.
    4. Internal Matching: The 50-ohm matched input/output minimizes the need for external tuning, simplifying integration and reducing design complexity.
    5. Compact Design: At just 2.89 x 1.55 x 0.1 mm, it is highly space-efficient, ideal for compact module designs.
    These attributes position the HMC797A as a competitive solution in both commercial and defense sectors.
    Application Case Studies and Usage Recommendations
    Military and Space Applications
    In defense systems, the HMC797A's high linearity and wide frequency coverage make it suitable for EW and ECM equipment. It can also enhance signal fidelity in radar systems where maintaining high gain and precise power output is essential. Users should ensure proper impedance matching and shielding to avoid signal degradation.
    Test Instrumentation
    For high-precision measurement equipment, the HMC797A’s low noise figure (3–3.5 dB) ensures accurate re
