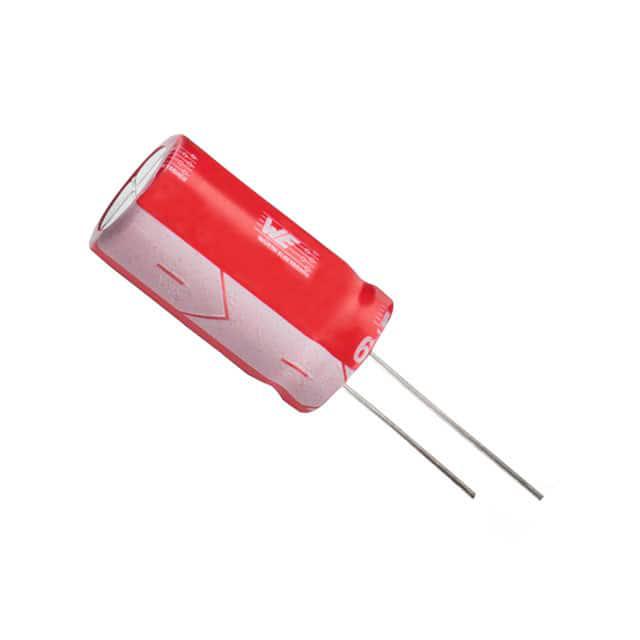

860020373008

产品分类: 铝电解电容
厂牌: WURTH
产品描述: 150μF 16V ±20% 2000h@ 105°C 170mA@ 120Hz,234.6mA@ 100kHz 通孔安装 6.3mm(长度)*12.5mm(高度)
供应商型号: 3131982
供应商: 海外现货
标准整包数: 1
WURTH 铝电解电容 860020373008

860020373008概述

    WCAP-ATG5 Aluminum Electrolytic Capacitors: Technical Overview
    1. Product Introduction
    The WCAP-ATG5 Aluminum Electrolytic Capacitors are designed for general-purpose electronic equipment, offering excellent performance and reliability in various applications. These capacitors feature robust construction with aluminum electrolyte technology, ensuring low ESR (Equivalent Series Resistance) and high ripple current capability. They are primarily used in power supply circuits, filtering applications, and smoothing of DC signals in audio, automotive, and consumer electronics.
    2. Technical Parameters
    Below are the key technical specifications extracted from the provided data:
    | Parameter | Value | Unit |
    |
    | Capacitance | 150 | µF |
    | Rated Voltage | 16 | V (DC) |
    | Leakage Current | ≤ 24 | μA |
    | Dissipation Factor | ≤ 0.10 | % |
    | Ripple Current | ≤ 170 | mA |
    | Maximum Operating Temp. | +105 | °C |
    | Body Dimensions (L x W x H)| 6.3 x 11.0 | mm |
    | Mounting Hole Diameter | 1.5 | mm |
    Additional Notes:
    - Pin diameter: ±0.02 mm
    - Sleeve color band indicates polarity (negative terminal).
    3. Product Features and Advantages
    - High Ripple Current Capability: The capacitor supports up to 170 mA at 120 Hz under typical operating conditions.
    - Wide Operating Temperature Range: Operates effectively between -40°C and +105°C.
    - Low Dissipation Factor: Provides high efficiency with minimal power loss, ideal for power conditioning.
    - Robust Construction: Includes a built-in venting mechanism to prevent catastrophic failure due to internal pressure.
    - Compatibility: Designed for standard soldering processes, ensuring compatibility with PCB assembly requirements.
    4. Application Case Studies and Recommendations
    Use Cases:
    - Power Supply Circuits: The capacitor’s ability to handle ripple currents makes it suitable for smoothing DC outputs in switching power supplies.
    - Audio Filtering: Excellent performance in audio filtering applications due to its low ESR and high capacitance.
    - Consumer Electronics: Reliable performance in battery-powered devices requiring compact size and efficient energy storage.
    Usage Tips:
    - Ensure proper soldering alignment and avoid bending leads post-soldering.
    - Leave at least 3mm clearance above the vent area to ensure optimal pressure release functionality.
    - Use protective resistors during initial charging to reduce risk of high initial leakage currents.
    5. Compatibility and Support
    These capacitors are compatible with standard wave soldering profiles and meet EN 61760-1:2006 standards. Würth Elektronik provides extensive technical support including application notes, soldering guidelines, and regular updates to their technical documents. Users are encouraged to check the latest datasheets on the official website: [www.we-online.com](https://www.we-online.com).
    6. Common Issues and Solutions
    | Issue | Solution |

    | High Leakage Current | Apply rated voltage for 30 minutes through a 1 kΩ resistor after prolonged storage. |
    | Incorrect Soldering | Reinspect and ensure correct alignment with PCB. |
    | Pressure Vent Activation | Ensure adequate spacing above the vent. |
    | Loss of Capacitance | Check for physical damage or incorrect operating conditions. |
    7. Summary and Recommendation
    The WCAP-ATG5 Aluminum Electrolytic Capacitors excel in terms of cos

860020373008参数

参数
电容值 150μF
额定电压 16V
容差 ±20%
ESR-等效串联电阻 -
纹波电流 170mA@ 120Hz,234.6mA@ 100kHz
工作寿命 2000h@ 105°C
长*宽*高 6.3mm(长度)*12.5mm(高度)
安装方式 通孔安装
应用等级 通用级
零件状态 在售
包装方式 盒装
