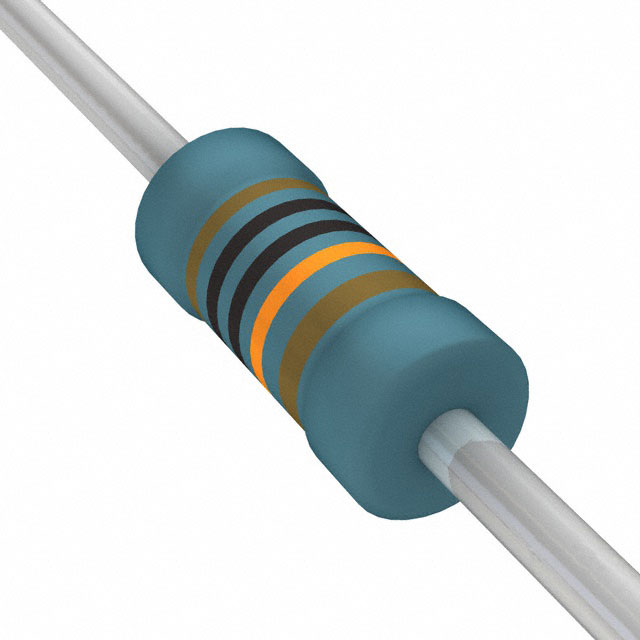

VR68000001003FAC00

产品分类: 通孔电阻
产品描述: 100KΩ ±1% 1W ±200ppm/℃ 通孔安装 18mm(长度)
供应商型号: 3975763
供应商: 海外现货
标准整包数: 1
VISHAY INTERTECHNOLOGY 通孔电阻 VR68000001003FAC00

VR68000001003FAC00概述

    # Vishay BCcomponents High Ohmic / High Voltage Metal Glaze Leaded Resistors
    Product Introduction
    The Vishay BCcomponents VR25, VR37, and VR68 series represent advanced high ohmic and high voltage metal glazed resistors designed for demanding applications. These resistors utilize a metal glazed film deposited on a high-grade ceramic body, ensuring excellent resistance properties, high stability, and reliability at elevated voltages. Key features include high pulse handling capabilities, broad operating voltage ranges, and excellent environmental durability.
    These resistors find applications in environments where high resistance and voltage are critical, such as white goods, power supplies, automotive electronics, and other high-humidity environments. The VR series meets stringent industry standards including UL, IEC, and AEC-Q200 qualifications, making them ideal for use in automotive, industrial, and consumer electronics.
    Technical Parameters
    The following technical specifications highlight the performance parameters of the VR series resistors:
    | Model | Resistance Range | Tolerance | Temperature Coefficient | Rated Dissipation (P70) | Operating Voltage (AC/DC) |
    |
    | VR25 | 100 kΩ to 22 MΩ | ±1%, ±5%, ±10% | ≤ ±200 ppm/K | 0.25 W | 1600 V |
    | VR37 | 100 kΩ to 33 MΩ | ±1%, ±5% | ≤ ±200 ppm/K | 0.5 W | 3500 V |
    | VR68 | 100 kΩ to 68 MΩ | ±1%, ±5% | ≤ ±200 ppm/K | 1.0 W | 10,000 V |
    Other notable specifications:
    - Operating Temperature Range: -55°C to +155°C
    - Peak Permissible Film Temperature: 155°C
    - Thermal Resistance (Rth): VR25 = 140 K/W, VR37 = 120 K/W, VR68 = 70 K/W
    - Noise (White Noise): VR25 = 5 µV/V, VR37 = 2.5 µV/V, VR68 = 2.5 µV/V
    Product Features and Advantages
    The VR series offers several key advantages over competing resistors:
    1. High Voltage Handling Capability: Maximum voltage ratings up to 10 kV ensure reliability in high-stress applications.
    2. Broad Resistance Range: Offers precise values across multiple decades, making it suitable for diverse applications.
    3. Temperature Stability: Temperature coefficients as low as ±200 ppm/K provide exceptional stability over varying temperatures.
    4. Industry Compliance: Meets critical standards such as UL, IEC, and AEC-Q200, ensuring performance reliability in automotive and industrial sectors.
    5. Durability: Radial versions with excellent solderability and resistance to thermal cycling make them ideal for automated assembly processes.
    6. Extensive Pulse Load Capability: Can handle up to 10 kV pulses, providing robust performance in demanding environments.
    Application Case Studies and Usage Recommendations
    Application Scenarios:
    1. Automotive Electronics: The VR series is widely used in ignition coils, fuel injectors, and other automotive control modules due to its high pulse handling capacity and robust design.
    2. Power Supplies: Its high-voltage capability makes it suitable for switching power supplies, inverters, and DC-DC converters.
    3. White Goods: Used in washing machines, dishwashers, and refrigerators where humidity resistance and stability are crucial.
    Usage Suggestions:
    - When using these resistors in high-voltage circuits, ensure proper derating is applied to maintain optimal temperature rise.
    - Regular testing is recommended to monitor resistance drift under long-term stress.
    - When soldering, ensure temperatures comply with specified guidelines (e.g., wave soldering at 260 ± 5°C for 10 ± 1 seconds).
    Compatibility and Support
    The VR series is compatible with various packaging styles, including taped reels and bandoleers, allowing flexibility for both manual and automated insertion processes. Vishay offers compre

VR68000001003FAC00参数

参数
电阻值 100KΩ
精度 ±1%
额定功率 1W
温度系数 ±200ppm/℃
长*宽*高 18mm(长度)
安装方式 通孔安装
零件状态 在售
包装方式 盒装

VR68000001003FAC00厂商介绍

Vishay Intertechnology是一家全球领先的电子元件制造商,专注于研发、制造和销售各种高性能电子元件。公司成立于1962年,总部位于美国宾夕法尼亚州的马尔文,在全球拥有多个生产基地和研发中心。

Vishay Intertechnology的产品主要分为以下几类:
1. 分立元件:包括二极管、晶体管、MOSFET等。
2. 被动元件:包括电阻、电容器、电感等。
3. 传感器:包括温度、压力、湿度等传感器。
4. 保护元件:包括保险丝、浪涌保护器等。

这些产品广泛应用于汽车、工业、医疗、通信、消费电子等领域。Vishay Intertechnology的优势在于:
1. 技术创新:公司不断研发新技术和新产品,以满足市场需求。
2. 质量控制:公司严格遵循ISO等国际质量标准,确保产品质量。
3. 客户服务:公司提供全方位的技术支持和定制化服务,以满足客户的个性化需求。
4. 全球布局:公司在全球设有多个生产基地和研发中心,可以快速响应客户需求。

VR68000001003FAC00数据手册

厂牌 PDF简要描述 下载
VISHAY INTERTECHNOLOGY 通孔电阻 VISHAY INTERTECHNOLOGY VR68000001003FAC00 VR68000001003FAC00数据手册

VR68000001003FAC00封装设计

查看详情并下载
Symbol
Footprint
3D Model
价格梯度 中国香港交货 内地交货(含增值税)
1+ ¥ 5.48
10+ ¥ 4.1515
50+ ¥ 4.1515
100+ ¥ 3.9854
200+ ¥ 3.7197
500+ ¥ 3.6533
2500+ ¥ 3.5869
5000+ ¥ 3.5869
库存: 868
起订量: 13 增量: 0
交货地:
最小起订量为:10
合计: ¥ 41.51
直接购买
加入购物车
