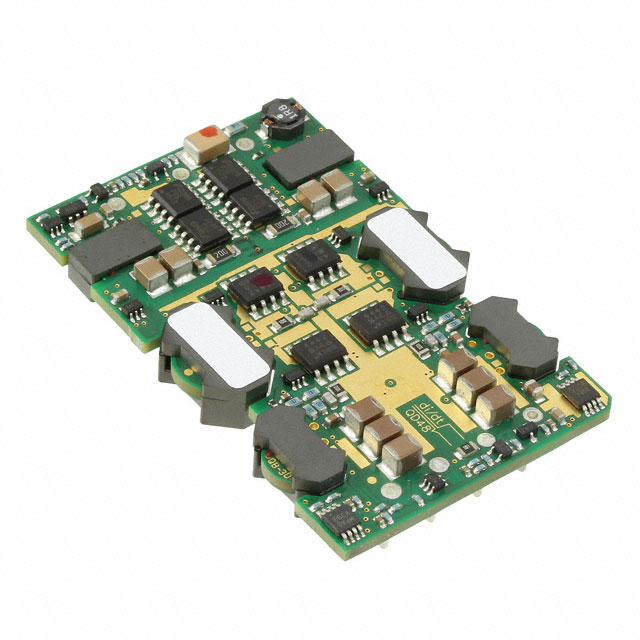

QD48T018033-NCC0

产品分类: 其他电源
厂牌: BEL FUSE
产品描述: 2 通孔安装 58.42mm*36.83mm*36.83mm
供应商型号: N-QD48T018033-NCC0
供应商: 云汉优选
标准整包数: 1
BEL FUSE 其他电源 QD48T018033-NCC0

QD48T018033-NCC0概述

    # QD48T018033 Dual Output DC-DC Converter Technical Overview
    Product Introduction
    The QD48T018033 is a dual-output through-hole mounted DC-DC converter that delivers unparalleled performance within a compact quarter brick package. Designed for high-demand applications, this converter provides two independently regulated high-current outputs, making it ideal for telecommunications and data communication systems. Its unique architecture uses advanced circuit and packaging techniques to achieve superior efficiency, excellent thermal management, and a low-profile design.
    Key Features:
    - Two independently regulated outputs: 1.8 VDC @ 15 A and 3.3 VDC @ 15 A
    - Ultra-high efficiency: up to 87%
    - Excellent thermal performance
    - Minimal cross-channel interference
    - No heat sink required
    - Low profile: 0.28 inches (7.2 mm)
    - Lightweight: 1 oz (28 g)
    - Industry-standard footprint: 1.45" x 2.30"
    - Meets international safety standards (IEC60950-1, UL/CSA 60950-1)
    Technical Specifications
    Below are the critical technical parameters of the QD48T018033:
    | Parameter | Minimum | Typical | Maximum | Units |

    | Input Voltage Range | 36 | 48 | 75 | VDC |
    | Operating Ambient Temperature | -40 | 85 | °C |
    | Storage Temperature | -55 125 | °C |
    | Output Voltage Range | 1.764 | 1.8 | 1.836 | VDC |
    3.234 | 3.3 | 3.366 | VDC |
    | Efficiency (at 1.8 VDC, 3.3 VDC) | 87% |
    | Maximum Input Current | 1.8 VDC @ 15 ADC, 3.3 VDC @ 15 ADC, Vin = 36 V @ 2.5 ADC |
    | Switching Frequency | 435 kHz |
    Other notable specifications include:
    - Overvoltage protection: Non-latching
    - Isolation: 2000 VDC
    - Start-up time: 3 ms (nominal)
    - Fully protected with short-circuit and over-temperature shutdown
    Product Advantages and Key Benefits
    The QD48T018033 offers several distinct advantages that make it a standout product in its class:
    1. Dual Outputs: Two high current outputs enable streamlined integration into dual-power requirement systems.
    2. High Efficiency: Delivers peak efficiencies of up to 87%, minimizing energy loss and improving overall system performance.
    3. Thermal Management: Exceptional thermal design ensures efficient heat dissipation without requiring external heatsinks.
    4. Industry Standard Footprint: Easy integration with existing designs, reducing redesign costs.
    5. Wide Operating Range: Operates effectively across a wide input voltage range (36-75 VDC).
    6. Reliability: Calculated Mean Time Between Failures (MTBF) of 2.6 million hours.
    Application Examples and Usage Recommendations
    Application Scenarios:
    1. Telecommunications: Used in telecom infrastructure for powering multiple modules requiring 1.8 V and 3.3 V outputs.
    2. Data Centers: Supports high-density computing systems with strict space constraints.
    3. Networking Equipment: Ideal for routers, switches, and servers that demand dual voltage outputs.
    Use Case Suggestion:
    - Ensure the PCB layout minimizes trace inductance to maximize stability.
    - Consider adding a 33 µF input capacitor (ESR < 1 Ω) in applications with long input power distribution lines.
    - Use an external filter to meet stringent electromagnetic compatibility (EMC) standards.
    Compatibility and Support
    The QD48T018033 is fully compatible with existing quarter brick mounting configurations. It complies with global safety regulations such as UL60950 and EN60950. The manufacturer offers robust technical support, including detailed application notes and assistance with system integration.
    Common Issues and Solutions
    | Issue | Solution

QD48T018033-NCC0参数

参数
输出功率 -
负载调节 -
输出数量 2
长*宽*高 58.42mm*36.83mm*36.83mm
安装方式 通孔安装
应用等级 工业级
包装方式 散装
