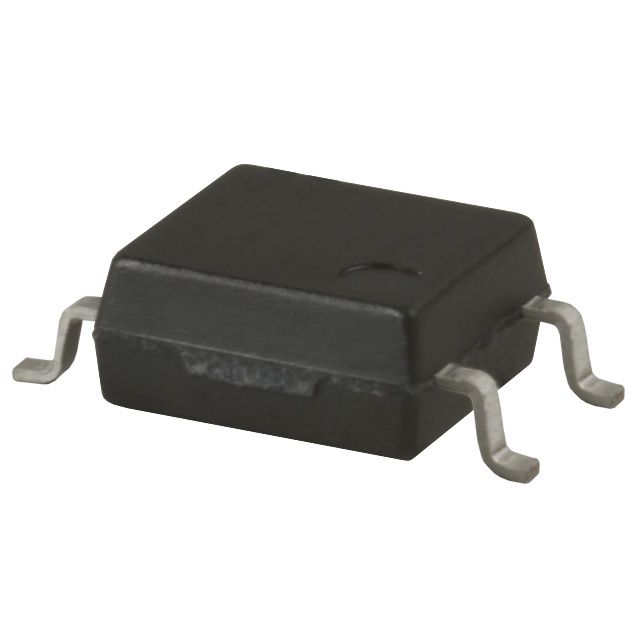

AQY412EHAZ

产品分类: 固态继电器
厂牌: PANASONIC
产品描述: AC,DC 2.5Ω 0V~60V 550mA 1.14V(DC) 4-SMD 贴片安装,黏合安装
供应商型号: AQY412EHAZ-ND
供应商: Digi-Key
标准整包数: 1
PANASONIC 固态继电器 AQY412EHAZ

AQY412EHAZ概述

    Panasonic PhotoMOS® GE 1 Form B AQY412EH Technical Overview
    Product Introduction
    The Panasonic PhotoMOS® GE 1 Form B AQY412EH is an advanced solid-state relay that combines optoelectronic and MOSFET technologies. It offers exceptional performance for controlling low-level analog signals and switching loads with minimal power consumption. This solid-state relay is ideal for applications requiring high sensitivity, low on-resistance, and reinforced insulation.
    Key features include:
    - Type: Form B output (Normally Open/Normally Closed)
    - On-Resistance: 1.0 Ω typical (AQY412EH)
    - Insulation Rating: Reinforced insulation up to 5,000 VRMS
    - Applications: Power supply, measuring equipment, security systems, telecommunication, and sensing equipment
    Notably, Panasonic does not recommend this product for automotive applications without consulting their sales representative.
    Technical Parameters
    Below is a concise table summarizing the critical technical parameters of the AQY412EH:
    | Parameter | AQY412EH Specifications |

    | Output Type | Form B |
    | Insulation Voltage | 5,000 VRMS (reinforced insulation) |
    | Load Voltage (AC/DC) | Up to 60 V |
    | Load Current | 0.55 A (continuous) |
    | On-Resistance | 1.0 Ω (typical) |
    | Off-State Leakage Current| ≤10 µA |
    | Switching Time (TOFF/TON)| 3.0 ms / 0.2 ms (max) |
    | I/O Capacitance | 0.8 pF (typical) |
    | Isolation Resistance | ≥1,000 MΩ (at 500 V DC) |
    Additional ratings include:
    - Absolute maximum input voltage: 6 V
    - Recommended operating temperature: -40°C to +85°C
    Product Features and Advantages
    1. Low On-Resistance: With typical values as low as 1.0 Ω, the AQY412EH minimizes power loss and heat generation during operation.
    2. High Insulation Strength: The reinforced insulation ensures robust performance in high-voltage environments.
    3. Minimal Leakage Current: Low off-state leakage ensures excellent signal integrity.
    4. Broad Application Compatibility: Suitable for industries ranging from power electronics to telecommunications.
    5. Environmental Robustness: Operates reliably in challenging conditions (-40°C to +85°C).
    Its competitive edge lies in its ability to handle both AC and DC loads with enhanced sensitivity and precision.
    Application Case Studies and Usage Recommendations
    The AQY412EH is well-suited for applications involving:
    - Power Supply Management: Ideal for isolating sensitive circuits in power distribution systems.
    - Telecommunications Equipment: Facilitates safe switching of modem connections.
    - Security Systems: Provides reliable, non-contact switching for alarm mechanisms.
    Usage Recommendations:
    - Temperature Considerations: Ensure ambient temperatures stay within specified limits to prevent thermal stress.
    - Wire Length Optimization: Shorten wires connected to inductive loads to minimize voltage spikes.
    - Static Protection: Implement proper grounding and anti-static procedures during assembly and handling.
    Compatibility and Support
    The AQY412EH is compatible with standard PCB layouts and supports through-hole or surface-mount installation. Panasonic provides extensive documentation and technical support to assist in integrating this component into custom designs.
    Additionally, the product complies with key safety standards including UL1577, CSA Certified, VDE, and BSI approved certifications.
    Common Issues and Solutions
    1. Static Electricity Damage:
    - Problem: Discharge of static electricity during handling.
    - Solution: Use grounded anti-static equipment and conductive packaging materials.

AQY412EHAZ参数

参数
负载电压 0V~60V
输入电压 1.14V(DC)
控制电压 -
开关功能 -
最大导通电阻 2.5Ω
负载电流额定值 550mA
输出类型 AC,DC
通用封装 4-SMD
安装方式 贴片安装,黏合安装
零件状态 在售
包装方式 卷带包装
