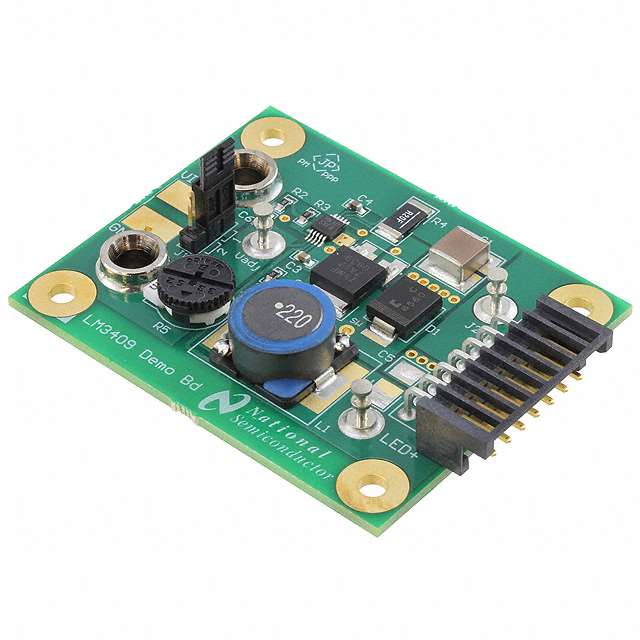

LM3409EVAL/NOPB

产品分类: LED驱动器
厂牌: TEXAS INSTRUMENTS
产品描述: 德州仪器 演示板, LED Lighting Development Kit, LED 驱动器技术
供应商型号: LM3409EVAL/NOPB
供应商: 国内现货
标准整包数: 1
TEXAS INSTRUMENTS LED驱动器 LM3409EVAL/NOPB

LM3409EVAL/NOPB概述

    # Texas Instruments LM3409 PFET Buck Controller for High Power LED Drivers
    Product Introduction
    The LM3409 is a versatile PFET controller designed for high-power LED drivers, offering exceptional efficiency and adaptability. It operates as a buck current regulator capable of driving up to 4 series-connected LEDs at a maximum average LED current (ILED) of 1A from a DC input voltage (VIN) ranging between 6V and 42V. The switching frequency (fSW) is programmable within a wide range, typically around 525 kHz but adaptable to specific operating conditions. This device is especially suited for automotive lighting, general illumination, and industrial LED applications.
    Key features include dual dimming methods (analog and PWM), integrated thermal management, and high efficiency, making it a standout solution for both simplicity and performance.
    Technical Parameters
    | Parameter | Value/Range |

    | Input Voltage Range | 6V–42V |
    | Output Voltage | Variable up to 42V |
    | Operating Frequency | 525 kHz (configurable) |
    | Maximum LED Current | 1A |
    | Efficiency | Up to 95% |
    | Environmental Operating Range | –40°C to 125°C |
    | Package Type | SMD compatible |
    | PWM Frequency Compatibility | Customizable |
    The LM3409 supports flexible configurations with high accuracy over its operational range. Its efficiency remains consistent even during low input voltage scenarios, reaching up to 95% across various operating points.
    Product Features and Advantages
    The LM3409 offers unique advantages such as:
    1. Dual Dimming Control: Ability to switch between analog and PWM dimming for advanced lighting control.
    2. Wide Input Voltage Range: Supports a broad range of supply voltages, enhancing adaptability across diverse applications.
    3. Compact Solution: Minimal external components reduce PCB space usage.
    4. High Reliability: Built-in protection mechanisms like thermal shutdown, UVLO, and fault diagnostics ensure prolonged operational reliability.
    5. Cost-Efficient Design: Lower bill of materials (BoM) compared to competitors due to fewer peripheral components.
    These features make the LM3409 a leading contender in the market for high-efficiency LED driver solutions.
    Application Case Studies and Usage Recommendations
    Application Example 1: Automotive Lighting
    The LM3409 is commonly deployed in automotive headlamps and interior lighting systems. Its ability to handle large input voltage fluctuations makes it ideal for applications where the battery voltage may drop significantly during engine start-ups or sudden load events. For optimal performance, users should pair the LM3409 with appropriate filtering capacitors to minimize voltage ripples.
    Application Example 2: Industrial Lighting
    In industrial settings, where energy savings are critical, the LM3409 shines with its high-efficiency design. When integrating this controller, ensure proper thermal management by selecting high-quality MOSFETs and heatsinks to dissipate excess heat generated during operation.
    Recommendations:
    - Always reference the datasheet to calculate inductance and resistance values accurately.
    - Use a combination of input and output capacitors to smooth transient currents and reduce electromagnetic interference (EMI).
    - Verify compatibility with PWM controllers if utilizing digital dimming capabilities.
    Compatibility and Support
    The LM3409 is fully compatible with other TI power management products, allowing seamless integration into broader systems. Texas Instruments provides comprehensive documentation, including application notes, schematics

LM3409EVAL/NOPB参数

参数
效率 -
拓扑 -
最大输出电压 15V
最小输出电压 -
最大输入电压 42V
输出数量 -
输出电流 1A
调光方式 -
最小输入电压 6V
功率 -
安装方式 板安装
零件状态 在售
包装方式 盒装
