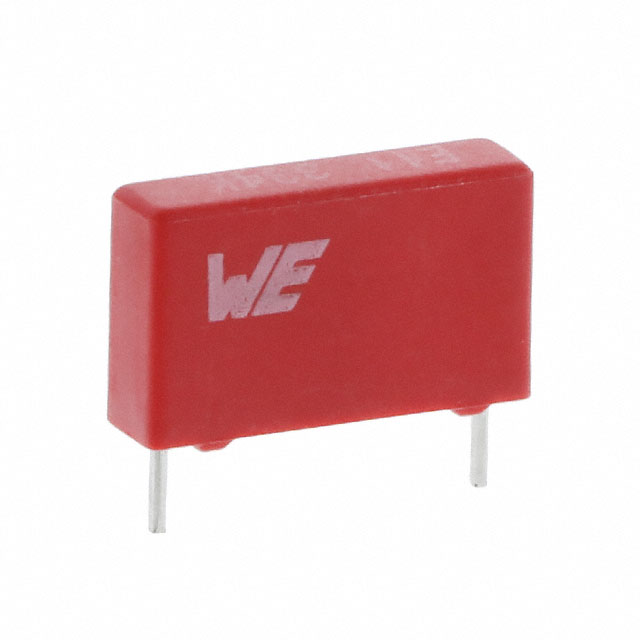

890324025034CS

产品分类: 薄膜电容
厂牌: WURTH
产品描述: 330nF ±10% 聚丙烯 275V 通孔安装 18mm*8.5mm*15mm
供应商型号: 2450022
供应商: element14
标准整包数: 1
WURTH 薄膜电容 890324025034CS

890324025034CS概述

    WCAP-FTX2 Film Capacitors Technical Manual
    1. Product Introduction
    The WCAP-FTX2 Film Capacitors, part number MX2P015334K275ACPP46004, are metallized polypropylene film capacitors designed for general electronic applications, particularly across mains voltage lines. These capacitors are classified under the X2 Safety Class, offering robust performance in environments prone to electromagnetic interference (EMI). They are commonly utilized in electromagnetic compatibility (EMC) solutions, power supplies, and filtering applications.
    Key features include:
    - Type: Film capacitor
    - Functionality: Noise suppression and filtering
    - Applications: Electromagnetic interference suppression across mains, power line filtering, and industrial equipment
    2. Technical Parameters
    The following table summarizes the critical technical specifications:
    | Parameter | Specification |

    | Capacitance | 330 nF ±10% |
    | Rated Voltage | Up to 275 V (AC), 630 V (DC up to 85°C) |
    | Insulation Resistance | ≥30 GΩ |
    | Dissipation Factor | ≤0.1% @ 1 kHz, ≤0.3% @ 10 kHz, ≤3% @ 100 kHz |
    | Dielectric Strength | 1333 V (DC pin-to-pin), 2000 V (AC pin-to-case) |
    | Temperature Range | -40°C to +105°C |
    | Self-Heating | ≤7°C at rated temperature |
    The dissipation factor is highly stable over a wide range of temperatures and frequencies. It exhibits minimal variation across operating conditions, making it ideal for applications demanding consistent performance.
    3. Product Characteristics and Advantages
    - High Reliability: The capacitor's construction uses metallized polypropylene film (MKP) with superior insulation resistance.
    - Broad Operating Range: Designed to function effectively across mains voltages, withstanding up to 275 V (AC) at ambient temperatures of up to 105°C.
    - Noise Reduction: Excellent suppression of electromagnetic interference, ensuring cleaner power lines and improved equipment performance.
    - Durability: Meets stringent standards such as IEC 60384-14, supporting a range of environmental and vibration tests.
    - Compliance: Fully compliant with RoHS, REACH, and various global safety certifications (ENEC, cULus, CQC).
    4. Application Cases and Usage Recommendations
    The WCAP-FTX2 is commonly employed in:
    - Power Supply Filters: Suppresses harmonic distortions and improves power quality.
    - Switched-mode Power Supplies (SMPS): Enhances stability during voltage transients.
    - Industrial Control Systems: Reduces noise on power lines to prevent malfunctions.
    Usage Tips:
    1. Ensure proper soldering and handling to avoid physical damage.
    2. Mount the capacitors across the mains voltage directly, avoiding series configurations unless specifically approved.
    3. Monitor operating temperatures to ensure compliance with the recommended 105°C maximum limit.
    4. Use the recommended hole pattern and mechanical strength testing during PCB layout.
    5. Compatibility and Support
    - Compatibility: The capacitor is compatible with most standard PCB manufacturing processes, including wave soldering.
    - Support: Würth Elektronik provides detailed design guides, CAD models, and simulation tools via its online portal, enabling seamless integration into electronic designs.
    - Maintenance: Standard warranty and support are provided for all products.
    6. Common Issues and Solutions
    | Issue | Solution |

    | Reduced solderability after long storage | Replace capacitors older than 12 months |
    | Excessive heat generation | Verify circuit design complies with thermal limits |
    | Electromagnetic interference persists | Ensure proper grounding and shieldin

890324025034CS参数

参数
电容值 330nF
容差 ±10%
介电材料 聚丙烯
ESR-等效串联电阻 -
额定电压-AC 275V
额定电压-DC -
长*宽*高 18mm*8.5mm*15mm
安装方式 通孔安装
零件状态 在售
包装方式 散装
