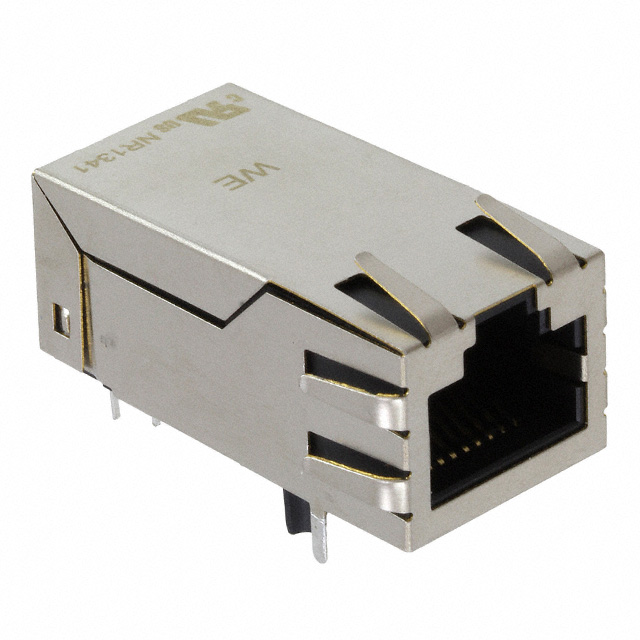

7499111000A

厂牌: WURTH
产品描述: Conn RJ-45 RCP 8 POS 2.54mm Solder RA Thru-Hole 12 Terminal 1 Port
供应商型号: BN-7499111000A
供应商: 海外现货
标准整包数: 1

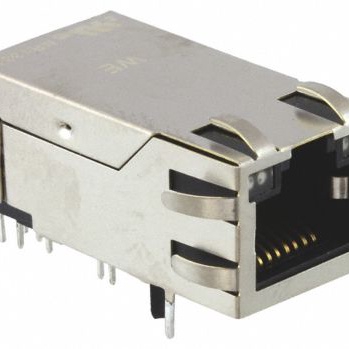

WURTH 模块化连接器 - 磁性插孔 7499111000A

7499111000A概述

    WE-RJ45LAN Auto Transformer: A Comprehensive Guide
    Product Introduction
    The WE-RJ45LAN autotransformer is an innovative electronic component designed for applications requiring efficient data transmission in standard electronic devices. This product serves as an integral part of networks and communication systems, facilitating Ethernet connectivity through RJ45 interfaces. Its primary function involves isolating and protecting connected devices while ensuring smooth signal flow, making it ideal for use in networking hardware such as routers, switches, and modems.
    Technical Parameters
    The WE-RJ45LAN autotransformer is meticulously engineered with precise dimensions and robust construction:
    - Dimensions (mm): Length = 16.6 ± 0.2 mm; Width = 13.8 ± 0.2 mm; Height = 32.8 ± 0.3 mm.
    - Recommended Hole Pattern:
    - Pin spacing: 6x1mm, 12x1mm, 7x1mm.
    - Panel cutout: 17.55 x 14.25 mm.
    - Electrical Properties:
    - Inductance (L): Minimum 350 µH at 100 kHz, 100 mV @ 8 mA.
    - Insulation Test Voltage: 1500 V (RMS) for 1 minute.
    - Insertion Loss: ≤-1 dB from 1 MHz to 100 MHz.
    - Return Loss: ≥-18 dB from 1 MHz to 30 MHz; ≥-14 dB from 30 MHz to 60 MHz; ≥-10 dB from 60 MHz to 80 MHz; ≥-9 dB from 80 MHz to 100 MHz.
    - Crosstalk: ≥-30 dB from 1 MHz to 100 MHz; ≥-15 dB from 100 MHz to 500 MHz.
    - Common Mode Rejection Ratio (CMRR): ≥-30 dB from 1 MHz to 100 MHz; ≥-24 dB from 100 MHz to 250 MHz; ≥-20 dB from 250 MHz to 500 MHz.
    - Data Rate: Compatible with 1000BASE-T.
    Product Features and Advantages
    The WE-RJ45LAN autotransformer stands out due to its superior performance characteristics:
    - High Reliability: Ensures consistent performance under various environmental conditions.
    - Compact Design: Facilitates integration into compact devices without compromising functionality.
    - EMI Protection: Offers excellent electromagnetic interference shielding.
    - Thermal Management: Effective heat dissipation minimizes thermal stress on components.
    - Compliance: Meets RoHS, REACH, and cURus standards, ensuring environmental compliance and safety.
    Application Cases and Usage Recommendations
    This autotransformer is widely used in networking equipment where reliable Ethernet connections are critical. For instance:
    - Home Networking: Ideal for residential routers and access points.
    - Industrial Applications: Suitable for factory automation systems requiring robust network infrastructure.
    - Telecommunications: Enhances signal integrity in telecommunication hubs.
    Usage Suggestions:
    - Ensure proper alignment of pins during installation to prevent misalignment issues.
    - Use the recommended hole pattern to maintain structural integrity.
    - Implement adequate cooling mechanisms to handle prolonged operation.
    Compatibility and Support
    The WE-RJ45LAN autotransformer is compatible with a variety of electronic boards and systems adhering to standard RJ45 interfaces. Würth Elektronik provides comprehensive support including detailed documentation, technical assistance, and warranty services to ensure seamless integration into customer designs.
    Common Issues and Solutions
    Some common challenges users might face include:
    - Poor Soldering: Ensure adherence to the specified soldering profile to avoid solder bridges or cold joints.
    - Signal Degradation: Verify correct pin configurations and check for any physical damage post-soldering.
    - Component Heating: Monitor ambient temperatures to prevent overheating, especially in dense installations.
    Solutions:
    - Follow the manufacturer’s guidelines strictly when handling and installing the component.
    - Regularly inspect the solder joints for quality assurance.
    Conclusion and Recommendation
    The WE-RJ45LAN autotransformer is a highly reliable solution for Ethernet interfacing, offering exceptional performance and durability. Its compatibility, robu

7499111000A参数

参数
长*宽*高 16.79mm*15.79mm*33.02mm
安装方式 通孔安装
零件状态 在售
包装方式 管装
