P0499

产品分类: 开发配件
产品描述: GPIO,I2C,SPI,UART,USB
供应商型号: SG-P0499
供应商: 期货订购
标准整包数: 1
TERASIC/武汉友晶科技 开发配件 P0499

P0499概述

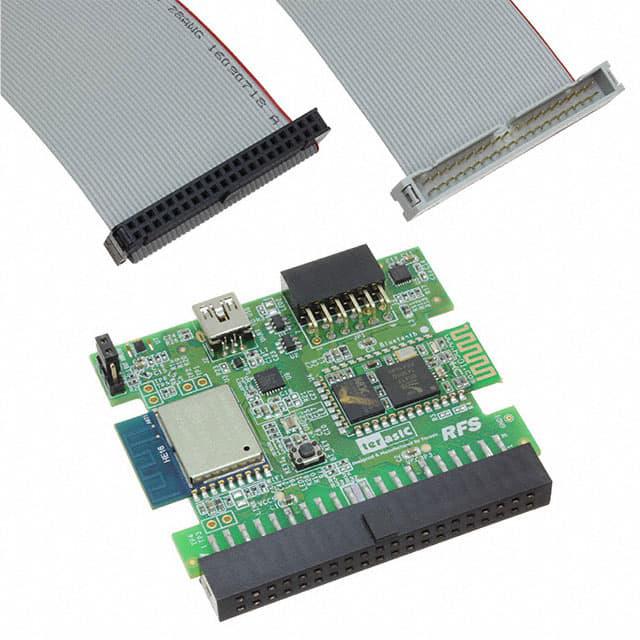

    Comprehensive Analysis of the SMK RFS Daughter Card
    1. Product Introduction
    The RFS (Radio Frequency and Sensor) Daughter Card is an advanced electronic component designed for wireless control, environment monitoring, and IoT (Internet of Things) applications. This card connects to FPGA development kits via a standard 2x20 Pin GPIO connector. The RFS daughter card integrates multiple wireless communication modules, sensors, and interfaces essential for modern IoT solutions.
    Key Features:
    - Wireless Communication: Supports both Wi-Fi (using the ESP8266 module) and Bluetooth (via the HC-05 module).
    - Sensor Integration: Includes multiple sensors such as an ambient light sensor, temperature and humidity sensor, and a 9-axis sensor (combining accelerometer, magnetometer, and gyroscope).
    - Interface Options: Equipped with a UART-to-USB interface for seamless communication with a Host PC.
    - GPIO Header: Offers additional functionality via a 2x6 TMD GPIO Header.
    Applications:
    The RFS daughter card finds use in a wide range of fields including smart home systems, industrial automation, wearable devices, and environmental monitoring systems.
    2. Technical Parameters
    Below are the technical specifications and performance parameters of the RFS daughter card:
    | Parameter | Details |

    | Wireless Communication | Wi-Fi (ESP8266), Bluetooth SPP (HC-05) |
    | Sensors | Ambient light sensor, temperature/humidity sensor, 9-axis sensor (accelerometer, magnetometer, gyroscope) |
    | Power Supply | Powered by FPGA mainboard's 3.3V source except for the UART-to-USB chip |
    | Operating Voltage | 3.3V |
    | Interface | 2x20 GPIO header, UART-to-USB (4-pin UART), Bluetooth (2-pin UART), Wi-Fi (4-pin UART) |
    | Operating Environment | -20°C to 85°C temperature range |
    | UART Baud Rate | 115,200 bps |
    3. Product Characteristics and Advantages
    The RFS daughter card stands out due to its robust integration of multiple functionalities and ease of integration into existing FPGA platforms. Its unique features include:
    - Multi-Sensor Support: Combining multiple sensors into one compact design simplifies hardware development and reduces cost.
    - Versatile Connectivity: Supports both Wi-Fi and Bluetooth, enabling wireless connectivity options tailored to specific needs.
    - User-Friendly Design: Simple configuration through UART communication facilitates quick prototyping and testing.
    - Cross-Platform Compatibility: Works seamlessly with Terasic’s range of FPGA boards, ensuring broad application possibilities.
    These characteristics make the RFS daughter card a highly competitive solution in the IoT and wireless control market.
    4. Application Scenarios and Recommendations
    The RFS daughter card excels in applications requiring wireless communication and multi-sensor integration, such as:
    - Smart Home Automation: Control lighting, HVAC systems, or security cameras remotely.
    - Environmental Monitoring: Measure temperature, humidity, and ambient light levels for agriculture or indoor climate management.
    - Industrial IoT Devices: Implement wireless sensors for predictive maintenance or asset tracking.
    Recommendations for Use:
    - When selecting a wireless protocol, consider whether Wi-Fi (for high bandwidth) or Bluetooth (for low-power requirements) better suits your application.
    - Integrate the RFS daughter card early in the development cycle to maximize the benefits of its integrated sensors and wireless capabilities.
    5. Compatibility and Support
    The RFS daughter card is compatible with various Terasic FPGA b

P0499参数

参数
配件类型 -
接口 GPIO,I2C,SPI,UART,USB
零件状态 在售
包装方式 散装
