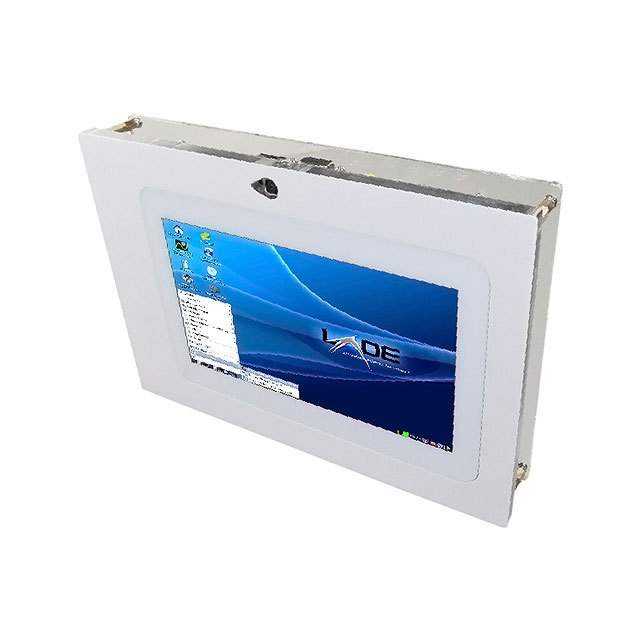

K0161

产品分类: 开发配件
产品描述:
供应商型号: 993-K0161
供应商: Mouser
标准整包数: 1
TERASIC/武汉友晶科技 开发配件 K0161

K0161概述

    Cyclone V Device Technical Overview
    Product Introduction
    The Cyclone® V series from Intel is a family of field-programmable gate arrays (FPGAs) designed for a wide range of applications including industrial automation, communication systems, embedded processing, and video processing. These devices offer superior flexibility and customization capabilities compared to fixed-function ASICs. Cyclone V FPGAs are distinguished by their combination of logic density, transceiver performance, and support for hybrid FPGA architectures (HPS) with integrated ARM Cortex-A9 dual-core processors. The devices come in multiple configurations such as –C6 (fastest), –C7, –C8 (commercial grades), –I7 (industrial grade), and –A7 (automotive grade).
    The Cyclone V series supports a variety of I/O standards including LVDS, PCIe, SATA, and MIPI, making it suitable for both low-end and mid-range applications. It is available in both commercial and industrial temperature ranges, ensuring reliable operation across various environmental conditions.
    Technical Parameters
    Below is a concise summary of key technical specifications extracted from the Cyclone V Device Datasheet:
    - Core Voltage Range: 1.07V to 1.13V (devices without internal scrubbing), 1.12V to 1.18V (devices with internal scrubbing).
    - Power Supply Voltage: VCCIO ranges from 1.2V to 3.3V.
    - Transceiver Specifications:
    - VCCHGXBL: 2.375V to 2.625V.
    - VCCEGXBL & VCCLGXBL: 1.07V to 1.23V.
    - Transceiver Speed: Up to 6.144 Gbps for CPRI compliance.
    - HPS (Hard Processor System):
    - VCCHPS: 1.07V to 1.13V.
    - HPS Core Voltage: Compatible with ARM Cortex-A9 processor.
    - Operating Temperature Range: Commercial: 0°C to 85°C, Industrial: –40°C to 100°C, Automotive: –40°C to 125°C.
    - Configuration: Supports multiple schemes like Active Serial (AS), Passive Serial (PS), and JTAG, with minimum configuration times down to 3 ms.

    Product Features and Advantages
    Cyclone V devices are engineered with several standout features:
    - Low Power Consumption: The low-power variants (L power option) provide up to 30% reduction in static power for smaller devices and 20% for larger devices.
    - Hybrid Architecture: Integrated HPS ensures optimized performance for processing-intensive tasks while retaining FPGA flexibility.
    - High-Speed Transceivers: Supporting up to 6.144 Gbps for CPRI applications, the Cyclone V series is well-suited for next-generation communication systems.
    - Enhanced Reliability: Absolute maximum ratings safeguard the device against transient voltages and current surges.
    Application Case Studies and Recommendations
    Cyclone V FPGAs are deployed in several real-world applications:
    1. Wireless Base Stations: Their high-speed transceivers make them ideal for baseband processing in mobile networks.
    2. Video Processing Systems: Integration with HPS provides excellent video encoding/decoding capabilities.
    3. Industrial Automation: Utilizing the rugged industrial temperature range and deterministic behavior makes Cyclone V a reliable choice for control systems.
    Usage Suggestions: When designing systems involving Cyclone V, ensure power supply voltages are stable and within specified tolerances. Additionally, implement proper heat dissipation strategies, especially in industrial and automotive environments.
    Compatibility and Support
    Cyclone V devices are compatible with various peripheral devices due to their flexible I/O configurations. Intel provides comprehensive documentation and support tools, including Quartus Prime software for design development, as well as detailed technical notes addressing common issues.
    Common Issues and Solutions
    | Problem | Solution |

    | Configuration fails | Verify that VCCIO and VCCPD voltages a

K0161参数

参数
配件类型 -
接口 -
零件状态 在售
包装方式 散装

K0161厂商介绍

TerasIC是一家领先的半导体公司,专注于为人工智能(AI)和机器学习(ML)应用提供高性能、低功耗的FPGA(现场可编程门阵列)解决方案。公司的产品线涵盖了从入门级到高端的FPGA产品,包括但不限于:

1. AI加速器:专为深度学习、图像识别和自然语言处理等AI应用设计的FPGA。

2. 通信接口:提供高速数据传输解决方案,适用于5G、数据中心和网络设备。

3. 工业控制:为工业自动化和智能制造提供稳定可靠的FPGA解决方案。

4. 汽车电子:为自动驾驶、车载信息娱乐系统等提供高性能计算平台。

TerasIC的优势在于:

- 定制化服务:根据客户需求提供定制化的FPGA解决方案。
- 低功耗设计:优化的FPGA设计,以实现更低的能耗。
- 高性能计算:提供高性能的计算能力,满足复杂算法的需求。
- 快速上市:缩短产品开发周期,帮助客户快速将产品推向市场。

TerasIC致力于通过其创新的FPGA技术,推动AI和ML技术的发展,并在多个领域实现突破。

K0161数据手册

厂牌 PDF简要描述 下载
TERASIC/武汉友晶科技 开发配件 TERASIC/武汉友晶科技 K0161 K0161数据手册

K0161封装设计

查看详情并下载
Symbol
Footprint
3D Model
价格梯度 中国香港交货 内地交货(含增值税)
1+ $ 971.946 ¥ 8212.9437
库存: 2
起订量: 1 增量: 1
交货地:
最小起订量为:1
合计: ¥ 8212.94
直接购买
加入购物车
