P0633

产品分类: 开发配件
产品描述:
供应商型号: 771-P0633-ND
供应商: Digi-Key
标准整包数: 1
TERASIC/武汉友晶科技 开发配件 P0633

P0633概述

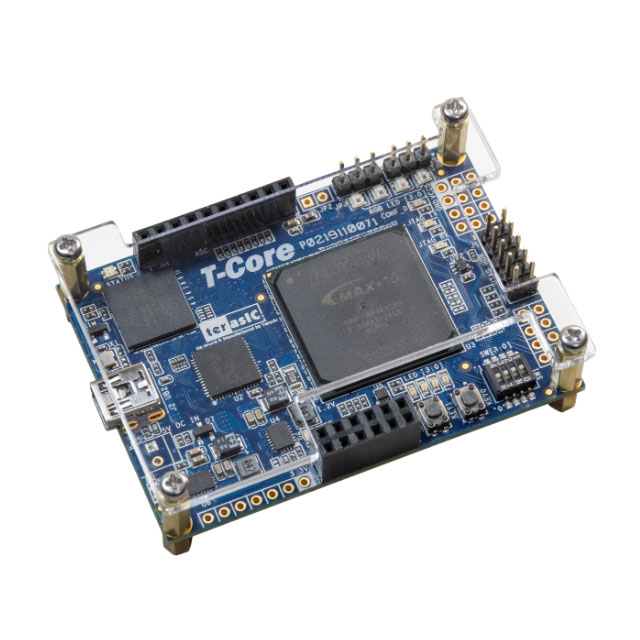

    # T-Core MAX 10 FPGA Development Board User Guide
    Product Introduction
    The T-Core is a versatile development board centered around the Intel MAX 10 FPGA, a highly capable device designed for cost-effective and flexible applications in control planes and data paths. With its low power consumption and high performance, it serves as an ideal choice for high-volume applications like protocol bridging, motor control, analog-to-digital conversion, and portable devices.
    The T-Core integrates numerous features on a single board, enabling developers to showcase, evaluate, and prototype the capabilities of the MAX 10 FPGA. Additionally, it offers support for RISC-V CPUs with on-board JTAG debugging, making it a top-tier platform for RISC-V learning and embedded system development.
    Key Features:
    - FPGA Device: Intel MAX 10 10M50DAF484C7G with 50K logic elements and 1.638M bits of memory.
    - On-board Resources: Dual ADCs, QSPI Flash, RGB LEDs, GPIO expansion headers, and push buttons.
    - Support for RISC-V CPU: On-board JTAG debugging.
    - Compatibility: Applications spanning industrial controls, multimedia projects, and educational purposes.
    Technical Parameters
    The T-Core board comes with a comprehensive set of technical specifications, summarized below:
    | Parameter | Value |

    | FPGA Type | Intel MAX 10 10M50DAF484C7G |
    | Logic Elements | 50,000 |
    | Memory (M9K) | 1,638 KB |
    | User Flash Memory | 5,888 KB |
    | Multiplier | 144 x 18-bit |
    | Clock Pins | 2 x 50 MHz; 1 x 24 MHz; 1 x 10 MHz|
    | ADC Support | 2 x Dual ADCs |
    | Voltage Supply | 5V via USB or external connector |
    | Operating Temperature | -40°C to +85°C |
    | Power Consumption | < 300 mW |
    Product Features and Advantages
    The T-Core offers several standout features and advantages:
    - Versatility: Capable of handling a wide range of applications, from simple circuits to complex multimedia systems.
    - Programmability: Offers both JTAG configuration and internal flash storage options for flexible programming.
    - Advanced Debugging: Supports on-board RISC-V CPU debugging with JTAG interfaces.
    - Educational Platform: Provides an ideal learning environment for students and developers exploring FPGA and RISC-V technology.
    - Cost Efficiency: Offers advanced functionality at an affordable price point, making it suitable for both hobbyists and professional engineers.
    Application Cases and Usage Suggestions
    The T-Core board finds application across multiple domains, including educational labs, prototyping, and embedded system development. Here are some suggested usage scenarios:
    1. Learning and Education: Ideal for teaching FPGA programming basics and RISC-V architecture due to its integrated JTAG debugger and comprehensive documentation.
    2. Multimedia Projects: Use the RGB LEDs and ADCs to build interactive lighting systems or audio processing applications.
    3. Embedded Prototypes: Develop prototypes requiring real-time logic execution, utilizing the MAX 10 FPGA's high-speed capabilities.
    To optimize performance, ensure that the external clock source remains stable and avoid modifying default clock configurations. Additionally, thoroughly test the LED drivers and GPIO interfaces during initial setup.
    Compatibility and Support
    The T-Core is designed to seamlessly integrate with a variety of peripheral devices and tools. It supports the Quartus Prime IDE for MAX 10 FPGA programming and the open-source GNU toolchain for RISC-V development. Terasic provides comprehensive support through their official website and customer service channels.

P0633参数

参数
配件类型 -
接口 -
包装方式 盒装

P0633厂商介绍

TerasIC是一家领先的半导体公司,专注于为人工智能(AI)和机器学习(ML)应用提供高性能、低功耗的FPGA(现场可编程门阵列)解决方案。公司的产品线涵盖了从入门级到高端的FPGA产品,包括但不限于:

1. AI加速器:专为深度学习、图像识别和自然语言处理等AI应用设计的FPGA。

2. 通信接口:提供高速数据传输解决方案,适用于5G、数据中心和网络设备。

3. 工业控制:为工业自动化和智能制造提供稳定可靠的FPGA解决方案。

4. 汽车电子:为自动驾驶、车载信息娱乐系统等提供高性能计算平台。

TerasIC的优势在于:

- 定制化服务:根据客户需求提供定制化的FPGA解决方案。
- 低功耗设计:优化的FPGA设计,以实现更低的能耗。
- 高性能计算:提供高性能的计算能力,满足复杂算法的需求。
- 快速上市:缩短产品开发周期,帮助客户快速将产品推向市场。

TerasIC致力于通过其创新的FPGA技术,推动AI和ML技术的发展,并在多个领域实现突破。

P0633数据手册

厂牌 PDF简要描述 下载
TERASIC/武汉友晶科技 开发配件 TERASIC/武汉友晶科技 P0633 P0633数据手册

P0633封装设计

查看详情并下载
Symbol
Footprint
3D Model
