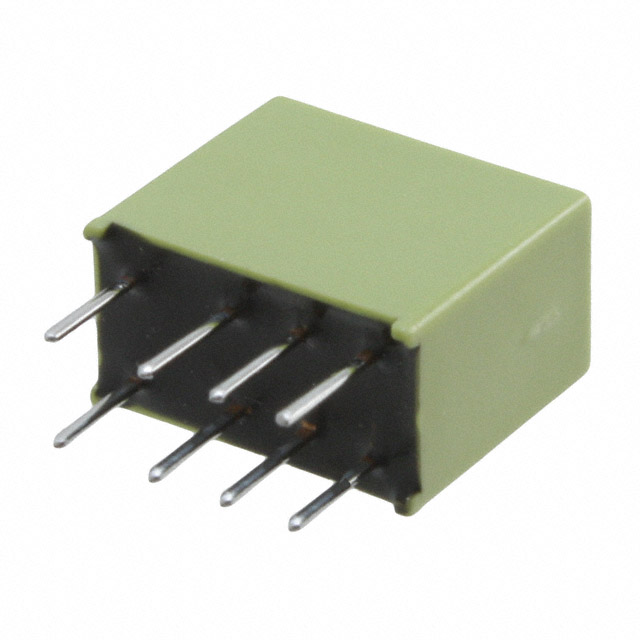

AGN20006

产品分类: 信号继电器
厂牌: PANASONIC
产品描述: 4ms 4ms 1A 110V 6V DPDT(2 Form C) 257Ω 23.3mA 125V DIP 通孔安装
供应商型号: AGN20006
供应商: Master
标准整包数: 50
PANASONIC 信号继电器 AGN20006

AGN20006概述

    # Panasonic GN (AGN) Relays Technical Overview
    Product Introduction
    Panasonic's GN series (AGN) relays represent a sophisticated category of electromechanical switches designed for both efficiency and reliability in various applications. These slim body-type relays are ideal for compact designs, with a footprint of just 10.6 mm x 5.7 mm x 9.0 mm. Their primary features include high sensitivity, nominal operating power of 100 mW, and two form C contacts with a current capacity of 1 A. The GN series supports diverse operating environments, making them suitable for applications such as telecommunications, security systems, test and measurement devices, and consumer electronics.
    Technical Parameters
    Below are the technical specifications extracted from the Panasonic AGN relays’ data sheet:
    General Specifications:
    - Operating Power: 100 mW
    - Size: 10.6 (L) × 5.7 (W) × 9.0 (H) mm
    - Nominal Operating Voltage Range: 1.5 V to 24 V DC
    - Contact Arrangement: 2 Form C
    - Current Capacity: 1 A per contact
    Electrical Characteristics:
    - Switching Voltage: Up to 30 V DC or AC 125 V
    - Switching Current: Up to 1 A
    - Dielectric Strength:
    - Between terminals and coil: 1,500 V (10×60 s)
    - Between terminals: 2,500 V (2×60 s)
    Mechanical Performance:
    - Pick-up Voltage: Minimum 0.6 V, Maximum 1.2 V (relative to rated voltage)
    - Drop-out Voltage: Minimum 0.3 V, Maximum 0.6 V (relative to rated voltage)
    - Life Span: Over 10 million operations under rated conditions
    - Operating Time: Less than 30 ms
    - Release Time: Less than 20 ms
    Environmental Requirements:
    - Operating Temperature: -40°C to +85°C
    - Storage Temperature: -40°C to +85°C
    - Relative Humidity: 5% to 85% RH (Non-condensing)
    Product Features and Advantages
    The Panasonic GN series offers several distinct advantages:
    1. High Sensitivity: With a nominal operating power of 100 mW, these relays require less energy compared to conventional types.
    2. Compact Design: The slim profile ensures they can fit into space-constrained applications.
    3. Reliable Contact Mechanism: Twin crossbar contacts guarantee enhanced contact stability and reliability.
    4. Outstanding Surge Protection: Withstood voltage ratings exceeding industry standards ensure robust performance under transient conditions.
    5. Wide Application Scope: Suitable for telecommunications, security systems, and other industrial electronics requiring reliable switching mechanisms.
    Application Cases and Usage Recommendations
    The Panasonic GN relays are widely used in telecommunication equipment, security devices, and test equipment due to their compatibility with sensitive electronics. For optimal performance, the following recommendations are suggested:
    - Ensure proper cooling if operating in extreme temperatures to maintain coil efficiency.
    - Avoid condensation and icing by keeping the working environment within specified limits.
    - Implement redundancy checks in critical circuits to mitigate potential failures.
    Compatibility and Support
    These relays are compatible with standard PCB layouts and surface mount technologies (SMT). Panasonic provides comprehensive documentation and support, including CAD files accessible via their official website. Additionally, users can access detailed guidelines on signal relay usage and precautions for coil input through Panasonic’s online resources.
    Common Issues and Solutions
    | Issue | Solution |

    | Inadequate pick-up voltage | Verify coil voltage matches the device requirements. |
    | Premature wear of contacts | Regular maintenance or replacement based on life expectancy. |
    | Unexpected coil overheating | Ensure proper ventilation and avoid prolonged operation without sw

AGN20006参数

参数
负载电流额定值 -
最大开关电流 1A
线圈电流 23.3mA
直流线圈电压 6V
插入损耗 -
线圈电阻 257Ω
触头外形 DPDT(2 Form C)
交流开关电压 125V
直流开关电压 110V
绝缘 -
运行时间 4ms
释放时间 4ms
交流线圈电压 -
通用封装 DIP
安装方式 通孔安装
零件状态 在售
包装方式 管装
