OM13088UL

产品分类: 开发板
厂牌: NXP SEMICONDUCTORS
产品描述: LPC4300微控制器开发板
供应商型号: 568-OM13088UL-ND
供应商: Digi-Key
标准整包数: 1

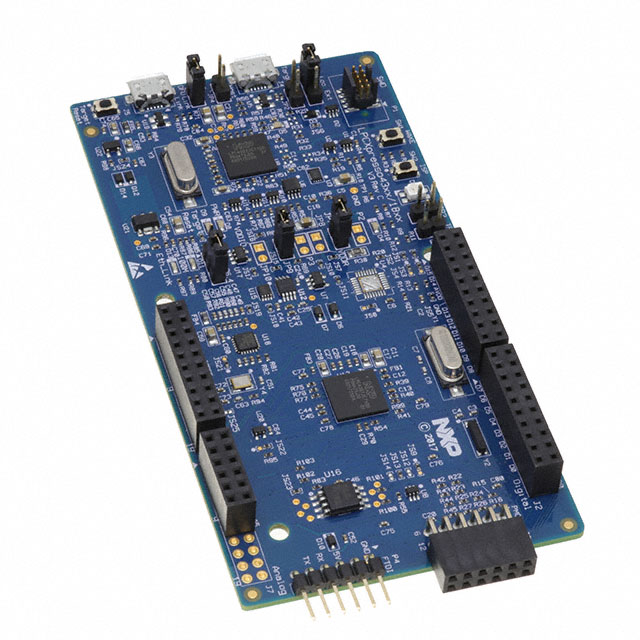

NXP SEMICONDUCTORS 开发板 OM13088UL

OM13088UL概述

    Comprehensive Analysis of the LPCXpresso4367 Board
    Product Introduction
    The LPCXpresso4367 board, manufactured by NXP Semiconductors, serves as a powerful development platform tailored for the evaluation and prototyping of NXP's advanced Cortex-M family microcontrollers. Specifically designed for the LPC4367, LPC43S67, and LPC18S37 families, this board facilitates seamless integration with various development tools such as NXP’s LPCXpresso IDE, Keil, and IAR Embedded Workbench. Its robust design supports a broad spectrum of applications, from IoT to industrial automation.
    Key features include:
    - On-board debug probe supporting ARM’s CMSIS-DAP and SEGGER J-Link protocols.
    - Current measurement capability for real-time power analysis.
    - Multiple expansion options like Arduino UNO and PMod™ interfaces.
    - Integrated peripherals such as Ethernet PHY, Flash storage, and Secure Element (on specific models).
    Technical Parameters
    | Parameter | Specification |

    | Microcontroller | LPC4367, LPC43S67, LPC18S37 |
    | Flash Memory | 8MB Quad SPI Flash |
    | Operating Voltage | +5V |
    | Dimensions | 85mm x 50mm |
    | Temperature Range | -40°C to +85°C |
    | Communication Interfaces | UART, I2C, SPI, USB |
    | On-board Debug Probe | Link2 |
    | Ethernet Support | Yes, LAN8720A |
    These specifications highlight the versatility and performance of the LPCXpresso4367, making it ideal for demanding embedded systems projects.
    Product Features and Advantages
    The LPCXpresso4367 boasts several standout features that enhance its appeal:
    1. Dual Debug Protocol Support: Users can choose between CMSIS-DAP and J-Link protocols, offering flexibility depending on their preferred development environment.
    2. Current Measurement Capability: Equipped with current sense resistors, it enables precise monitoring of power consumption during low-power modes.
    3. Comprehensive Expansion Options: Compatibility with Arduino UNO and PMod™ ensures adaptability to diverse project requirements.
    4. Integrated Security: The inclusion of the A7001CM Secure Element enhances data protection for sensitive applications.
    Its ability to operate across a wide temperature range and support multiple communication protocols underscores its robustness and adaptability.
    Application Case Studies and Usage Tips
    The LPCXpresso4367 finds utility in numerous fields:
    - IoT Solutions: Its Ethernet capabilities make it suitable for building networked devices.
    - Industrial Automation: High-precision current measurement aids in optimizing energy efficiency.

    Usage Tips:
    - For initial setup, ensure the correct jumper configurations are set according to the application needs.
    - Always consult the latest documentation to leverage updated functionalities and security measures.
    Compatibility and Support
    The LPCXpresso4367 is highly compatible with a variety of third-party tools and libraries, facilitating easy integration into existing ecosystems. NXP offers comprehensive support through its extensive knowledge base and customer service channels, ensuring long-term reliability and assistance.
    Common Issues and Solutions
    | Problem | Solution |

    | Board not detected by host | Ensure proper jumper settings and restart |
    | Flash write errors | Verify correct protocol selection |
    | Unexpected resets | Check power supply stability |
    Addressing these issues

OM13088UL参数

参数
协议 -
接口 I2C,QSPI,UART,USB
处理器 -
供电 -
芯片平台 LPC4367
运行内存 -
主频 -
安装方式 固定安装
零件状态 在售
包装方式 散装

OM13088UL厂商介绍

NXP Semiconductors是一家全球领先的半导体公司,总部位于荷兰。公司专注于提供高性能、安全和互联的解决方案,以推动智能生活和智能城市的发展。NXP的产品广泛应用于汽车、工业和物联网(IoT)、移动设备、通信基础设施等多个领域。

主营产品分类包括:
1. 微控制器(MCU):广泛应用于嵌入式系统,如智能家居、工业自动化等。
2. 射频(RF)和无线技术:包括NFC、蓝牙等,用于无线通信和数据传输。
3. 汽车电子:为汽车提供安全、连接和动力管理解决方案。
4. 安全解决方案:包括安全元件和软件,保护数据和交易安全。
5. 分立器件和传感器:用于各种检测和测量应用。

NXP Semiconductors的优势在于:
- 强大的研发能力:持续投入研发,推动技术创新。
- 广泛的产品线:提供多样化的产品,满足不同市场需求。
- 深厚的行业经验:在多个领域拥有丰富的经验和专业知识。
- 全球化布局:在全球范围内设有研发中心和生产基地,为客户提供本地化服务。

OM13088UL数据手册

厂牌 PDF简要描述 下载
NXP SEMICONDUCTORS 开发板 NXP SEMICONDUCTORS OM13088UL OM13088UL数据手册

OM13088UL封装设计

查看详情并下载
Symbol
Footprint
3D Model
