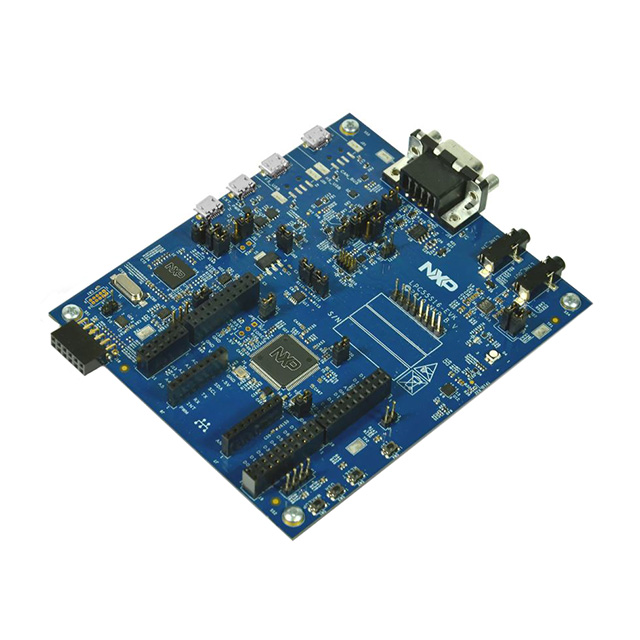

LPC55S16-EVK

产品分类: 开发板
厂牌: NXP SEMICONDUCTORS
产品描述: LPC55S1x微控制器开发板
供应商型号: 3385150
供应商: element14
标准整包数: 1
NXP SEMICONDUCTORS 开发板 LPC55S16-EVK

LPC55S16-EVK概述

    LPCXpresso55S16 Development Board Technical Overview
    1. Product Introduction
    The LPCXpresso55S16 Development Board is a comprehensive evaluation and development platform designed for the LPC55S1x family of microcontrollers (MCUs) manufactured by NXP Semiconductors. This board supports rapid prototyping and development of applications leveraging the Cortex-M33 core, offering a powerful blend of performance, flexibility, and connectivity. The board targets developers in fields such as industrial automation, consumer electronics, IoT devices, and embedded systems.
    Key features of the LPCXpresso55S16 include:
    - Main Processor: LPC55S16 Cortex-M33 MCU.
    - Onboard Debugging: Supports both CMSIS-DAP and SEGGER J-Link protocols.
    - Versatile Interfaces: Includes UART, SPI, I2C, CAN-FD, and audio codec functionalities.
    - Expansion Options: Compatible with Arduino UNO, Mikroe Click, and PMod platforms.
    - Audio & Connectivity: Integrated stereo audio codec and USB Host/Device support.
    2. Technical Parameters
    Below are key technical specifications for the LPCXpresso55S16 Development Board:
    | Parameter | Value |

    | Processor | LPC55S16 Cortex-M33 |
    | Operating Voltage | 3.3V |
    | Input Power | Micro USB (5V) |
    | USB Support | Full Speed (USB0) & High Speed (USB1) |
    | Processor Clock | Up to 120 MHz |
    | Digital I/O Pins | Multiple GPIO and alternative functions|
    | Memory | Flash: 512 KB, RAM: 192 KB |
    | Peripherals | SPI, UART, I2C, CAN-FD, ADC, DAC |
    | Operating Temperature| -40°C to +85°C |
    The board operates in an environment with temperatures ranging from -40°C to +85°C, making it suitable for various industrial and outdoor applications.
    3. Product Features and Advantages
    The LPCXpresso55S16 offers several standout features that differentiate it from competitors:
    - Flexible Debugging Options: Supports multiple protocols (CMSIS-DAP, J-Link) for diverse debugging environments.
    - Rich Connectivity: Dual USB interfaces for host and device functionality, along with CAN-FD and stereo audio capabilities.
    - Comprehensive Expansion: Offers compatibility with Arduino, Mikroe Click, and PMod ecosystems, expanding project possibilities.
    - Accurate Sensor Integration: Integrated NXP FXOS8700 accelerometer enhances sensing capabilities in smart devices.
    - User-Friendly: Onboard RGB LED and physical buttons simplify debugging and user interaction.
    These features make the LPCXpresso55S16 ideal for prototyping projects requiring high integration, low power consumption, and robust performance.
    4. Application Case Studies and Usage Suggestions
    The LPCXpresso55S16 is particularly suited for:
    - Industrial Automation: Implementing CAN-FD for robust vehicle communication.
    - Consumer Electronics: Leveraging the audio codec for compact speaker systems.
    - IoT Devices: Enabling low-power sensor nodes with rich GPIO support.
    Usage Suggestions:
    - For audio projects, pair the board with external speakers via the audio codec line-in and line-out ports.
    - Utilize the expansion connectors for rapid integration of additional sensors or peripherals.
    - Use the ISP button and external debug probe configurations for efficient firmware updates.
    5. Compatibility and Support
    The LPCXpresso55S16 is compatible with multiple third-party development tools such as MCUXpresso IDE, Keil uVision, and IAR Embedded Workbench. NXP provides extensive documentation, tutorials, and software downloads via its website. Additionally, the board's firmware can be easily updated using tools like LPCScrypt, ensuring developers always have access to the latest features and bug fixes.
