114010

产品分类: 背板连接器 - 专用
厂牌: TE CONNECTIVITY

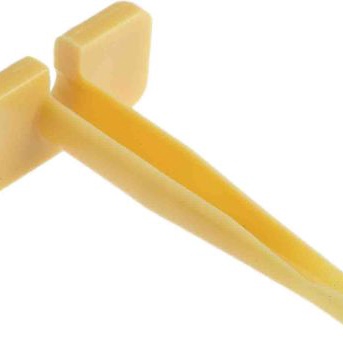

产品描述: Deutsch 端子退针器, AEC, DRC, DTHD, HD10, HD30, HDP20, Jiffy Splice, WT系列, 12触点, 0.202in宽尖头
供应商型号: 114010
供应商: 云汉优选
标准整包数: 1
TE CONNECTIVITY 背板连接器 - 专用 114010

114010概述

    Deutsch HD10 Series Technical Manual: Comprehensive Overview
    Product Introduction
    The Deutsch HD10 Series represents a versatile range of environmentally sealed cylindrical connectors designed primarily for heavy-duty applications across various industries. These connectors are ideal for use in harsh environments where resistance to moisture, dust, and other contaminants is crucial. They are commonly employed in sectors such as heavy equipment, agriculture, transportation, robotics, and communication systems.
    Key features include rugged thermoplastic shells, quick-tricam locking mechanisms, and multiple contact configurations that cater to a variety of electrical requirements. The HD10 Series connectors are crafted to maintain high-performance standards under extreme conditions, making them an essential choice for ensuring reliable connections.
    Technical Parameters
    - Temperature Range: Operates effectively between -55°C to +125°C.
    - Durability: Maintains functionality without any electrical or mechanical defects after 100 cycles of engagement/disengagement.
    - Current Rating:
    - Size 16: 13 amps continuous
    - Size 12: 25 amps continuous
    - Size 4: 100 amps continuous
    - Insulation Resistance: Minimum 1000 megohms at 250°C.
    - Vibration: Withstands 20g's of sinusoidal vibration over 10 to 2000 Hz without unlocking or physical damage.
    - Submersion: Immersed up to 3 feet underwater without loss of function or leakage.
    The HD10 Series utilizes crimp-type or stamped-and-formed contacts, providing reliable performance even in demanding conditions. The connectors are compatible with wires ranging from 6 to 20 AWG, supporting diverse wiring needs.
    Product Features and Advantages
    The Deutsch HD10 Series offers several advantages over traditional connectors:
    - Ease of Assembly: Features a tricam coupling mechanism allowing for rapid mating and unmating.
    - Cost Efficiency: Lower cost compared to other premium connectors while maintaining superior performance.
    - Durability and Reliability: Designed to last through numerous engagement cycles without degradation.
    - Compatibility: Available in multiple configurations including square flange and inline receptacles.
    These features make the HD10 Series not only cost-effective but also highly reliable in mission-critical applications.
    Application Cases and Usage Tips
    The HD10 Series finds extensive use in agricultural machinery, construction vehicles, and maritime applications. For instance, in farming equipment, they ensure uninterrupted power supply despite frequent exposure to soil particles and moisture. Similarly, in offshore oil rigs, their robust design prevents corrosion caused by sea water.
    To maximize effectiveness, users should adhere strictly to the specified wire gauges and insulation ranges during installation. Regular inspections post-installation are recommended to verify the integrity of connections.
    Compatibility and Support
    These connectors exhibit excellent compatibility with a wide array of electronic components due to their standardized contact sizes and materials. Deutsch Industrial provides comprehensive support, including engineering assistance, prototyping services, and after-sales maintenance.
    Common Issues and Solutions
    Common issues include improper seating of contacts leading to poor conductivity. Solution: Ensure correct stripping length and crimping pressure according to specifications. Another issue could be loosening due to vibration; solution: tighten coupling rings securely after installation.
    Conclusion and Recommendation
    In summary, the Deutsch HD10 Series connectors stand out as reliable, durable solutions for demanding environments. Their combination of affordability, ease of use, and environmental resilience makes them a strong recommendation for industries requiring dependable interconnectivity. If your project demands robust c
