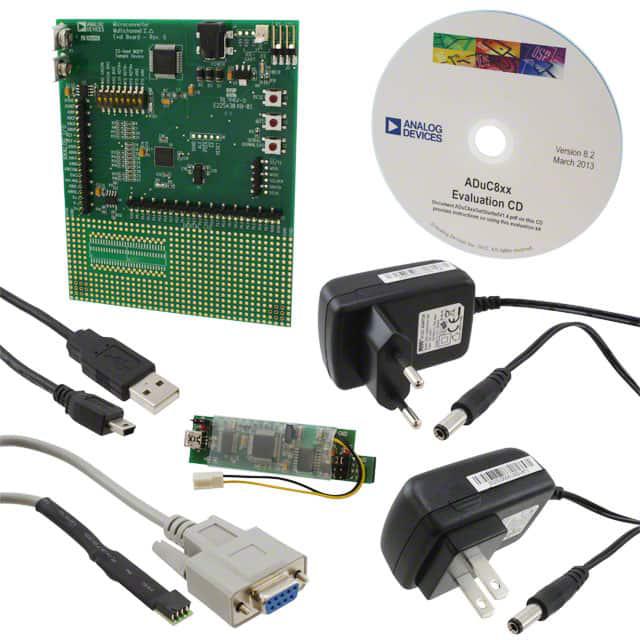

EVAL-ADUC845QSPZ

厂牌: ANALOG DEVICES
产品描述: 2.25KB ROM 32.768KHz,11.0592MHz Serial 8052 固定安装
供应商型号: EVAL-ADUC845QSPZ-ND
供应商: Digi-Key
标准整包数: 1
ANALOG DEVICES 应用处理器与片上系统(SOC) EVAL-ADUC845QSPZ

EVAL-ADUC845QSPZ概述

    # ADuC8xx Evaluation Kit User Guide
    Product Introduction
    The ADuC8xx Evaluation Kit serves as a comprehensive platform for users to explore and evaluate the ADuC8xx family of microconverters. These microconverters are renowned for their high precision and versatility, integrating both flash MCU and ADC/DAC functionality on a single chip. The kit includes multiple evaluation boards such as the EVAL-ADuC812QSZ, EVAL-ADuC814QSZ, and EVAL-ADuC847QSZ, supporting various models like SAR and Sigma-Delta microconverters. This user-friendly evaluation system is ideal for engineers in fields like industrial control, automotive electronics, medical devices, and consumer electronics.
    Technical Parameters
    The ADuC8xx evaluation kit provides the following technical specifications:
    | Parameter | Value |

    | Processor | 8051 compatible core |
    | Flash Memory | 16 KB – 64 KB |
    | SRAM | 1.25 KB – 3.75 KB |
    | ADC Resolution | 12-bit or 24-bit (Sigma-Delta type) |
    | DAC Resolution | 12-bit |
    | Operating Voltage | 2.7V – 5.25V |
    | Temperature Range | -40°C to +85°C |
    | Supported Tools | Keil, IAR, WASP, WSD |
    These technical parameters make the ADuC8xx microconverters suitable for applications requiring high accuracy and real-time processing capabilities.
    Product Features and Advantages
    Unique Features:
    - Integrated 8051 microcontroller core with advanced peripheral support.
    - High-resolution ADC and DAC for precise analog-to-digital conversion.
    - Flexible memory configurations with on-chip Flash and SRAM.
    Market Competitiveness:
    The ADuC8xx series combines the flexibility of programmable MCUs with the precision of data converters, offering superior performance compared to traditional discrete solutions. Its robust features and broad range of supported peripherals make it a strong competitor in demanding applications such as data acquisition, motor control, and sensor interfacing.
    Application Case Studies and Usage Recommendations
    Example Applications:
    - Industrial Automation: The ADuC8xx's high-precision ADC is ideal for process monitoring and feedback control.
    - Automotive Electronics: The microconverters' compact size and high integration level make them suitable for vehicle instrumentation and driver assistance systems.
    - Medical Devices: The accurate signal processing capabilities are valuable in wearable health monitors and diagnostic equipment.
    Usage Tips:
    1. Always ensure the evaluation board is powered off before connecting/disconnecting cables to avoid damage.
    2. Use the Windows Serial Downloader (WSD) for seamless firmware loading and execution.
    3. Implement proper timing considerations when using the USB-EA emulator for debugging to prevent unexpected resets due to the watchdog timer.
    Compatibility and Support
    The ADuC8xx evaluation kit is fully compatible with widely-used development environments such as Keil and IAR. It also integrates with the Windows Analog Software Program (WASP) for performance analysis. Users benefit from detailed documentation and technical notes provided on the accompanying CD. Vendor support is extensive, with readily accessible resources online and local sales representatives available worldwide.
    Common Issues and Solutions
    | Problem | Solution |

    | Firmware upload fails | Verify the COM port settings and baud rate. |
    | Debugger not recognizing device | Ensure the USB-EA emulator is properly connected. |
    | Watchdog timer interrupt | Disable the watchdo

EVAL-ADUC845QSPZ参数

参数
主要属性 -
内核数 -
最大工作供电电压 -
速度 -
外设 -
最小工作供电电压 -
RAM大小 2.25KB
最大时钟频率 32.768KHz,11.0592MHz
Flash大小 -
程序存储器类型 ROM
核心处理器 8052
接口类型 Serial
I/O电压 -
安装方式 固定安装
零件状态 在售
包装方式 盒装
