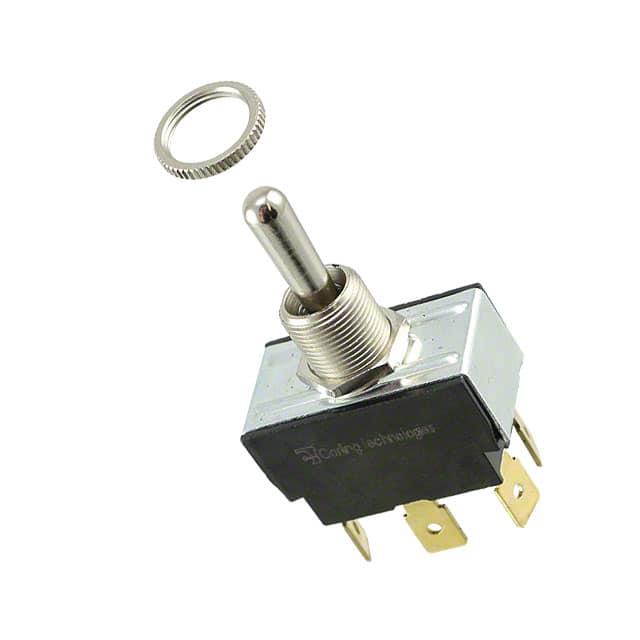

6GM5M-78

产品分类: 拨动开关
产品描述: 277V(AC) Mom-Off-Mom 125V 20A 17.45mm 面板安装 33.22mm(长度)*60.11mm(高度)
供应商型号: 6GM5M-78
供应商: Master
标准整包数: 10
CARLING TECHNOLOGIES 拨动开关 6GM5M-78

6GM5M-78概述

    G-Series Toggle Switches: A Comprehensive Overview
    Carling Technologies, Inc., a global leader in electrical and electronic components, has introduced the G-Series toggle switches, which are renowned for their robust design and versatility. These general-purpose workhorses are equipped with numerous customization options, making them ideal for integration into diverse applications.
    1. Product Introduction
    The G-Series toggle switches are designed for use in both standard and specialized environments. These switches are suitable for general-purpose applications requiring up to 20A at 277VAC and are also compatible with low-voltage DC applications, such as 12V and 24V DC. Available in various actuator styles—such as metal bat or nylon bat/paddle—the G-Series offers flexibility in terms of aesthetics and functionality. Furthermore, it complies with international standards like UL, CSA, and VDE, ensuring reliability across different regulatory regions.
    Applications:
    The G-Series toggle switches are widely used in industries such as marine, food service, generators, industrial control, and office automation. Their durability and adaptability make them a popular choice in environments where high reliability is essential.
    2. Technical Parameters
    The following technical specifications outline the key capabilities of the G-Series toggle switches:
    | Parameter | Value |

    | Voltage Rating | Up to 20A at 277VAC |
    | Current Rating | Up to 20A |
    | Insulation Class | IEC-approved construction |
    | Dielectric Strength | 1000V (UL/CSA), 4000V (VDE) |
    | Mechanical Life | 50,000 cycles (maintained), 25,000 cycles (momentary) |
    | Operating Temperature Range| -32°F to 185°F (0°C to 85°C) |
    | Contact Resistance | ≤ 5 mΩ |
    These parameters highlight the switch's suitability for demanding environments while ensuring long-term performance under challenging conditions.
    3. Product Features and Advantages
    The G-Series toggle switches offer several distinct advantages that set them apart from competitors:
    - Versatility: Multiple actuator styles, bushing lengths, and circuit configurations allow users to customize the switch to fit their specific needs.
    - Durability: With mechanical life ratings of up to 50,000 cycles, these switches are built to endure extensive use over time.
    - Certification Compliance: Adherence to UL, CSA, and VDE standards ensures compliance with international regulations.
    - Low-Voltage Compatibility: Ideal for applications requiring 12V or 24V DC operation, expanding its utility in modern electronics.
    4. Application Cases and Usage Recommendations
    Application Case: Marine Environment
    In marine applications, the G-Series toggle switches are often used to control critical functions like bilge pumps and navigation lights. The switches' resistance to moisture and their robust build ensure consistent performance despite exposure to harsh marine conditions.
    Usage Recommendations:
    For optimal performance, consider using sealed toggle switches in wet environments to prevent water ingress. Additionally, the "momentary" function can be useful for activating temporary functions, such as emergency lighting.
    Application Case: Industrial Control Panels
    In industrial settings, these switches are frequently employed in control panels to manage motor circuits or other high-current devices.
    Usage Recommendations:
    When integrating the G-Series into industrial panels, ensure proper wire gauge selection to accommodate the rated current of the switch. Also, regular maintenance checks are recommended to verify switch integrity.
    5. Compatibility and Support
    The G-Series toggle switches exhibit excellent

6GM5M-78参数

参数
电压额定值 277V(AC)
执行器长度 17.45mm
机械寿命 -
开关功能 Mom-Off-Mom
指示颜色 -
最大交流触点电压 125V
最大直流触点电压 -
电流额定值 20A
长*宽*高 33.22mm(长度)*60.11mm(高度)
安装方式 面板安装
应用等级 商业级
零件状态 在售
包装方式 散装
