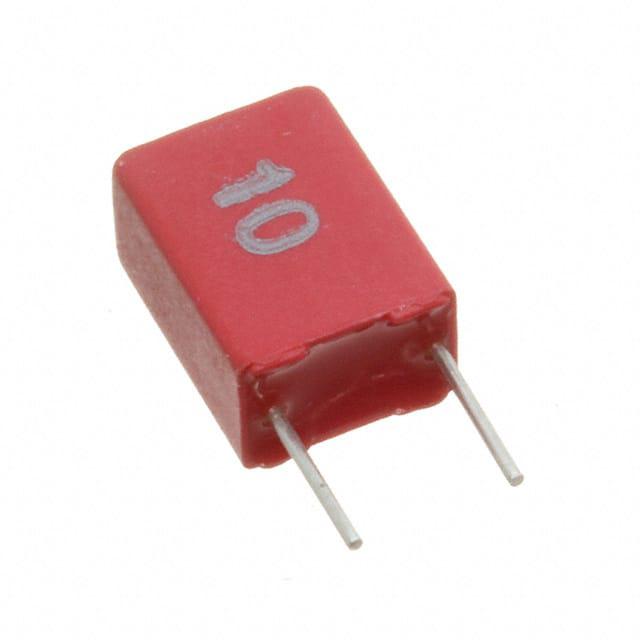

MKS2D036801F00KSSD

产品分类: 薄膜电容
厂牌: WIMA
产品描述: 680nF ±10% 聚对苯二甲酸乙二醇酯,聚酯,金属化 100V 63V 通孔安装 7.2mm*5mm*10mm
供应商型号: 1928-1661-ND
供应商: Digi-Key
标准整包数: 1
WIMA 薄膜电容 MKS2D036801F00KSSD

MKS2D036801F00KSSD概述

    Product Introduction: WIMA MKS 2 Series Metallized Polyester Capacitors
    The WIMA MKS 2 Series represents a highly efficient and reliable family of metallized polyester capacitors designed for use in a wide range of DC applications. These capacitors feature a high volume-to-capacitance ratio, making them ideal for compact designs. They are available in capacitance values ranging from 0.01 µF to 10 µF, with rated voltages spanning from 50 VDC to 630 VDC. Key applications include bypass, blocking, coupling/decoupling, and timing circuits, typically found in industrial, automotive, and consumer electronics sectors.
    Technical Parameters
    The WIMA MKS 2 series offers exceptional electrical performance and reliability, as summarized below:
    | Parameter | Value/Range |

    | Capacitance Range | 0.01 µF to 10 µF |
    | Rated Voltage | 50 VDC, 63 VDC, 100 VDC, 250 VDC, 400 VDC, 630 VDC |
    | Capacitance Tolerance | ±20%, ±10%, ±5% |
    | Operating Temperature Range | 50 VDC: –55°C to +100°C
    63 VDC: –55°C to +125°C |
    | Voltage Derating Factor | 1.25% per °C above +85°C for DC,
    1.25% per °C above +75°C for AC |
    | Maximum Pulse Rise Time | Varies by capacitance and voltage |
    | Dissipation Factor | 8 x 10⁻³ at 1 kHz, 15 x 10⁻³ at 10 kHz, 30 x 10⁻³ at 100 kHz |
    | Insulation Resistance | ≥5 x 10³ MΩ·µF at 50 VDC,
    ≥1 x 10⁴ MΩ·µF at 63 VDC,
    ≥1.5 x 10⁴ MΩ·µF at 100 VDC |
    Product Features and Advantages
    The WIMA MKS 2 series stands out due to its unique features and advantages:
    - Self-healing: Prevents catastrophic failures in case of localized dielectric breakdown.
    - High Reliability: Operates up to 300,000 hours under typical conditions, with thermal stress mitigation.
    - AEC-Q200 Qualified: Meets stringent automotive and industrial standards.
    - RoHS Compliance: Fully compliant with the RoHS directive, ensuring environmental safety.
    - Small Form Factor: Compact dimensions and high capacitance density allow for space-efficient designs.
    Applications and Usage Recommendations
    The WIMA MKS 2 series is ideal for:
    - By-passing noise in power supplies
    - Coupling and decoupling in signal processing
    - Timing circuits for oscillators and clocks
    Usage Suggestions:
    - For high-frequency applications, select capacitors with lower dissipation factors and ensure proper PCB layout to minimize EMI/RFI interference.
    - When designing for extreme environments, consider derating the voltage based on ambient temperature.
    - Use the recommended soldering temperatures to avoid thermal damage during assembly.
    Compatibility and Support
    These capacitors are compatible with standard through-hole insertion techniques and come in various packaging options, including taped versions. Customers can access detailed taping specifications and graphs at the end of the catalog. WIMA provides comprehensive technical support, including guidelines for soldering and handling, ensuring smooth integration into existing systems.
    Common Issues and Solutions
    | Problem | Solution |

    | Excessive self-heating | Reduce ripple current or use larger capacitors. |
    | Poor insulation resistance | Check ambient temperature and ensure proper voltage derating. |
    | Solder joint failure | Follow recommended soldering temperatures and durations. |
    Conclusion and Recommendation
    The WIMA MKS 2 series is an excellent choice for designers seeking high-performance, cost-effective metallized polyester capacitors. Its combination of reliability, self-healing capability, and compatibility with demanding applications makes it stand out in the market. We highly recommend this product for use in DC-based applications where durabi

MKS2D036801F00KSSD参数

参数
电容值 680nF
容差 ±10%
介电材料 聚对苯二甲酸乙二醇酯,聚酯,金属化
ESR-等效串联电阻 -
额定电压-AC 63V
额定电压-DC 100V
长*宽*高 7.2mm*5mm*10mm
安装方式 通孔安装
应用等级 汽车级
零件状态 在售
包装方式 散装
