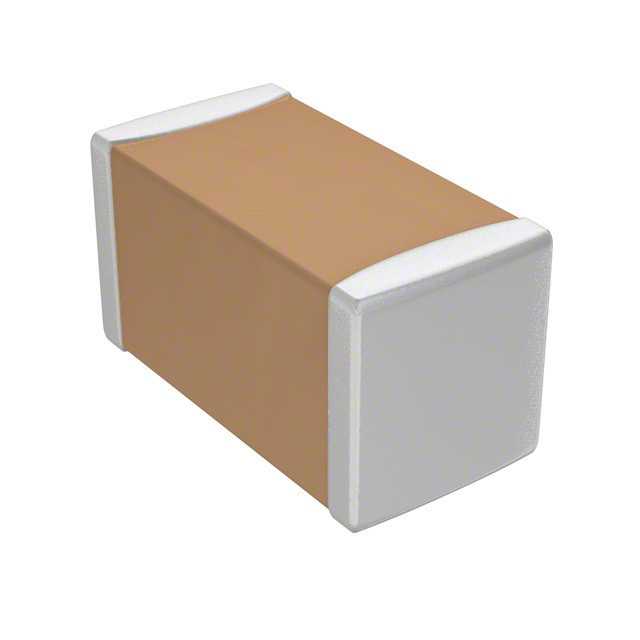

CL10A106MQNNHBC

产品分类: 陶瓷电容
厂牌: SAMSUNG
产品描述: 10μF ±20% X5R 6.3V 0603 贴片安装 1.6mm*800μm*950μm
供应商型号: ZT-CL10A106MQNNHBC
供应商: 海外现货
标准整包数: 1
SAMSUNG 陶瓷电容 CL10A106MQNNHBC

CL10A106MQNNHBC概述

    Multi-Layer Ceramic Capacitor (MLCC) Product Manual
    Product Introduction
    This technical manual provides comprehensive information about Samsung's Multi-Layer Ceramic Capacitor (MLCC), specifically the part number CL10A106MQNNHBC, which falls under the series of Samsung's Multi-Layer Ceramic Capacitors. This capacitor is primarily used for coupling, filtering, decoupling, and timing circuits in electronic applications. Its key features include:
    - Capacitance: 10㎌
    - Rated Voltage: 6.3V
    - Tolerance: ±20%
    - Dielectric Type: X5R
    - Case Size: 0603 (Metric: 1608)
    The product is manufactured using a robust ceramic material with Ni inner electrodes and plated with Pb-free Cu/Ni/Sn. This ensures high reliability and stability in various operational environments.
    Technical Parameters
    | Parameter | Value |

    | Capacitance | 10㎌ |
    | Tolerance | ±20% |
    | Rated Voltage | 6.3V |
    | Dielectric | X5R |
    | Case Size | 0603 (1.60mm × 0.80mm) |
    | Height | 0.95mm ±0.10mm |
    | Inner Electrode | Nickel (Ni) |
    | Plating | Pb-Free Cu/Ni/Sn |
    | Termination | Nickel-Silver Alloy |
    The capacitor meets rigorous reliability standards including:
    - Temperature cycling (-55°C to 85°C)
    - Humidity resistance up to 90%RH for 500 hours
    - Maximum operating temperature: 125°C
    - Solderability tested under SnAg3.0Cu0.5 conditions
    Product Features and Advantages
    The CL10A106MQNNHBC offers several distinct advantages:
    1. Wide Operating Temperature Range: Its X5R dielectric ensures stable performance across -55°C to 85°C, making it ideal for harsh environments.
    2. High Reliability: Through stringent testing protocols, the capacitor demonstrates excellent insulation resistance (IR ≥ 500MΩ).
    3. Small Footprint: The compact 0603 case size (1.60mm × 0.80mm) facilitates space-efficient designs, particularly suitable for mobile and consumer electronics.
    4. Excellent Aging Stability: With minimal capacitance drift over time, the product maintains consistent performance across long-term applications.
    5. Low Dissipation Factor (DF): The low DF value (≤0.125) ensures minimal power loss, maximizing efficiency in critical applications.
    Application Case Studies and Recommendations
    The CL10A106MQNNHBC is commonly deployed in the following applications:
    1. Power Supply Decoupling: Ensures smooth power delivery in high-speed digital circuits.
    2. Coupling/Filtering: Filters out unwanted frequencies in audio and RF circuits.
    3. Timing Circuits: Supports stable oscillation frequencies in microcontroller circuits.
    Recommendations:
    - Use derating practices to extend operational life in high-temperature environments (≥85°C).
    - Select appropriate test PCB dimensions for optimal assembly and adherence to IEC 60286-3 standards.
    - Ensure correct soldering parameters (peak temperature: 260±5°C for 30 seconds).
    Compatibility and Support
    This product is fully compatible with surface mount technology (SMT) assembly processes. Samsung Electronics offers extensive support including:
    - Application engineering assistance
    - Product customization for unique requirements
    - Regular firmware updates addressing performance enhancements
    For specific compatibility queries or integration challenges, Samsung’s global network of application engineers is available to guide customers.
    Common Issues and Solutions
    | Issue | Solution |

    | High dissipation factor (DF) | Ensure accurate capacitance

CL10A106MQNNHBC参数

参数
电容值 10μF
容差 ±20%
温度系数 X5R
额定电压 6.3V
长*宽*高 1.6mm*800μm*950μm
通用封装 0603
安装方式 贴片安装
零件状态 在售
包装方式 卷带包装
