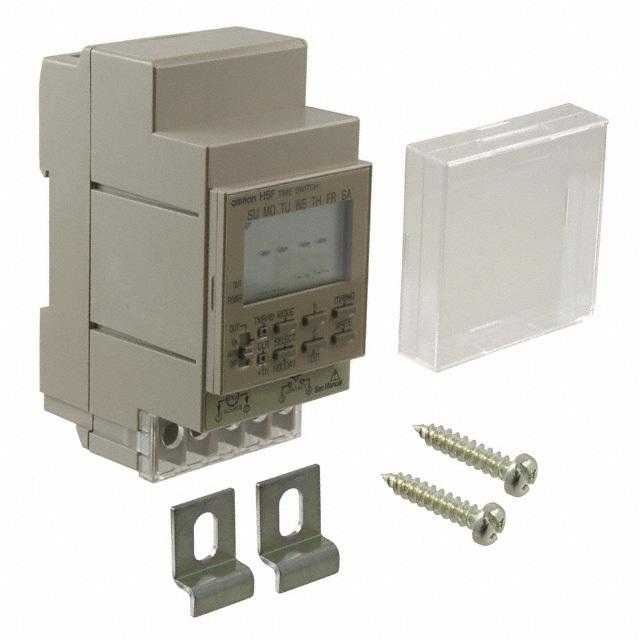

H5F-B

产品分类: 电气测量仪
厂牌: OMRON/欧姆龙
产品描述: 欧姆龙 Omron 时间继电器, H5F-B 系列, 100 → 240V 交流, 1触点, 时间范围 24 h → 7days
供应商型号: 653-H5F-B
供应商: Mouser
标准整包数: 1
OMRON/欧姆龙 电气测量仪 H5F-B

H5F-B概述

    H5F Digital Daily Time Switch: Comprehensive Technical Overview
    Product Introduction
    The H5F Digital Daily Time Switch is a versatile digital control device designed to simplify daily scheduling tasks with intuitive controls and precise timing capabilities. Suitable for applications requiring consistent and reliable operation, this time switch offers easy configuration and robust performance across multiple scenarios. Its core features include the ability to set daily operation patterns, support for special holiday operations, pulse output functionality, and automatic schedule adjustments—all packaged in a compact, user-friendly design.
    Key attributes:
    - Product Type: Daily time control device.
    - Primary Function: Automates ON/OFF cycles for loads based on pre-programmed schedules.
    - Applications: Commercial, industrial, and residential environments where timed control is essential, including lighting systems, HVAC, irrigation, and industrial machinery.
    Technical Specifications
    | Parameter | Value |

    | Supply Voltage Range | 100 to 240 VAC (50/60 Hz) |
    | Voltage Fluctuation Range | ±10% of rated supply voltage |
    | Power Consumption | Approximately 2.4 VA at 264 VAC |
    | Control Outputs | SPST-NO contact output: 15 A @ 250 VAC, 10 A @ 24 VDC |
    | Accuracy of Operating Time| ±0.01% ±0.05 s max. |
    | Memory Protection | 5 years minimum at 25°C without power interruption |
    | Terminal Arrangement | M3.5 screw terminals |
    | Environmental Temperature| Operating: -10°C to +55°C (no icing); Storage: -25°C to +65°C |
    | Ambient Humidity | 35% to 85% relative humidity |
    | Dielectric Strength | 2,000 VAC @ 50/60 Hz for 1 minute |
    Additional Features:
    - Communication Interface: Optional accessories for programming via front panel or external tools.
    - Compliance: UL508/CSA/CE marking, EN61010-1 safety certification, EN61326-1 EMC compliance.
    Product Features and Advantages
    The H5F series stands out for its simplicity and precision, making it ideal for a broad spectrum of automation applications.
    Unique Features:
    1. Flexible Operation Programming: Users can schedule up to 12 ON/OFF events daily or 24 pulse-output events for continuous control.
    2. Holiday Management: Simplifies handling exceptions like weekends or special holidays with the dedicated holiday function.
    3. Adjustable Output Override: Allows temporary manual overrides while maintaining auto-return capability.
    4. Energy-Efficient Design: Low-power consumption ensures cost-effective and sustainable operations.
    Advantages:
    - Compact size supports multiple mounting options (flush, surface, DIN track).
    - High reliability and durability ensure longevity under challenging environments.
    - Built-in insulation safeguards against electric hazards.
    Application Cases and Usage Recommendations
    Scenario 1: Lighting Automation
    - Use Case: Scheduling office lights to turn ON at 8 AM and OFF at 6 PM on weekdays.
    - Recommendation: Use the regular timer function combined with the partial operation feature for weekends. Add the pulse-output option for smart dimming effects.
    Scenario 2: HVAC Control
    - Use Case: Implementing energy-efficient cooling/heating schedules tailored to occupancy patterns.
    - Recommendation: Integrate H5F with override settings for emergencies while ensuring automatic schedule restoration.
    Scenario 3: Irrigation Systems
    - Use Case: Regulating water flow intervals for agricultural or landscape irrigation systems.

H5F-B参数

参数
长*宽*高 48mm(长度)*48mm(宽度)
安装方式 面板安装
零件状态 在售
