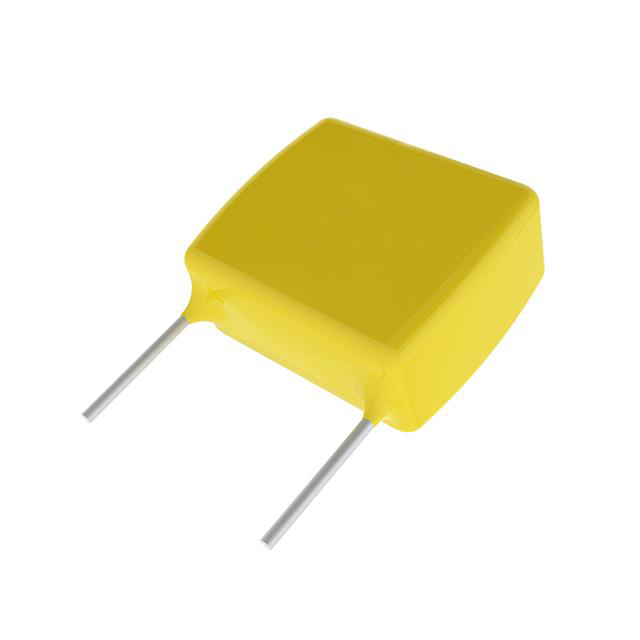

C052C223K5R5TA7301

产品分类: 陶瓷电容
厂牌: KEMET
产品描述: 22nF ±10% X7R 50V 通孔安装 4.83mm*2.29mm*5.97mm
供应商型号: 80-C052C223K5R5TA-TR
供应商: Mouser
标准整包数: 1
KEMET 陶瓷电容 C052C223K5R5TA7301

C052C223K5R5TA7301概述

    # KEMET Multilayer Ceramic Capacitors: Axial & Radial Leaded
    Product Introduction
    Multilayer ceramic capacitors (MLCCs) manufactured by KEMET Electronics Corporation are a vital component in modern electronic systems. These capacitors are available in a variety of physical sizes and configurations, with options for axial and radial leaded designs. Unlike single-layer capacitors, MLCCs provide compactness and high capacitance values, making them ideal for a broad range of applications, including signal coupling, decoupling, filtering, and resonant circuits. KEMET's product line includes leaded capacitors that come in molded and conformally coated forms, catering to diverse needs such as environmental resistance and mechanical robustness.
    These capacitors are fabricated using layers of ceramic dielectric interspersed with metal electrodes. Once sintered at high temperatures, they form a monolithic structure, offering exceptional performance in minimal space. Termination materials differ based on the intended application, ensuring versatility across industries like telecommunications, automotive electronics, consumer electronics, and industrial equipment.
    Technical Parameters
    The following technical specifications outline the key performance parameters of KEMET's MLCCs:
    | Parameter | Value |

    | Temperature Coefficients | C0G (Class I): ±30 ppm/°C
    X7R (Class II): ±15%
    Z5U (Class III): +22%, -56% |
    | Rated Voltage | Up to 50V (varies by model) |
    | Capacitance Range | 1 pF to 100 µF |
    | Dielectric Strength | 2.5 x Rated DC Voltage |
    | Dissipation Factor | C0G: 0.10%; X7R: ≤2.5%; Z5U: ≤4.0% |
    | Insulation Resistance | ≥1,000 MΩ or ≥100 GΩ |
    | Operating Temperature Range | C0G: -55°C to +125°C
    X7R: -55°C to +125°C
    Z5U: +10°C to +85°C |
    Product Features and Advantages
    KEMET's multilayer ceramic capacitors stand out due to their robust design and superior performance attributes. Here are some key advantages:
    1. High Capacitance Density: Small physical footprint allows for compact designs.
    2. Stability: The C0G class offers excellent temperature stability, making it ideal for precision applications.
    3. Versatility: Available in multiple temperature characteristics (C0G, X7R, Z5U), catering to different application needs.
    4. High Reliability: Constructed with high-quality materials and manufacturing processes, ensuring long operational life.
    5. Environmental Protection: Conformal coatings provide enhanced resistance to moisture, dust, and corrosive agents.
    Application Cases and Usage Recommendations
    Applications:
    - Signal Coupling/Coupling Filters: X7R capacitors are ideal for coupling filters in RF circuits due to their stable performance over temperature.
    - Power Decoupling: MLCCs with high capacitance and low equivalent series resistance (ESR) are preferred in power supply decoupling scenarios.
    - Resonant Circuits: C0G capacitors are recommended for applications requiring precise tuning and minimal drift over temperature.
    Usage Recommendations:
    - Ensure proper derating of the voltage to avoid premature aging or degradation.
    - Select capacitors with appropriate temperature characteristics based on the ambient operating environment.
    - Avoid exceeding the self-resonant frequency for best impedance performance.
    Compatibility and Support
    KEMET MLCCs are compatible with a wide array of electronic components and systems. Their modular design ensures seamless integration into existing PCB layouts. KEMET offers comprehensive technical support, including datasheets, application notes, and engineering assistance. Additionally, their extensive global network provides reliable after-sales service and warranty coverage.
    Common Issues and Solutions
    | Issue

C052C223K5R5TA7301参数

参数
电容值 22nF
容差 ±10%
温度系数 X7R
额定电压 50V
长*宽*高 4.83mm*2.29mm*5.97mm
安装方式 通孔安装
包装方式 卷带包装
