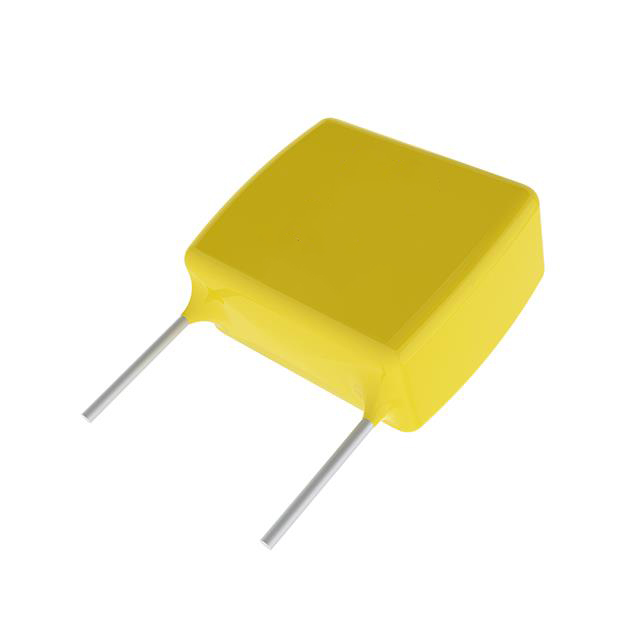

C346C105M1U5TA7301

产品分类: 陶瓷电容
厂牌: KEMET
产品描述: 1μF ±20% Z5U 100V 通孔安装
供应商型号: 399-C346C105M1U5TA7301TR-ND
供应商: Digi-Key
标准整包数: 1
KEMET 陶瓷电容 C346C105M1U5TA7301

C346C105M1U5TA7301概述

    KEMET Goldmax 300 Series Ceramic Capacitors Technical Overview
    Product Introduction
    KEMET's Goldmax 300 Series is a range of radial leaded multilayer ceramic capacitors that utilize Z5U dielectric. These capacitors are suitable for general-purpose applications requiring low cost while maintaining moderate performance levels. Their primary function is to provide bypass and decoupling capabilities in various electronic circuits, including consumer electronics, telecommunications, automotive, and industrial applications.
    Technical Parameters
    | Parameter | Specifications |

    | Operating Temperature Range | +10°C to +85°C |
    | Capacitance Range | 100 pF to 10 µF |
    | Voltage Ratings | 25 V, 50 V, 100 V, 200 V, 250 V |
    | Capacitance Tolerance | ±20%, +80%/-20% |
    | Dielectric Withstanding Voltage | 250% of rated voltage |
    | Dissipation Factor (DF) | ≤ 4.0% |
    | Insulation Resistance | ≥ 100 MΩ·μF |
    | Lead Spacing | 0.100", 0.200", 0.250", 0.400" |
    | Lead Material | Pure matte tin-plated or SnPb (on request) |
    | Environmental Compliance | RoHS, REACH, halogen-free |
    Product Features and Advantages
    - Radial Leaded Technology: Provides robust mechanical support for mounting on printed circuit boards.
    - Conformal Coating: Offers protection against moisture, dust, and other environmental contaminants.
    - Wide Operating Voltage Range: Suitable for diverse power supplies and signal conditioning circuits.
    - Non-Polarized Design: Eliminates installation concerns related to polarity.
    - Excellent Solderability: Matte tin plating ensures superior solder joint integrity.
    - Flame Retardant Encapsulation: Meets UL 94V-0 standards, ensuring fire safety.
    - RoHS/REACH Compliance: Meets global environmental regulations, making it environmentally friendly.
    Application Cases and Usage Suggestions
    The Goldmax 300 Series capacitors are ideal for bypass and decoupling applications in circuits where cost efficiency is critical. Some common use cases include:
    - Audio Circuits: Used for noise reduction and signal filtering.
    - Power Supplies: Essential for stabilizing voltage across different stages.
    - Telecommunication Equipment: Enhances signal quality in modems and transceivers.
    Usage Suggestions:
    - Ensure proper heat dissipation when operating near the maximum temperature range to maximize lifespan.
    - Use conformal coatings as needed in humid environments to prevent moisture ingress.
    - Optimize PCB layout to minimize parasitic inductance and resistance for better performance.
    Compatibility and Support
    The Goldmax series is compatible with a variety of standard PCB manufacturing processes. KEMET provides comprehensive technical support, including application notes and design assistance. Additionally, the product is backed by extensive reliability testing, which includes high-temperature life, biased humidity, and storage life assessments.
    Common Issues and Solutions
    | Problem | Solution |

    | Capacitance drift due to temperature changes | Select appropriate capacitor rating for ambient temperature range. |
    | Reduced insulation resistance | Ensure correct handling and storage practices to avoid moisture absorption. |
    | Poor solder joints | Use flux during soldering and inspect for proper wetting. |
    Conclusion and Recommendation
    The Goldmax 300 Series ceramic capacitors from KEMET offer an attractive balance of performance and cost-effectiveness. Their general-purpose nature, combined with their ability to withstand harsh environments and maintain reliability, makes them highly suitable for a broad spectrum of electronic applications. This product is strongly recommended for designers looking to implement cost-effective solutions without compromising on quality or performance.
    Rating: ★★★★☆ (4/5) – Excellent f

C346C105M1U5TA7301参数

参数
电容值 1μF
容差 ±20%
温度系数 Z5U
额定电压 100V
7.36mm(Max)
4.07mm(Max)
安装方式 通孔安装
包装方式 卷带包装
