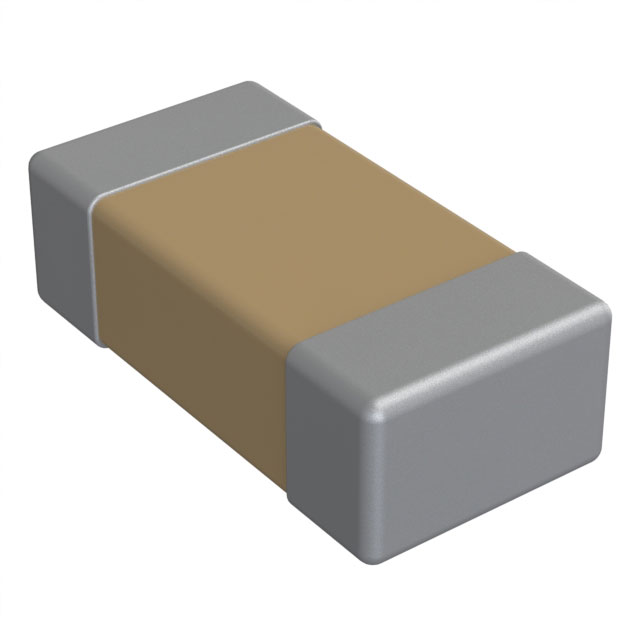

C0603C105Z4VAC7867

产品分类: 陶瓷电容
厂牌: KEMET
产品描述: 1μF -20%~80% Y5V(F) 16V 0603 贴片安装 1.6mm(长度)*800μm(宽度)
供应商型号:
供应商:
标准整包数: 0
KEMET 陶瓷电容 C0603C105Z4VAC7867

C0603C105Z4VAC7867概述

    Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) with Y5V Dielectric: Comprehensive Technical Overview
    1. Product Introduction
    KEMET Electronics Corporation offers a diverse line of Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) featuring the Y5V dielectric. These capacitors are designed to cater to commercial-grade applications requiring general-purpose functionality. Known for their compactness and performance versatility, these MLCCs are suitable for decoupling, bypass, and similar applications where precise capacitance stability isn't critical. The Y5V dielectric classifies these components under Class III materials, ideal for applications that prioritize cost-effectiveness over high precision.
    Key Features:
    - Operating temperature range: -30°C to +85°C.
    - Pb-free, RoHS, and REACH compliant.
    - Case sizes: EIA 0402, 0603, 0805, 1206, and 1210.
    - Voltage ratings: 6.3 V, 10 V, 16 V, 25 V, and 50 V.
    - Capacitance range: 0.022 µF to 22 µF.
    - Capacitance tolerances: ±20% and +80%/-20%.
    These capacitors stand out due to their non-polar design and 100% pure matte tin-plated termination finish, enhancing solderability and reliability.
    2. Technical Parameters
    Below is a concise summary of the key technical parameters:
    | Parameter | Value |

    | Operating Temperature | -30°C to +85°C |
    | Capacitance Change (TCC) | +22%, -82% (from -30°C to +85°C) |
    | Aging Rate | Up to 7% capacitance loss/decade |
    | Dielectric Withstanding Voltage (DWV) | 250% of rated voltage |
    | Dissipation Factor (DF) | ≤ 10% (6.3 V & 10 V), ≤ 7% (16 V & 25 V), ≤ 5% (50 V) |
    | Insulation Resistance (IR) | ≥ 10 GΩ (100 µF or higher) |
    | Post-Environmental Limits | See manufacturer specifications |
    The table above reflects the robust capabilities of these capacitors, making them suitable for various commercial electronic systems.
    3. Product Characteristics and Advantages
    The Y5V MLCCs excel in several aspects:
    - Wide Operating Temperature Range: Ensures stable performance across varying environmental conditions.
    - Non-Polar Design: Reduces complexities during PCB assembly and minimizes installation concerns.
    - Excellent Solderability: Due to 100% matte tin-plated terminations, enabling seamless integration into modern electronics.
    - Class III Flexibility: Suitable for applications that do not demand high capacitance stability but need affordability and ease of use.
    These advantages position these capacitors competitively in applications such as consumer electronics, automotive infotainment systems, and telecommunications equipment.
    4. Application Case Studies and Usage Recommendations
    Y5V MLCCs are commonly deployed in:
    - Decoupling Circuits: Supporting power supply stability.
    - Bypass Applications: Reducing noise in sensitive circuits.
    - Temperature-Limited Environments: Due to their -30°C to +85°C operating range.
    Usage Suggestions:
    - Ensure compliance with recommended soldering profiles for best results.
    - Verify correct tape and reel dimensions based on case size.
    - Implement density level B land patterns for optimal reflow soldering performance.
    For example, in battery management systems, Y5V capacitors can provide reliable bypassing functionality while tolerating thermal and operational stress.
    5. Compatibility and Support
    These capacitors are highly compatible with industry-standard PCB designs and tools, adhering to IPC-7351 guidelines. KEMET provides comprehensive support, including detailed soldering profiles and land pattern recommendations. Users are encouraged to contact KEMET for specialized packaging options or inquiries about custom termination finishes.
    6. Common Issues and Solutions
    Here are some common problems encou

C0603C105Z4VAC7867参数

参数
电容值 1μF
容差 -20%~80%
温度系数 Y5V(F)
额定电压 16V
长*宽*高 1.6mm(长度)*800μm(宽度)
通用封装 0603
安装方式 贴片安装
零件状态 在售
包装方式 卷带包装
