000649

产品分类:
厂牌: ECCEL TECHNOLOGY
产品描述:
供应商型号: 3152-000649-ND
供应商: Digi-Key
标准整包数: 1
ECCEL TECHNOLOGY  000649

000649概述

    Pepper C1 MUX User Manual Review
    1. Product Introduction

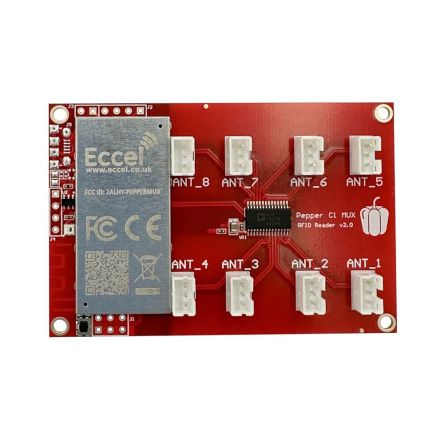

    The Pepper C1 MUX is an advanced RFID reader module designed by Eccel Technology Ltd., offering a robust solution for a wide range of applications. This module stands out due to its multiplexed external RFID antenna support, enabling simultaneous interaction with up to eight external antennas. Key features include compatibility with popular RFID standards like MIFARE® Classic®, MIFARE Ultralight®, and MIFARE DESFire® EV1/EV2.
    The device is equipped with modern wireless connectivity, such as Wi-Fi 802.11 b/g/n and 2.4 GHz WPAN, which allows over-the-air firmware updates. Its IoT capabilities (MQTT, WebSocket) make it suitable for integration into IoT ecosystems. The Pepper C1 MUX also supports both standalone and networked operations, allowing quick implementation across industries such as access control, inventory monitoring, resource management, and pre-payment systems.
    2. Technical Parameters
    Below are the critical technical specifications extracted from the user manual:
    | Parameter | Minimum | Typical | Maximum | Unit |

    | Storage Temperature | -40 +125 | °C |
    | Operating Temperature | -25 | 25 | +85 | °C |
    | Supply Voltage | 3 | 5 | 5.5 | V |
    | Output Voltage | 3.23 | 3.3 | 3.37 | V |
    | Current Consumption (Wi-Fi ON)| 190 | 210 mA |
    The module operates under a DC characteristic range of 3.23V to 3.37V at 5V supply, ensuring stable performance. It supports high-speed communication with baud rates up to 921,600 bps and includes configurable GPIOs for various peripheral interactions.
    3. Product Features and Advantages
    The Pepper C1 MUX offers several distinct advantages:
    - Versatile Compatibility: Supports multiple RFID formats, making it adaptable to diverse applications.
    - IoT Integration: MQTT and WebSocket protocols facilitate seamless integration with smart systems.
    - Robust Design: Operates across a broad temperature range (-25°C to 85°C) and is compliant with RoHS and FCC/CE standards.
    - Over-the-Air Updates: Ensures continuous improvement and reliability.
    - Multi-Antenna Support: Simplifies complex systems requiring multiple RFID sensors.
    Its strength lies in simplifying the integration process for RFID-based solutions, reducing the need for extensive coding knowledge and expediting deployment.
    4. Application Cases and Usage Recommendations
    The Pepper C1 MUX finds practical use in scenarios such as:
    - Access Control Systems: Using multiple antennas for secure building entry points.
    - Retail Inventory Management: Streamlining stock-taking by supporting high-speed tag scanning.

    Usage Recommendations:
    - Ensure proper grounding when connecting external antennas to avoid signal interference.
    - Optimize Wi-Fi settings based on the environment to maintain stable connectivity.
    5. Compatibility and Support
    The Pepper C1 MUX supports standard peripheral connections such as UART0 and RS232/RS485 headers. Its compatibility with a variety of RFID antennas enhances flexibility in hardware setups. Eccel Technology offers continuous support via online manuals, software libraries, and technical documentation.
    6. Common Issues and Solutions
    Some common user challenges include:
    - Low Signal Strength: Ensure correct antenna placement and optimal operating conditions.
    - Connection Errors: Verify baud rates and correct pin configurations.
    - Wi-Fi Disconnection: Check Wi-Fi settings and router compatibility.
    Solutions include adjusting the device's operating environment, confirming connections, and consulting the user manual for detailed troubleshooting steps.
    7. Conclusion and Recommendation
    The

000649参数

参数 值
功耗 -
工作电压 -
发射电流 -
灵敏度 -
天线形式 -
频段 -
数据速率 -
发射功率 -
芯片平台 -
调制方式 -
接收电流 -
长*宽*高 5mm(长度)*75mm(高度)
安装方式 贴片安装
应用等级 工业级
包装方式 袋装
