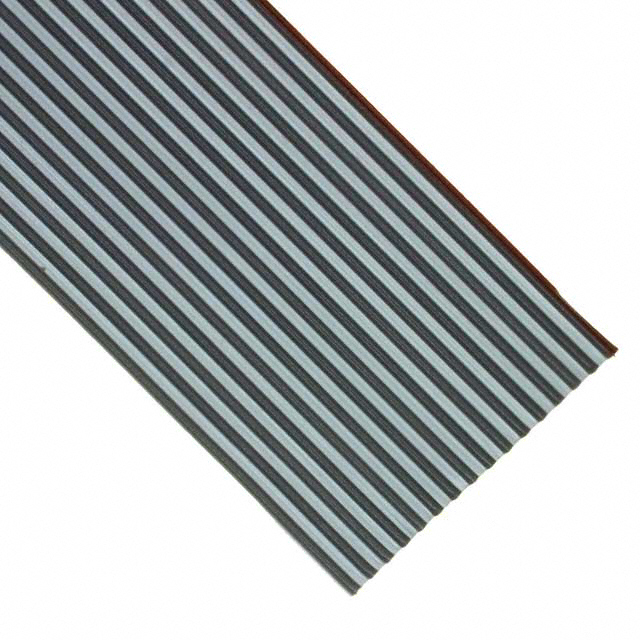

8124/16 100

产品分类: 扁平带状线缆
厂牌: 3M
产品描述:
供应商型号:
供应商:
标准整包数: 0
3M 扁平带状线缆 8124/16 100

8124/16 100概述

    # 3M™ Round Conductor Flat Cable Technical Manual
    Product Introduction
    The 3M™ Round Conductor Flat Cable series, specifically the 8124 Series with a 0.100" width and 22 AWG stranded construction, offers a versatile solution for various power and signal transmission applications. This flat cable features individually insulated conductors bonded to a PVC backing, allowing easy branching and discrete terminations. Its core materials include high-quality tinned stranded copper wire and PVC insulation, making it ideal for environments where durability and flexibility are critical.
    Primary applications include industrial equipment, medical devices, consumer electronics, and other areas where reliability and electrical performance are paramount. The product is designed to deliver superior current-carrying capacity and withstand harsh conditions, ensuring long-term functionality.
    Technical Parameters
    Below is a concise summary of key technical specifications for the 3M™ Round Conductor Flat Cable 8124 Series:
    | Category | Specification |

    | Insulation Material | Polyvinyl Chloride (PVC) |
    | Conductor Gauge | 22 AWG, 7 strands of 30 individual wires (7 × 0.254 mm²) |
    | Voltage Rating | USA: 300V, Canada: 150V, EU: <50V |
    | Insulation Resistance| > 1 × 10¹⁰ Ω/10 ft [3 m] |
    | Capacitance | 11.0 pF/ft [36.1 pF/m], unbalanced |
    | Inductance | 0.15 µH/ft [0.49 µH/m], unbalanced |
    | Propagation Delay | 1.30 ns/ft [4.27 ns/m], unbalanced |
    | Velocity of Propagation| 78% |
    | Temperature Range | -20°C to +105°C (Canada: -20°C to +80°C) |
    | Flammability Rating | USA: VW-1, Canada: FT1 |
    Product Features and Advantages
    The 3M™ Round Conductor Flat Cable 8124 Series offers several unique advantages:
    - High Current-Carrying Capability: Ideal for demanding power applications.
    - Flexibility and Longevity: Tinned stranded copper ensures enhanced flexibility and extended service life.
    - Ease of Customization: Individual conductors can be separated easily for branching or specific terminations.
    - Chemical Compliance: Meets global standards including RoHS compliance (EU, China), ensuring environmental safety.
    - Robust Construction: Combines PVC insulation with a durable PVC carrier layer.
    These features make the product a competitive choice for industries requiring precise and reliable electrical connections.
    Application Examples and Usage Recommendations
    The cable is particularly effective in applications such as:
    - Industrial automation systems requiring flexible wiring solutions.
    - Medical devices needing robust and safe cable configurations.
    - Consumer electronics where compact, lightweight designs are essential.
    Usage Recommendations:
    - Always ensure correct voltage ratings match system requirements to avoid performance degradation or safety risks.
    - Proper termination techniques are crucial for maintaining signal integrity and cable longevity.
    - When splitting conductors, ensure balanced distribution to prevent signal imbalance issues.
    Compatibility and Support
    The 8124 Series is compatible with most standard electronic components and systems due to its flexible design. 3M provides comprehensive support through their customer service hotline (800-225-5373) and online resources at [3M Interconnect Solutio

8124/16 100参数

参数
长*宽*高 39.83mm(宽度)
零件状态 在售
