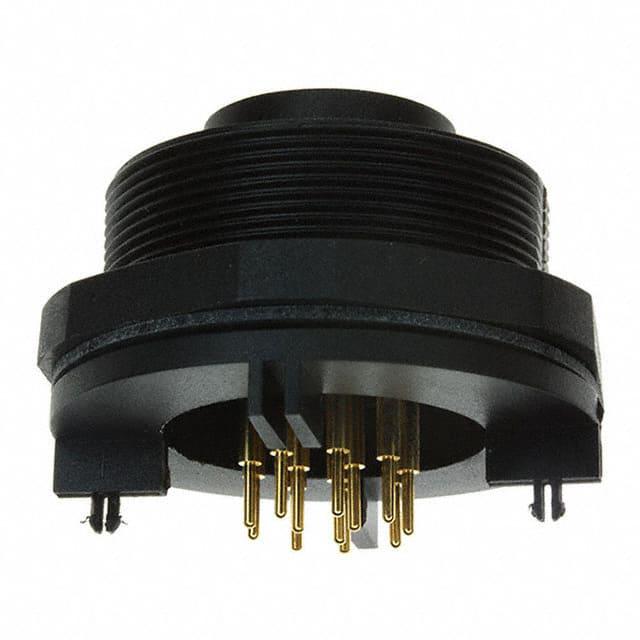

PX0707/P/12

产品分类: 圆形连接器
厂牌: BULGIN
产品描述: Male Pins,Receptacle,Threaded 焊盘 12pin(Power) Polyamide (PA),Nylon,Glass Filled 5A 金 黑色 通孔安装,隔板安装,面板安装
供应商型号: 177-PX0707/P/12
供应商: Mouser
标准整包数: 1
BULGIN 圆形连接器 PX0707/P/12

PX0707/P/12概述

    # Buccaneer Power Connectors - Technical Overview
    Product Introduction
    The Buccaneer Power Connectors represent a robust series of sealed connectors designed to withstand harsh environments while providing reliable electrical connections. These connectors are ideal for applications where reliability, waterproofing, and dustproofing are critical. Available in multiple configurations, the Buccaneer Power Connectors cater to diverse industries such as automotive, industrial automation, marine electronics, and military equipment.
    The product lineup includes various body styles like flex cable, in-line flex cable, panel mount (front and rear), PCB mount, bulkhead mount, and flange mount. With current ratings ranging from 1A to 12A and voltage ratings up to 277V AC/DC, these connectors provide flexibility across numerous applications requiring power distribution and signal transmission.
    Technical Parameters
    The technical specifications of the Buccaneer Power Connectors are detailed below:
    - Pole Configurations: 2, 3, 4, 6, 7, 9, 12, and 25 poles.
    - Current Ratings:
    - 2-9 poles: 12A (VDE, UL, CCC); 10A (CSA)
    - 12 poles: 5A
    - 25 poles: 1A
    - Voltage Ratings: 277V AC/DC (2-9 poles), 150V AC/DC (12 poles), 50V AC/DC (25 poles).
    - Contact Resistance: <10mΩ (2-9 poles), <5mΩ (12 and 25 poles).
    - Insulation Resistance: >10⁴MΩ @ 500V DC (2-9 poles).
    - Breakdown Voltage: 4kV pole-to-pole (2-9 poles), 6kV pole-to-panel (low profile flange and panel types), 7.5kV pole-to-panel (other types).
    - Temperature Range: -20°C to +70°C.
    - IP Ratings: IP68, IP69K compliant.
    - Approvals: UL, CSA, VDE, CCC certified.
    Product Features and Advantages
    The Buccaneer Power Connectors offer several unique features that make them stand out in the market:
    - Sealing Capabilities: Achieves IP68 and IP69K ratings, ensuring complete protection against water and dust ingress.
    - Compact Design: Diameter over coupling ring is 38mm, making it suitable for space-constrained applications.
    - Positive Locating Keyways: Prevents incorrect mating.
    - Easy Assembly: No special tools required for screw terminal versions.
    - Color Coding: Offers colored inserts and gland nuts for easy identification.
    - Compatibility: Supports a wide range of cable diameters from 3.5mm to 9mm.
    These connectors excel in rugged environments due to their superior sealing capabilities and high mechanical durability, making them indispensable in challenging operational conditions.
    Application Cases and Usage Recommendations
    Applications:
    - Automotive Industry: Engine compartments and undercarriage components.
    - Industrial Automation: Robotic arms, conveyor belts, and control panels.
    - Marine Electronics: Submersible equipment and navigation systems.
    - Military Equipment: Communication devices and weapon systems.
    Usage Suggestions:
    1. Environmental Protection: Always ensure proper sealing cap installation to maintain IP68 rating when connectors are unmated.
    2. Cable Management: Use appropriate gland sizes based on the cable diameter to optimize performance and prevent cable damage.
    3. Assembly Process: Follow the manufacturer's guidelines for crimping and soldering to achieve optimal contact resistance.
    Compatibility and Support
    The Buccaneer Power Connectors are compatible with a variety of cable types including BNC versions (50Ω and 75Ω). Additional accessories such as sealing caps, insertion/extraction tools, and crimping tools are available to enhance functionality and ease of use. The manufacturer provides comprehensive support through documentation, training sessions, and after-sales service to ensure seamless integration into user systems.
    Common Issues and Solutions
    | Issue | Solution |

    | Loose connections | Ensure correct to

PX0707/P/12参数

参数
类型 Male Pins,Receptacle,Threaded
颜色 黑色
端接 焊盘
额定电流 5A
外壳材料 Polyamide (PA),Nylon,Glass Filled
针脚数 12pin(Power)
触头镀层 - 配接
安装方式 通孔安装,隔板安装,面板安装
零件状态 在售
包装方式 盒装
