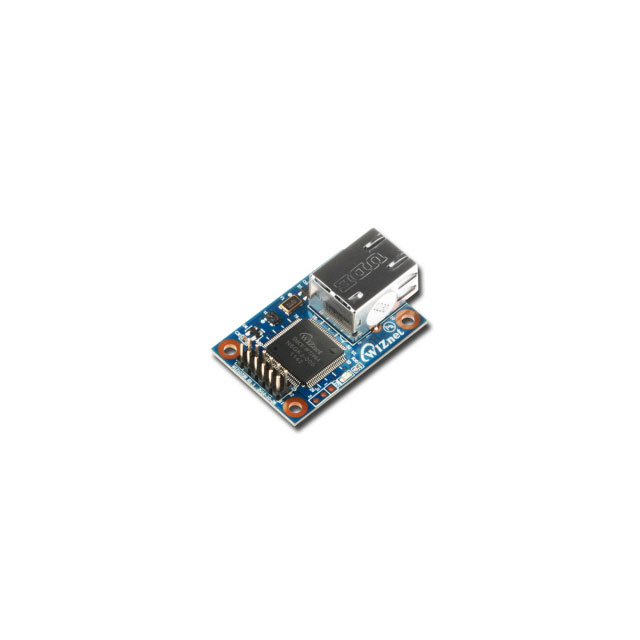

WIZ107SR-TTL

产品分类: 以太网芯片
厂牌: WIZNET
产品描述: Ethernet CTLR Single Chip 100Mbps 3.3V 12-Pin
供应商型号: S3-WIZ107SR-TTL
供应商: 海外现货
标准整包数: 1
WIZNET 以太网芯片 WIZ107SR-TTL

WIZ107SR-TTL概述

    WIZ107SR User Manual Overview
    1. Product Introduction
    The WIZ107SR is a compact-sized electronic module designed to convert serial protocol (RS-232) into TCP/IP protocol. It enables remote management and control of serial devices over a TCP/IP network. This device essentially acts as a protocol converter, transmitting serial data into TCP/IP format and vice versa, facilitating seamless integration between legacy serial systems and modern Ethernet-based networks.
    Key Applications:
    - Industrial automation
    - Remote monitoring and control systems
    - IoT (Internet of Things) devices
    - Networking and communications infrastructure
    2. Technical Parameters
    Below are the key technical specifications for the WIZ107SR:
    | Feature | Specification |

    | Communication | RS-232C (TXD, RXD, RTS, CTS) |
    | Speed | Up to 230Kbps |
    | Operating Voltage | DC 3.3V |
    | Current Consumption | Max 250mA |
    | Dimensions | 48mm x 30mm x 18mm |
    | Connector Type | 12-pin 2.54mm pitch header |
    | Supported Temperature | Operating: -40°C to 85°C; Storage: -40°C to 85°C |
    | Relative Humidity | 10% to 90% |
    The WIZ107SR uses the W7100A microcontroller, embedding a full suite of TCP/IP protocols including TCP, UDP, IP, ARP, ICMP, and IGMP. It also supports Auto-MDI/MDIX functionality for Ethernet connections.
    3. Product Features and Advantages
    The WIZ107SR stands out due to its:
    - Compact Size: Ideal for space-constrained environments.
    - User-Friendly Configuration Tool: Simplifies setup and customization.
    - Flexible Configuration Options: Supports both static and DHCP IP configurations.
    - Stability: Ensures reliable data communication with industrial-grade components.
    - Security: Features user password protection to secure configurations.
    Its compatibility with various Ethernet standards makes it an ideal choice for modernizing legacy systems.
    4. Application Case Studies and Usage Recommendations
    The WIZ107SR is widely used in scenarios requiring serial-to-Ethernet conversion. For example:
    - Industrial Automation Systems: Facilitates communication between PLCs (Programmable Logic Controllers) and remote monitoring stations.
    - Remote Monitoring Systems: Enables technicians to manage equipment without physical presence.
    Usage Tips:
    - Ensure proper grounding of the module to avoid noise interference.
    - Use CAT5 or higher quality cables for Ethernet connections to ensure optimal performance.
    - Regularly update firmware to take advantage of new features and security patches.
    5. Compatibility and Support
    The WIZ107SR is compatible with a variety of other devices and systems, thanks to its standard Ethernet interface and RS-232C serial communication. WIZnet provides ongoing technical support through its forum and direct email service at `sales@wiznet.co.kr`.
    Additionally, users can leverage the provided configuration tool to manage settings and troubleshoot issues effectively.
    6. Common Issues and Solutions
    Below are common problems users might encounter along with their solutions:
    1. Connection Issues: Verify Ethernet cable integrity and ensure correct IP configuration.
    - Solution: Replace the cable or configure IP settings manually.
    2. Firmware Upload Failures: Ensure the correct firmware version matches the hardware version.
    - Solution: Refer to Table 4 in the manual for compatible firmware versions.
    7. Conclusion and Recommendation
    The WIZ107SR is a highly efficient and versatile serial-to-Ethernet converter suitable for a wide range of applications. Its compact design, robust feature set, and ease of use make it an excellent choice for mod
