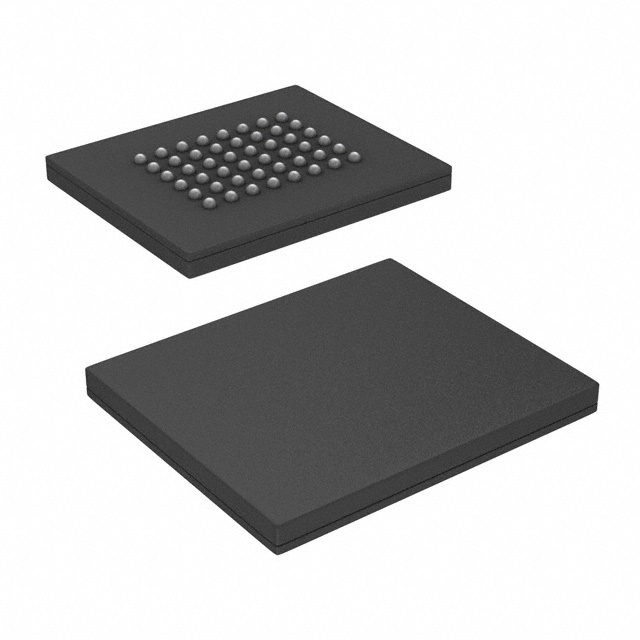

W29N01HVDINA TR

产品分类: 闪存(Flash)
厂牌: WINBOND/台湾华邦
产品描述: 128MB 128 M x 8 2.7V 35mA 3.6V 40MHz Parallel 8bit VFBGA-48 贴片安装,黏合安装
供应商型号: W29N01HVDINA TR VFBGA-48(6.5X8)
供应商: 期货订购
标准整包数: 3500
WINBOND/台湾华邦 闪存(Flash) W29N01HVDINA TR

W29N01HVDINA TR概述

    # W29N01HV NAND Flash Memory Technical Overview
    Product Introduction
    The W29N01HV is a high-performance NAND flash memory offering a total capacity of 1 Gigabit (1GB), designed specifically for applications where space, pin count, and power are critical constraints. This device serves as an ideal storage solution for various embedded systems, including code shadowing to RAM, solid-state storage, and media data storage such as voice, video, text, and images. With its 8-bit data bus width, it operates efficiently within a voltage range of 2.7V to 3.6V, making it suitable for a wide array of electronic devices.
    Technical Parameters
    Key Specifications:
    - Density: 1 Gigabit (1GB)
    - Voltage Range: 2.7V to 3.6V
    - Bus Width: 8-bit
    - Operating Temperature: Industrial grade (-40°C to 85°C)
    - Memory Architecture: Single-Level Cell (SLC) Technology
    - Page Size: 2,112 bytes (2,048 bytes main data + 64 bytes spare area)
    - Block Size: 64 pages per block (128K bytes main data + 4K bytes spare area)
    - Endurance: 100,000 erase/write cycles
    - Data Retention: 10 years
    - Read Performance: Random read = 25μs, Sequential read = 25ns
    - Program Time: Typical 250μs
    - Erase Time: Typical 2ms
    Electrical Characteristics:
    - Active Current Consumption: 25mA (typical at 3V)
    - Standby Current Consumption: 10μA (typical at 3V)
    - Control Signals: CLE, ALE, #CE, #RE, #WE, #WP, RY/#BY
    Product Features and Advantages
    The W29N01HV stands out due to its high endurance and efficient power management. Its ability to retain data for up to ten years ensures long-term reliability, while its endurance of 100,000 erase/write cycles makes it durable for frequently accessed data. The device's compact packaging options—48-pin TSOP1, 48-ball VFBGA, and 63-ball VFBGA—enhance its versatility in different form factors. Additionally, its standard NAND command set and additional support for Copy Back operations make it highly flexible and compatible with existing systems.
    Application Cases and Usage Recommendations
    The W29N01HV finds application in a variety of fields, including consumer electronics, industrial control systems, and automotive electronics. For example, in digital cameras or smartphones, it can be used for storing image files; in networking equipment, it can manage firmware updates efficiently. To optimize performance, users should ensure proper thermal management and adhere to recommended operating conditions. Regular maintenance checks for bad blocks can help maintain system integrity over time.
    Compatibility and Support
    The W29N01HV is fully compliant with standard NAND flash memory interfaces, facilitating easy integration into existing designs. It supports multiple package configurations, allowing designers flexibility in their hardware layouts. Manufacturers provide comprehensive technical support, including detailed datasheets and application notes, to assist developers throughout the design process.
    Common Issues and Solutions
    Some common issues include incorrect voltage levels leading to improper functioning or premature wear. Ensuring that the supply voltage stays within the specified range will mitigate these problems. Another issue might arise from insufficient error correction during writes; implementing robust ECC algorithms can address this effectively.
    Conclusion and Recommendation
    In conclusion, the W29N01HV offers superior performance characteristics combined with excellent reliability and cost-effectiveness. Its robust feature set, coupled with strong manufacturer support, positions it favorably among competitors in the market. Therefore, it is highly recommended for projects requiring reliable, high-density non-volatile storage solutions.

W29N01HVDINA TR参数

参数
最大工作供电电压 3.6V
最小工作供电电压 2.7V
组织 128 M x 8
数据总线宽度 8bit
接口类型 Parallel
存储容量 128MB
最大供电电流 35mA
最大时钟频率 40MHz
通用封装 VFBGA-48
安装方式 贴片安装,黏合安装
零件状态 在售
包装方式 卷带包装

W29N01HVDINA TR数据手册

厂牌 PDF简要描述 下载
WINBOND/台湾华邦 闪存(Flash) WINBOND/台湾华邦 W29N01HVDINA TR W29N01HVDINA TR数据手册

W29N01HVDINA TR封装设计

查看详情并下载
Symbol
Footprint
3D Model
价格梯度 中国香港交货 内地交货(含增值税)
3500+ ¥ 8.1216
库存: 35000
起订量: 3500 增量: 3500
交货地:
最小起订量为:3500
合计: ¥ 28425.6
直接购买
