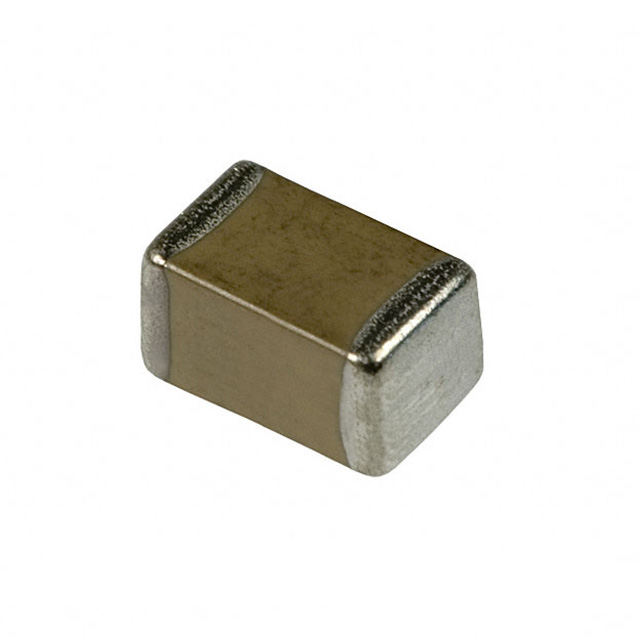

VJ0402A101FXXCW1BC

产品分类: 陶瓷电容
产品描述: 100pF ±1% C0G(NP0) 25V 0402 贴片安装 1mm(长度)*500μm(宽度)
供应商型号: 720-VJ0402A101FXXCW1BCDKR-ND
供应商: Digi-Key
标准整包数: 1
VISHAY INTERTECHNOLOGY 陶瓷电容 VJ0402A101FXXCW1BC

VJ0402A101FXXCW1BC概述

    Vishay Surface Mount Multilayer Ceramic Chip Capacitors (MLCCs) for Commodity Applications
    Product Introduction
    Vishay's VJ...W1BC Basic Commodity Series offers a comprehensive range of surface mount multilayer ceramic chip capacitors designed for commodity applications. These capacitors come in various case sizes ranging from 0402 to 1210, providing flexibility for different electronic designs. The series includes capacitors based on ultra-stable C0G (NP0) dielectrics, high-capacitance options in X5R, X7R, and Y5V types. They are suitable for applications requiring high-frequency performance and are equipped with nickel-barrier terminations and noble metal electrode systems.
    The series supports multiple electrode configurations, including NME (Noble Metal Electrode) and BME (Base Metal Electrode) systems, making it versatile for different applications. These capacitors are widely used in consumer electronics, telecommunications, data processing, and mobile devices due to their excellent reliability and performance.
    Technical Parameters
    Below are the key technical specifications extracted from the product manual:
    | Parameter | Specifications |

    | Body Sizes | 0402, 0603, 0805, 1206, 1210 |
    | Dielectric Types | C0G (NP0), X5R, X7R, Y5V |
    | Operating Temperature Range | C0G (NP0): -55°C to +125°C
    X5R: -55°C to +85°C
    X7R: -55°C to +125°C
    Y5V: -25°C to +85°C |
    | Capacitance Range | C0G (NP0): 0.5 pF to 39 nF
    X5R: 47 nF to 220 μF
    X7R: 100 pF to 47 μF
    Y5V: 10 nF to 100 μF |
    | Voltage Range | C0G (NP0): 10 VDC to 100 VDC
    X5R: 6.3 VDC to 50 VDC
    X7R: 10 VDC to 100 VDC
    Y5V: 6.3 VDC to 100 VDC |
    | Temperature Coefficient of Capacitance (TCC) | C0G (NP0): ± 0 ppm/°C ± 30 ppm/°C (from -55°C to +125°C)
    X5R: ± 15% (from -55°C to +85°C)
    X7R: ± 15% (from -55°C to +125°C)
    Y5V: +30% / -80% (from -25°C to +85°C) |
    | Insulation Resistance (IR) | ≥ 10 GΩ or Rx ≥ 500 Ω·F (whichever is less) |
    | Capacitance Tolerance | C0G (NP0): ± 0.10 pF to ± 5%
    X5R/X7R: ± 5%, ± 10%, ± 20%
    Y5V: ± 20%, -20% / +80% |
    | Dielectric Strength | Up to 250% of rated voltage |
    Product Features and Advantages
    The VJ...W1BC series offers several unique features that make it a strong contender in the market:
    - Wide Operating Temperature Range: Supports harsh environments (-55°C to +125°C).
    - Ultra-Stable Dielectric: C0G (NP0) ensures consistent performance over time.
    - High Capacitance Options: Offers capacitors up to 220 μF for advanced applications.
    - Advanced Termination: Nickel-barrier with 100% tin terminations provides excellent solderability.
    - Environmentally Friendly: Compliance with industry standards (Material categorization).
    Application Cases and Use Recommendations
    The VJ...W1BC series is ideal for a variety of applications, including:
    - Consumer Electronics: Used in portable devices like smartphones and tablets where space and cost are critical.
    - Telecommunications: Suitable for high-frequency circuits and RF applications.
    - Data Processing: Utilized in servers and networking equipment requiring reliable performance under varying temperatures.
    Use Suggestions:
    1. For applications requiring precise capacitance, such as timing circuits, prefer C0G (NP0) types.
    2. In high-temperature environments, select capacitors with X7R or C0G (NP0) dielectrics for stability.
    3. Consider using BME electrodes for cost-sensitive appl

VJ0402A101FXXCW1BC参数

参数
电容值 100pF
容差 ±1%
温度系数 C0G(NP0)
额定电压 25V
长*宽*高 1mm(长度)*500μm(宽度)
通用封装 0402
安装方式 贴片安装
应用等级 通用级
零件状态 在售
包装方式 卷带包装
