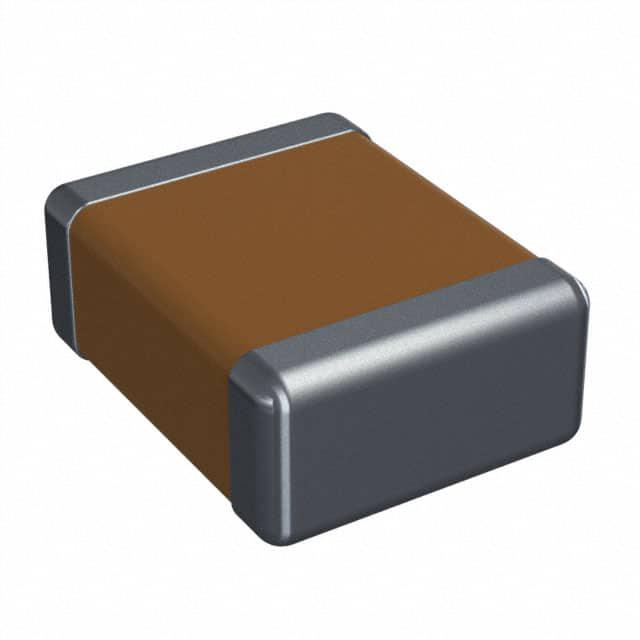

CDR33BX223BKUSAJ

产品分类: 陶瓷电容
产品描述: 22nF ±10% 100V 1210 贴片安装 3.2mm(长度)*2.5mm(宽度)
供应商型号: 77-CDR33BX223BKUSAJ
供应商: Mouser
标准整包数: 1
VISHAY INTERTECHNOLOGY 陶瓷电容 CDR33BX223BKUSAJ

CDR33BX223BKUSAJ概述

    Vishay Vitramon CDR-MIL-PRF-55681: Military-Qualified Surface Mount Multilayer Ceramic Capacitors
    Product Introduction
    The Vishay Vitramon CDR-MIL-PRF-55681 series represents high-reliability surface mount multilayer ceramic chip capacitors designed specifically for military-grade applications. These capacitors are MIL-PRF-55681 qualified, ensuring compliance with stringent military standards, and are built using a reliable Noble Metal Electrode (NME) system with a wet build process. The product lineup offers capacitance values ranging from 1.0 pF to 470 nF across various dielectric styles, making them suitable for avionic systems, satellite communications, sonar systems, and missile electronics.
    Technical Parameters
    The key specifications of the Vishay Vitramon CDR-MIL-PRF-55681 capacitors include:
    - Capacitance Range: 1.0 pF to 470 nF.
    - Voltage Ratings: 6.3 VDC to 100 VDC.
    - Temperature Coefficient of Capacitance (TCC):
    - BP: ±30 ppm/°C.
    - BX: ±15% at 0 VDC; +15%, -25% at rated VDC.
    - BR: ±15% at 0 VDC; +15%, -40% at rated VDC.
    - Dissipation Factor (DF):
    - BP: 0.15% max.
    - BX: 2.50% max.
    - BR: ≤3.5% for ≤25 VDC; ≤2.5% for >25 VDC.
    - Operating Temperature: -55 °C to +125 °C.
    - Aging Rate: 0% per decade for BP capacitors; 1% per decade for BX and BR capacitors.
    - Insulation Resistance (IR): ≥100,000 MΩ or ≥1000 µF, whichever is less.
    - Dielectric Strength Test: Complies with method 103 of EIA-198-2-E.
    Product Features and Advantages
    The Vishay Vitramon CDR-MIL-PRF-55681 series stands out due to its military qualification, ensuring compliance with MIL-PRF-55681 standards. Key features include:
    - High Reliability: Tested under harsh conditions per MIL-PRF-55681 standards.
    - Material Compliance: Material categorization is provided for RoHS compliance, with options for Pb-free terminations.
    - Flexible Termination Options: Supports tin/lead and Pb-free terminations.
    - Wide Temperature Range: Operates reliably across -55 °C to +125 °C.
    - Versatile Applications: Suitable for critical systems such as avionics, geospatial systems, and global positioning systems.
    Application Cases and Usage Recommendations
    These capacitors are ideal for use in mission-critical applications requiring high reliability and temperature stability. Examples include:
    - Avionic Systems: Ensuring stable operation in aircraft control systems.
    - Sonar Systems: Providing accurate signal conditioning in underwater communication devices.
    - Satellite Systems: Supporting long-term operations in space environments.
    Usage Suggestions:
    - Always ensure that the capacitor's voltage rating is not exceeded to maintain optimal performance.
    - Consider the aging rate when selecting the capacitor for time-sensitive applications.
    - Ensure proper PCB layout to minimize parasitic effects and optimize performance.
    Compatibility and Support
    The Vishay Vitramon CDR-MIL-PRF-55681 series is compatible with standard military procurement practices, offering a range of termination codes to meet specific requirements. Vishay provides comprehensive technical support via their dedicated email channel (mlcc@vishay.com), ensuring users can address any design or operational concerns effectively.
    Common Issues and Solutions
    | Problem | Solution |

    | Exceeding voltage ratings | Always operate within specified voltage limits to prevent degradation. |
    | Poor soldering quality | Ensure proper soldering techniques and use Pb-free solder where required. |
    | Performance deviation | Verify component tolerance matches application requirements. |
    Conclusion and Recommendation
    The Vishay Vitramon CDR-MIL-PRF-55681 series is an exceptional choice for high-reliability applications r

CDR33BX223BKUSAJ参数

参数
电容值 22nF
容差 ±10%
温度系数 -
额定电压 100V
长*宽*高 3.2mm(长度)*2.5mm(宽度)
通用封装 1210
安装方式 贴片安装
应用等级 通用级
零件状态 在售
包装方式 卷带包装
