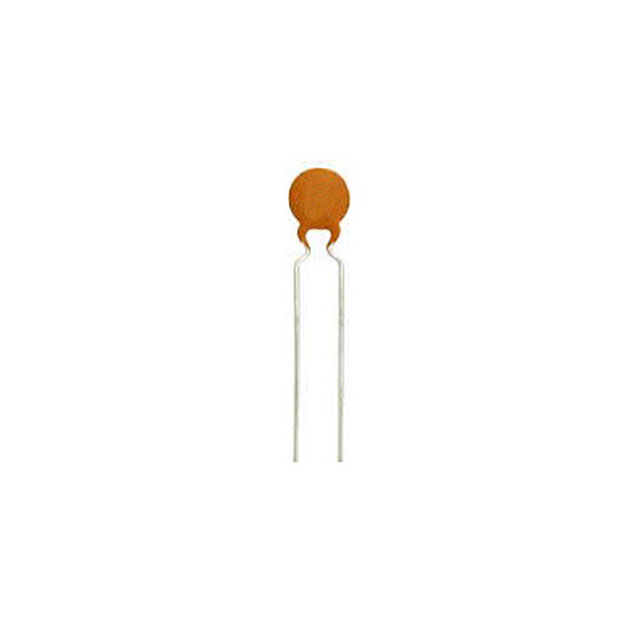

D221K20Y5PH63J5R

产品分类: 陶瓷电容
产品描述: 220pF ±10% Y5P 100V 通孔安装 5mm(长度)*3.5mm(宽度)
供应商型号: N-D221K20Y5PH63J5R
供应商: 云汉优选
标准整包数: 1
VISHAY INTERTECHNOLOGY 陶瓷电容 D221K20Y5PH63J5R

D221K20Y5PH63J5R概述

    Vishay BCcomponents D Series Ceramic Single-Layer DC Disc Capacitors
    Product Introduction
    The D Series ceramic single-layer DC disc capacitors from Vishay BCcomponents are designed for general-purpose applications requiring high reliability and performance across various voltage levels. These capacitors come in three distinct classes—Class 1, Class 2, and Class 3—with varying temperature characteristics suitable for different operating conditions. They are available in a wide range of capacitance values from 6.8 pF to 47 nF, providing options for diverse electronic designs.
    These capacitors feature excellent stability over temperature ranges, making them ideal for temperature compensation, coupling, decoupling, and bypassing circuits. Their robust design ensures they meet stringent industrial standards, ensuring longevity and performance consistency in demanding environments.
    Technical Parameters
    The D Series capacitors provide precise specifications tailored to specific application needs:
    - Capacitance Range: 6.8 pF to 47 nF.
    - Voltage Ratings: 50 VDC, 100 VDC, and 500 VDC.
    - Tolerance: Available in ±0.25 pF, ±2%, ±5%, ±10%, ±20%, and +80% / -20%.
    - Temperature Characteristics:
    - Class 1: SL0 and N750, stable temperature compensation.
    - Class 2: Y5P, Z5U, X7R, X5F, exhibiting moderate temperature sensitivity.
    - Class 3: Y5V and Z5V, suitable for less critical applications with higher temperature tolerances.
    - Operating Temperature Range:
    - Class 1: -55°C to +125°C.
    - Class 2: -30°C to +125°C.
    - Insulation Resistance: Minimum 10 GΩ at rated voltage.
    - Dissipation Factor:
    - Class 1: ≤0.1% at 1 MHz (C≥30 pF), otherwise calculated using a formula.
    - Class 2: ≤2.5% at 1 kHz.
    - Class 3: ≤5% at 1 kHz.

    Product Features and Advantages
    The D Series capacitors stand out due to their compact size, high capacitance density, and long-term reliability. Key features include:
    - Compact Size with High Performance: Achieving significant capacitance values in small packages reduces board space requirements and enhances system miniaturization.
    - Reliability: Designed to withstand harsh environmental conditions, these capacitors ensure consistent operation over time.
    - Flexible Mounting Options: Available with crimp and straight lead configurations to suit diverse PCB mounting requirements.
    - Wide Voltage Support: With ratings up to 500 VDC, these capacitors cater to a broad spectrum of power electronics applications.
    These advantages make the D Series an excellent choice for engineers aiming to optimize circuit designs while maintaining high performance and reliability.
    Application Case Studies and Usage Recommendations
    The D Series capacitors find extensive applications in modern electronics, particularly in temperature compensation and signal filtering tasks. Below are some common use cases:
    - Temperature Compensation: Ideal for precision circuits where stability across temperatures is crucial.
    - Coupling and Decoupling: Used in power supplies and digital circuits to smooth fluctuations and ensure clean signals.
    - Bypassing: Commonly employed in RF circuits to block DC components while allowing AC signals to pass through.
    Usage Suggestions:
    - Ensure correct tolerance selection based on the application's required precision.
    - Match the capacitor’s voltage rating with the circuit's maximum expected voltage to avoid failures.
    - Consider thermal management practices if operating near the upper end of the temperature range to maintain optimal performance.
    Compatibility and Support
    The D Series capacitors exhibit strong compatibility with standard electronic manufacturing processes and tools. They support both bulk and tape-and-reel packaging methods, facilitating integration into automated assembly lines. Vishay provides comprehensive documentation and technical support,

D221K20Y5PH63J5R参数

参数
电容值 220pF
容差 ±10%
温度系数 Y5P
额定电压 100V
长*宽*高 5mm(长度)*3.5mm(宽度)
安装方式 通孔安装
应用等级 通用级
零件状态 在售
包装方式 散装
