FVT05006E25R00JE

产品分类: 其它固定电阻
产品描述: ±5% ±260ppm/℃ 25Ω 50W 支架安装 101.6mm(长度)
供应商型号: FVT50-25-ND
供应商: Digi-Key
标准整包数: 1
VISHAY INTERTECHNOLOGY 其它固定电阻 FVT05006E25R00JE

FVT05006E25R00JE概述

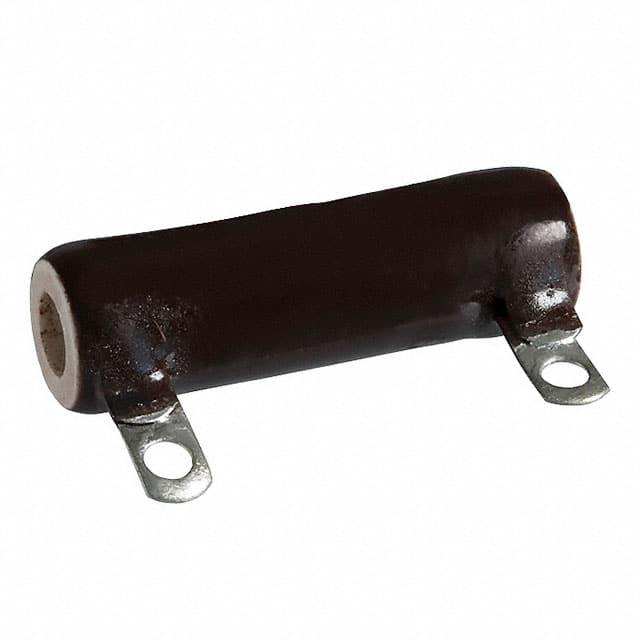

    Vishay Wirewound Resistor: Industrial Power, Vitreous Coated, Fixed Tubular
    Product Introduction
    The Vishay Wirewound Resistor is a high-performance industrial resistor designed for demanding applications requiring precise resistance control and durability under extreme conditions. The resistor features a vitreous enamel coating, ensuring superior thermal and chemical resistance. Its primary function is to provide stable resistance values in environments where temperature fluctuations and mechanical stress are common. These resistors are widely used in power electronics, motor control systems, renewable energy solutions, industrial automation, and telecommunications.
    Key benefits include:
    - Tight resistance tolerances for values above 1Ω.
    - Excellent long-term stability with minimal resistance drift (<3%).
    - Robust construction for long service life.
    Technical Parameters
    Below are the critical technical specifications of the Vishay Wirewound Resistor:
    | Model | Power Rating (W) | Resistance Range (Ω) | Weight (g) |
    ||
    | FVT005 | 5 | 1.0 to 20.5K | 4.60 |
    | FVT025 | 25 | 1.0 to 115K | 20.7 |
    | FVT050 | 50 | 1.0 to 112K | 42.1 |
    | FVT100 | 100 | 1.0 to 260K | 91.4 |
    Additional electrical characteristics include:
    - Temperature coefficient: ±260 ppm/°C for resistances ≥ 20Ω; ±400 ppm/°C for resistances < 20Ω.
    - Operating temperature range: -55°C to +350°C.
    - Maximum altitude: Up to 10,000 feet above sea level.
    - Surge windings available for additional protection.
    - Maximum working voltage determined by P × R (where P is power rating and R is resistance).
    Product Features and Advantages
    The Vishay Wirewound Resistor offers several distinct advantages:
    1. High-Temperature Stability: The vitreous enamel coating ensures resistance remains constant across a wide temperature spectrum.
    2. Complete Welded Construction: Ensures mechanical durability and prevents loose connections.
    3. Customizable Options: Non-inductive models are available with an Ayrton-Perry winding configuration for enhanced precision in sensitive applications.
    4. Compact Design: Optimized for high-power applications without excessive bulk.
    5. Excellent Cost-to-Performance Ratio: Offers reliable performance at competitive pricing, making it ideal for cost-sensitive projects.
    Application Cases and Usage Suggestions
    The Vishay Wirewound Resistor is versatile and suited for a variety of applications:
    1. Power Electronics: Ideal for use in DC-to-DC converters, inverters, and variable frequency drives due to its high power handling capability.
    2. Motor Control: Provides robust resistance in harsh motor control environments where temperature cycling is frequent.
    3. Renewable Energy Systems: Suitable for solar panel string inverters and wind turbine control systems.
    Usage Recommendations:
    - Ensure proper thermal management to prevent overheating during prolonged use.
    - For high-frequency applications, consider using non-inductive models to reduce unwanted inductance effects.
    - Regularly inspect terminal connections to avoid potential failures caused by loose terminations.
    Compatibility and Support
    The Vishay Wirewound Resistor is compatible with standard mounting brackets, allowing seamless integration into existing systems. These include 100-style horizontal high brackets, 200-style push-in brackets, and 300-style thru-bolt brackets. Additionally, Vishay provides comprehensive support through technical assistance via email (`ww2dresistors@vishay.com`) and updates to product documentation.
    Common Issues and Solutions
    Below are some common problems users m

FVT05006E25R00JE参数

参数
额定功率 50W
电阻个数 -
引脚数量 -
电阻值 25Ω
温度系数 ±260ppm/℃
精度 ±5%
长*宽*高 101.6mm(长度)
安装方式 支架安装
零件状态 在售
包装方式 散装

FVT05006E25R00JE厂商介绍

Vishay Intertechnology是一家全球领先的电子元件制造商,专注于研发、制造和销售各种高性能电子元件。公司成立于1962年,总部位于美国宾夕法尼亚州的马尔文,在全球拥有多个生产基地和研发中心。

Vishay Intertechnology的产品主要分为以下几类:
1. 分立元件:包括二极管、晶体管、MOSFET等。
2. 被动元件:包括电阻、电容器、电感等。
3. 传感器:包括温度、压力、湿度等传感器。
4. 保护元件:包括保险丝、浪涌保护器等。

这些产品广泛应用于汽车、工业、医疗、通信、消费电子等领域。Vishay Intertechnology的优势在于:
1. 技术创新:公司不断研发新技术和新产品,以满足市场需求。
2. 质量控制:公司严格遵循ISO等国际质量标准,确保产品质量。
3. 客户服务:公司提供全方位的技术支持和定制化服务,以满足客户的个性化需求。
4. 全球布局:公司在全球设有多个生产基地和研发中心,可以快速响应客户需求。

FVT05006E25R00JE数据手册

厂牌 PDF简要描述 下载
VISHAY INTERTECHNOLOGY 其它固定电阻 VISHAY INTERTECHNOLOGY FVT05006E25R00JE FVT05006E25R00JE数据手册

FVT05006E25R00JE封装设计

查看详情并下载
Symbol
Footprint
3D Model
